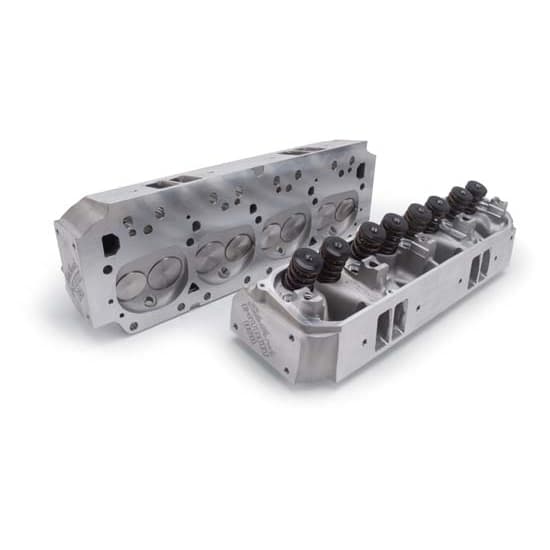

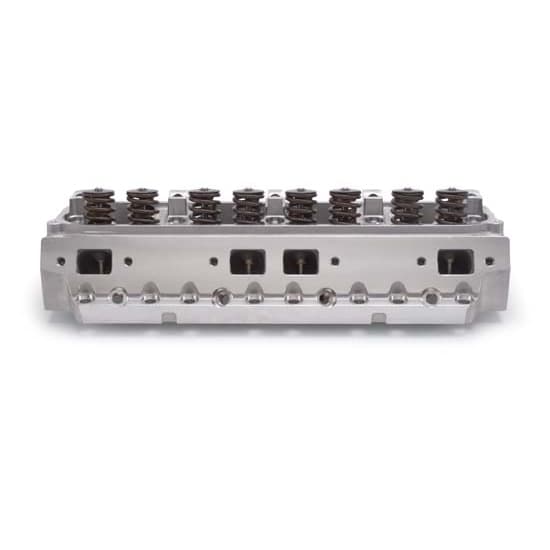

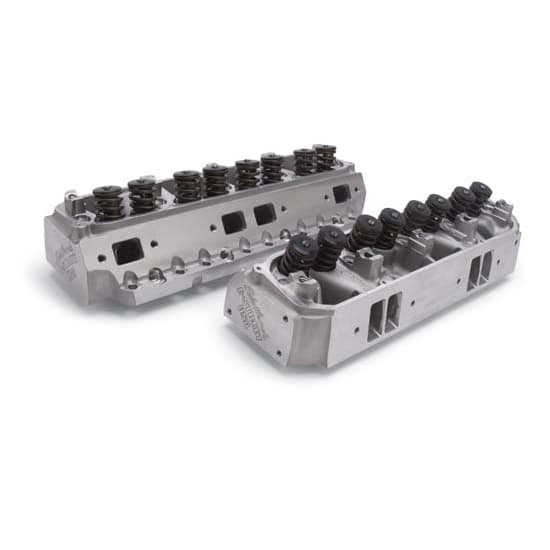

Edelbrock 5093 E-Street Cylinder Head, Big Block Mopar
- The Edelbrock E-Street cylinder heads offer American made quality and affordable performance.
- E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range.
See More
$2,134.95
pair
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 4th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
383, 400, 413, 426 Wedge, 440, Aluminum, Natural
- The Edelbrock E-Street cylinder heads offer American made quality and affordable performance.
- E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range.
- The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency.
- For use on pre-pollution controlled vehicles only.
See more details
Key Specs
| Cylinder Head Style | Assembled |
| Material Type | Aluminum |
| Finish | Natural |
| Combustion Chamber Volume | 84cc |
| Intake Runner Volume | 210cc |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 5093 Details
Edelbrock 5093 Details
The Edelbrock #5093 E-Street cylinder heads are designed for use with 1961-1979 Chrysler 361-440 c.i.d. Wedge engine applications.
- The Edelbrock E-Street cylinder heads offer American made quality and affordable performance.
- E-Street cylinder heads feature as-cast ports and are designed for entry-level street performance applications operating in the idle-to-5500 rpm range.
- The modern combustion chamber designs improve the combustion process and larger than stock intake and exhaust ports move more air through your engine for improve efficiency.
- For use on pre-pollution controlled vehicles only.
Guides & Documents
Edelbrock 5093 Specifications
Edelbrock 5093 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 5093 |
| Brand | Edelbrock |
| Cylinder Head Style | Assembled |
| Material Type | Aluminum |
| Finish | Natural |
| Combustion Chamber Volume | 84cc |
| Intake Runner Volume | 210cc |
| GENERAL | |
| Exhaust Runner Volume | 70cc |
| Combustion Chamber Volume Range | 80cc - 89cc |
| Intake Runner Volume Range | 210cc - 219cc |
| Exhaust Runner Volume Range | 70cc - 79cc |
| CNC-Machined Runners | No |
| CNC-Machined Combustion Chamber | No |
| Spark Plug Style | Straight |
| Intake Port Shape | Rectangle |
| Intake Port Location | Standard |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Standard |
| Intake Valve Diameter | 2.14" |
| Intake Valves Included | Yes |
| Intake Valve Angle | 15 ° |
| Exhaust Valve Diameter | 1.81" |
| Exhaust Valves Included | Yes |
| Exhaust Valve Angle | 15 ° |
| Valve Spring Included | Yes |
| Spring Diameter | 1.55" |
| Damper Spring Included | Yes |
| Number of Springs Per Valve | Single |
| Maximum Lift | 0.6" |
| Machined for O-Ring | No |
| Valve Seat Machine Style | 3-angle |
| Valve Seats Machined | Yes |
| Valve Seat Material | Powdered Metal |
| Valve Stem Seals Included | Yes |
| Valve Stem Seal Type | Umbrella |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese Bronze |
| Locks Included | Yes |
| Lock Style | 7 Degree |
| Retainers Included | Yes |
| Retainer Material | Steel |
| Guideplates Included | No |
| Rocker Arms Included | No |
| Rocker Arm Studs Included | No |
| Rocker Arm Nuts Included | No |
| Oiling Style | Through Head |
| Heat Crossover | No |
| Steam Holes Drilled | No |
| Accessory Bolt Holes Drilled | Yes |
| Valve Cover Mounting Style | Perimeter Bolt |
| Notes | Designed for use with hydraulic flat tappet camshafts. The valve and seat combination is not recommended to be used with a hydraulic roller camshaft. |
| Sold in Quantity | Each |
| GTIN Code | 085347050932 |
