#3255087

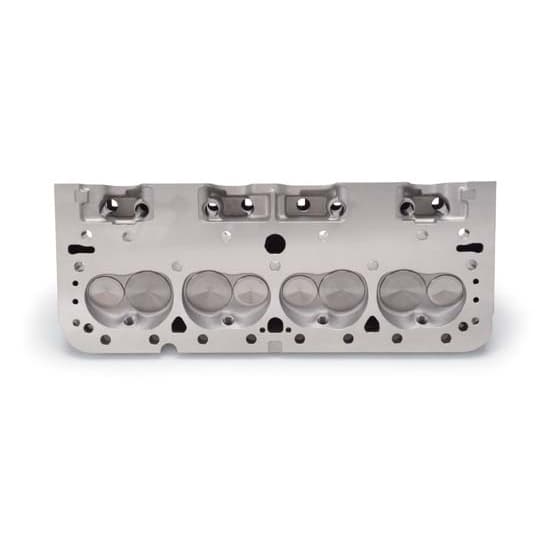

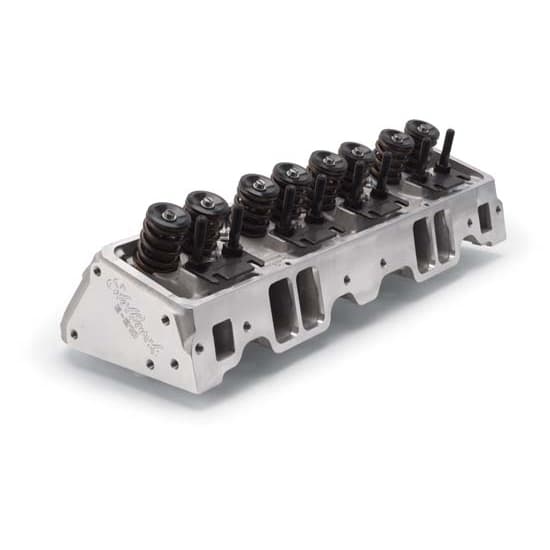

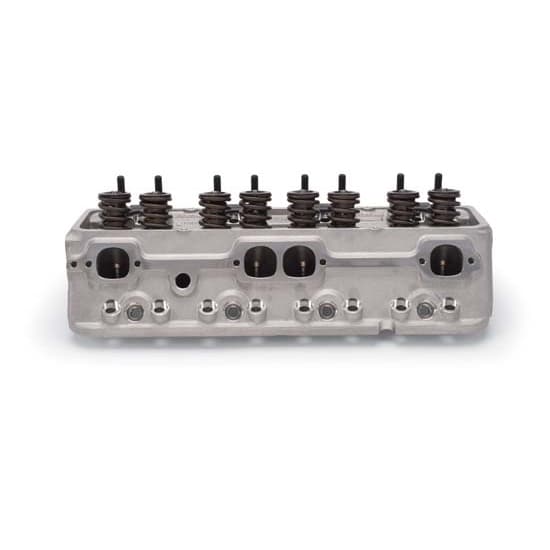

Edelbrock 5087 E-210 Cylinder Head, Aluminum, Small Block Chevy
- The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line.
- They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines.
See More
$1,529.95
pair
Factory Shipped
$1,753.95
Save $224.00
This part will be shipped by the manufacturer. We estimate this item will ship on or before April 12th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy Small Block V8, Assembled Cylinder Head Style
- The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line.
- They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines.
- The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
See more details
Key Specs
Cylinder Head Style | Assembled |
Material Type | Aluminum |
Finish | Natural |
Combustion Chamber Volume | 64cc |
Intake Runner Volume | 210cc |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 5087 Details
Edelbrock 5087 Details
The Edelbrock #5087 E-210 Cylinder heads are designed for use with 1955-1986 Small-Block Chevy applications.
- The Edelbrock E-Series cylinder heads are a step up in affordable performance from our E-Street line.
- They feature larger runners for increased airflow, revised exhaust ports and larger diameter springs for higher lift camshafts, making them ideal for a spec series racer and larger displacement engines.
- The Edelbrock #5027 E-Series Cylinder heads also have as-cast ports and maintain the stock exhaust port location, making them compatible with OEM headers and hardware.
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Edelbrock 5087 Specifications
Edelbrock 5087 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 5087 |
Brand | Edelbrock |
Cylinder Head Style | Assembled |
Material Type | Aluminum |
Finish | Natural |
Combustion Chamber Volume | 64cc |
Intake Runner Volume | 210cc |
GENERAL | |
Exhaust Runner Volume | 75cc |
Combustion Chamber Volume Range | 60cc - 69cc |
Intake Runner Volume Range | 210cc - 219cc |
Exhaust Runner Volume Range | 70cc - 79cc |
CNC-Machined Runners | No |
CNC-Machined Combustion Chamber | No |
Spark Plug Style | Straight |
Intake Port Shape | Rectangle |
Intake Port Location | Standard |
Exhaust Port Shape | Square |
Exhaust Port Location | Standard |
Intake Valve Diameter | 2.08" |
Intake Valves Included | Yes |
Intake Valve Angle | 23 ° |
Exhaust Valve Diameter | 1.6" |
Exhaust Valves Included | Yes |
Exhaust Valve Angle | 23 ° |
Valve Spring Included | Yes |
Spring Diameter | 1.55" |
Damper Spring Included | Yes |
Number of Springs Per Valve | Dual |
Maximum Lift | 0.65" |
Machined for O-Ring | No |
Valve Seat Machine Style | 3-angle |
Valve Seats Machined | Yes |
Valve Seat Material | Powdered Metal |
Valve Stem Seals Included | Yes |
Valve Stem Seal Type | Umbrella |
Valve Guides Included | Yes |
Valve Guide Material | Manganese Bronze |
Locks Included | Yes |
Lock Style | 7 Degree |
Retainers Included | Yes |
Retainer Material | Steel |
Guideplates Included | Yes |
Guideplate Pushrod Size | 0.312" |
Rocker Arms Included | No |
Rocker Arm Studs Included | Yes |
Rocker Arm Nuts Included | No |
Oiling Style | Through Pushrod |
Heat Crossover | No |
Steam Holes Drilled | No |
Accessory Bolt Holes Drilled | Yes |
Valve Cover Mounting Style | Perimeter Bolt |
Notes | Equipped with valve springs for mechanical flat tappet and hydraulic roller camshaft applications. Champion RC12YC or equivalent 14mm x 3/4 reach spark plugs with flat gasket seat. Hardened pushrods required. |
Sold in Quantity | Each |
GTIN Code | 085347050871 |
