#3255028

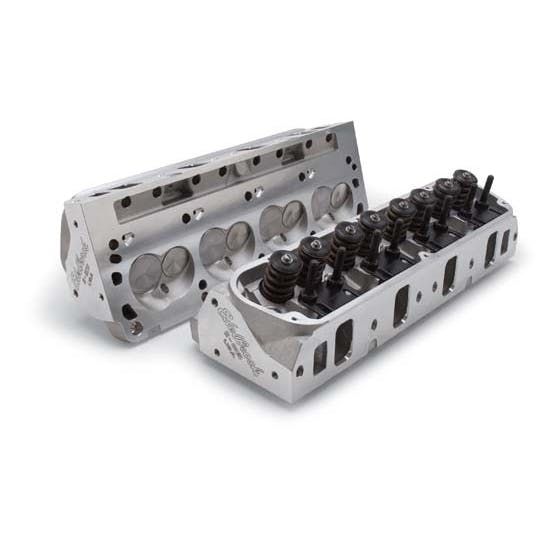

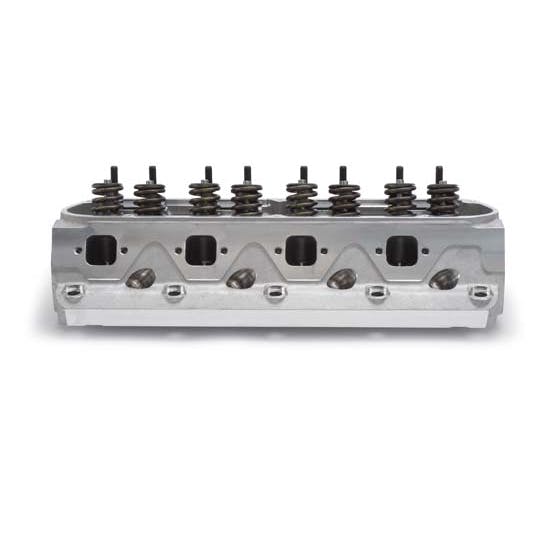

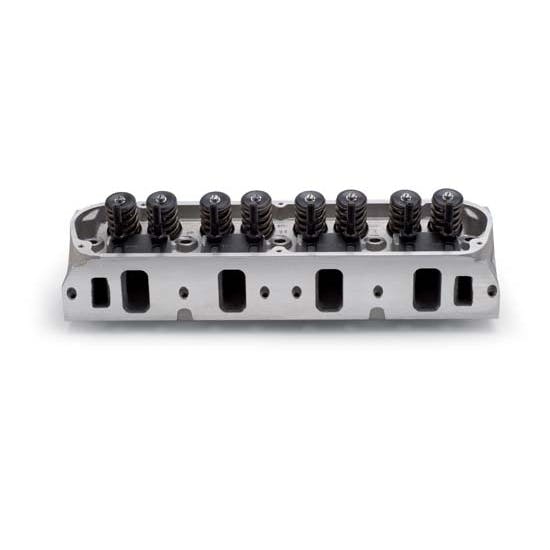

Edelbrock 5028 E-205 Cylinder Head, Small Block Ford, Assembled
$1,606.95
pair
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 12th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
289, 302, 351W, Assembled Cylinder Head Style, Aluminum
See more details
Key Specs
Cylinder Head Style | Assembled |
Material Type | Aluminum |
Finish | Natural |
Combustion Chamber Volume | 60cc |
Intake Runner Volume | 205cc |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
The new E-205 cylinder head for small-block Ford 289, 302 and 351W engines provides race-level performance while maintaining full compatibility with OEM equipment. It features larger runners for increased airflow and revised exhaust ports and larger diameter springs for higher lift camshafts making it ideal for a spec series racer and larger displacement engines. The exhaust port flange is in the stock location to allow for the use of off-the0shelf headers and hardware while the enlarged valves and ports support the power needed to compete at engine speeds of up to 6500 rpm. The E-205 cylinder head is capable of supporting more than 500 naturally aspirated horsepower and even more in forced induction applications.
- Entry Level Street Performance Upgrade
- A356 Aluminum
- Sold As A Pair
- Edelbrock Quality And Performance
- Affordable Price
- Made In U.S.A.
Charts
Guides & Documents
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Specifications
Specifications
KEY SPECS | |
---|---|
Brand | Edelbrock |
Cylinder Head Style | Assembled |
Material Type | Aluminum |
Finish | Natural |
Combustion Chamber Volume | 60cc |
Intake Runner Volume | 205cc |
GENERAL | |
Speedway Motors Catalog Part # | 325-5028 |
Exhaust Runner Volume | 62cc |
Combustion Chamber Volume Range | 60cc - 69cc |
Intake Runner Volume Range | 200cc - 209cc |
Exhaust Runner Volume Range | 60cc - 69cc |

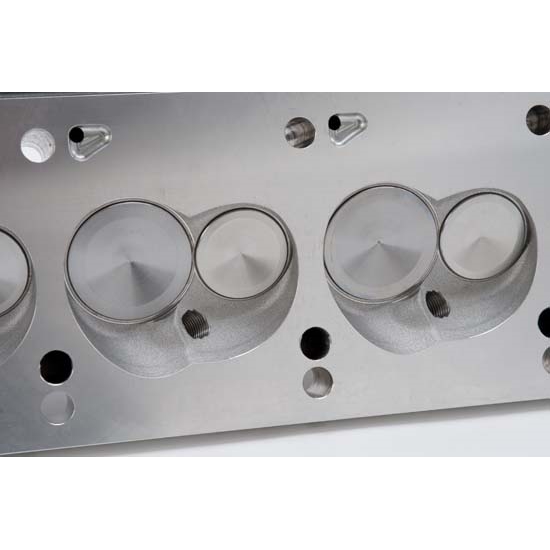

Combustion Chamber Style | Heart |
CNC-Machined Runners | No |
CNC-Machined Combustion Chamber | No |
Spark Plug Style | Straight |
Intake Port Shape | Rectangle |
Intake Port Location | Standard |
Exhaust Port Shape | Square |
Exhaust Port Location | Standard |
Intake Valve Diameter | 2.08" |
Intake Valves Included | Yes |
Intake Valve Angle | 20 |
Exhaust Valve Diameter | 1.6" |
Exhaust Valves Included | Yes |
Exhaust Valve Angle | 20 |
Valve Spring Included | Yes |
Spring Diameter | 1.46" |
Damper Spring Included | Yes |
Number of Springs Per Valve | Single |
Maximum Lift | 0.575" |
Machined for O-Ring | No |
Valve Seat Machine Style | 3-angle |
Valve Seats Machined | Yes |
Valve Seat Material | Powdered Metal |
Valve Stem Seals Included | Yes |
Valve Stem Seal Type | Positive Stop |
Valve Guides Included | Yes |
Valve Guide Material | Manganese Bronze |
Locks Included | Yes |
Lock Style | 7 Degree |
Retainers Included | Yes |
Retainer Material | Steel |
Guideplates Included | Yes |
Guideplate Pushrod Size | 0.312" |
Rocker Arms Included | No |
Rocker Arm Studs Included | Yes |
Rocker Arm Nuts Included | No |
Oiling Style | Through Pushrod |
Heat Crossover | No |
Steam Holes Drilled | No |
Accessory Bolt Holes Drilled | Yes |
Valve Cover Mounting Style | Perimeter Bolt |
Notes | Uses 14mm spark plugs with 3/4" reach, and flat gasket seals |
Sold in Quantity | Pair |
GTIN Code | 085347050284 |
