Product Summary

305, 350, Hydraulic Flat Tappet Camshaft Type

  • This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine.
  • The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm.
  • This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s.
  • You can expect a major improvement in throttle response and torque.

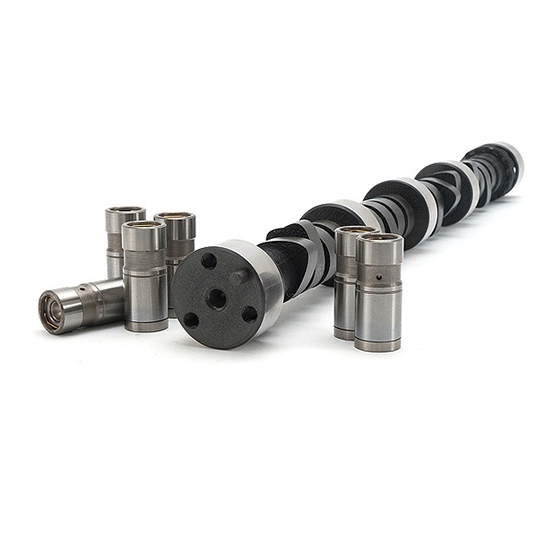

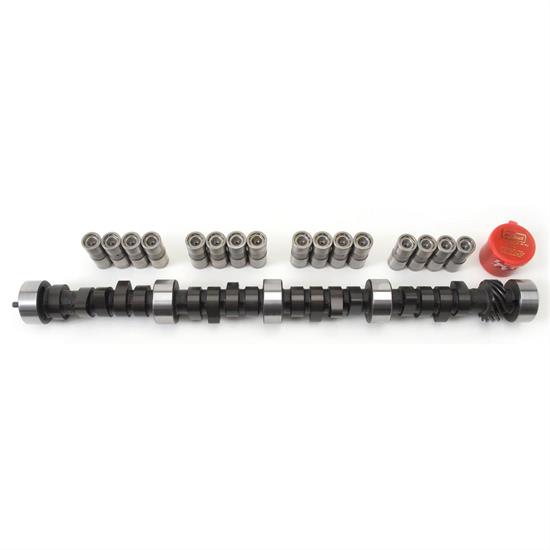

  • All camshafts include flat tappet lifters, assembly lube and instructions.

Key Specs

D-215-19
MFG. Part #3702
BrandEdelbrock
CARB EO#

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Edelbrock part #3702 Performer-Plus camshaft is designed for small-block Chevy 305-350 T.B.I & LG-4 V-8 applications.

  • This Edelbrock cam kit produced 245 ft-lbs. of torque when used with #3701 intake and stock iron cylinder heads on a 350 engine.
  • The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm.
  • This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s.
  • You can expect a major improvement in throttle response and torque.
  • All camshafts include flat tappet lifters, assembly lube and instructions.

Camshaft Specifications: - Duration @ .050 Intake: 194 degrees - Duration @ .050 Exhaust: 214 degrees - Lift @ Valve Intake: .398" - Lift @ Valve Exhaust: .442" - Lobe Separation: 112 Degrees - Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 16"

Charts

Specifications

D-215-19
KEY SPECS
MFG. Part #3702
BrandEdelbrock
CARB EO#
GENERAL
Camshaft TypeHydraulic Flat Tappet
Intake Duration244
Exhaust Duration264
RPM RangeIdle-5,500
Lobe Separation112 °
Intake Duration (.050" Lift)194
Exhaust Duration (.050" Lift)214
GTIN Code085347037025
Intake Valve Lift w/ Rocker Arm Ratio0.398"
Exhaust Valve Lift w/ Rocker Arm Ratio0.442"
Computer Controlled CompatibleYes
External Ignition Box RequiredYes
Valve Spring RequiredYes
Valve Springs RequiredYes
Valve Spring IncludedNo
Lifter TypeHydraulic Flat Tappet
Lifters IncludedYes
Retainers IncludedNo
Locks IncludedNo
Valve Stem Seals IncludedNo
Timing Chain and Gears IncludedNo
Assembly Lubricant IncludedYes
Pushrods IncludedNo
Rocker Arms IncludedNo
Gaskets IncludedNo
Sold in QuantityKit
