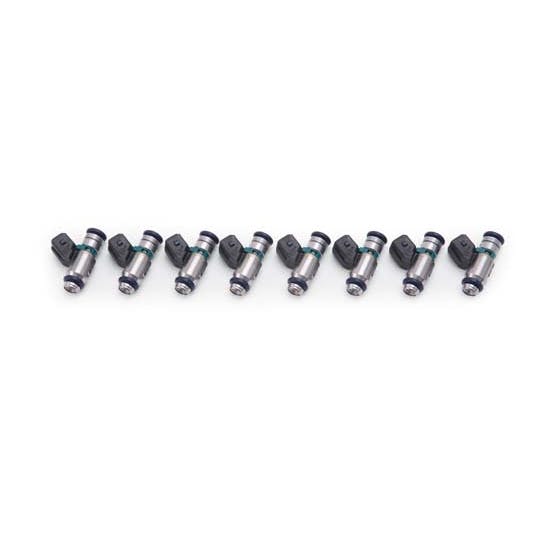

Edelbrock 3636 Pico Fuel Injector, Set of 8
$362.95
each
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 11th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 1.868 in." Overall Height
See more details
Key Specs
MFG. Part # | 3636 |
Brand | Edelbrock |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 3636 Details
Edelbrock 3636 Details
These fuel injectors from Edelbrock are replacement for Pro-Flo systems. They feature precise, controlled fuel flow for more power, increased throttle response, and fuel economy.
- Pico Fuel Injector
- Pro-Flo Replacement Part
- 35 lbs./hr., 16 ohms Injector Impedance
- Set of 8
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
CARB Warning
For race/ off road use or for use on pre-1966 vehicles.
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Edelbrock 3636 Specifications
Edelbrock 3636 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 3636 |
Brand | Edelbrock |
GENERAL | |
Overall Height | 1.868 in. |
Outside Diameter | 0.602 in. |
Wiring Harness Included | No |
Fuel Injector O-Rings Included | Yes |
Injector Plug Style | EV1/Jetronic/Minitimer |
Fuel Rail O-Ring Outside Diameter | 0.594 in. |
Manifold O-Ring Outside Diameter | 0.587 in. |
Seat to Seat Height | 1.152 in. |
Driver Type | 12V saturated circuit |
Injector Impedence | High |
Injector Impedance - Ohms | 16.0 ohms |
Injector Advertised Flow Rate | 35 lbs./hr. |
GTIN Code | 085347036363 |
Notes | This is a replacement Pico fuel injector for an Edelbrock Pro-Flo EFI system. |
Sold in Quantity | Set |
