Add to Cart
$2,133.95
Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port
Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port

Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port

396 Chevy Big Block V8, 402 Chevy Big Block V8, 427 Chevy Big Block V8, 454 Chevy Big Block V8

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port
Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port
Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port
X
Edelbrock 35883 Pro-Flo 4 XT, Gen V BBC, Rectangle Port
Zoomed In Image
We estimate this item will ship on or before April 21st.
Part # 32535883
$2,133.95
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Injection Style:
Multi-port
User Tunable:
Yes
Self Tuning:
Yes
Injectors Included:
Yes
Injector Size:
60 lbs./hr.
Intake Manifold Included:
Yes
Intake Section Included:
Complete
Metering Style:
Speed density
EGR:
No
CFM:
1100 CFM
Throttle Body Included:
Yes
Throttle Body Material:
Aluminum
Throttle Body Finish:
Natural
Intake Material:
Aluminum
Intake Finish:
Black Powder Coated
Venturi Quantity:
1
Fuel Pump Included:
No
Fuel Rails Included:
Yes
Calibration Module Included:
Yes
ECM Included:
Yes
Wiring Harness Included:
Yes
Fuel Pressure Regulator Included:
No
Distributor Included:
Yes
MAP Sensor Included:
Yes
IAC Motor Included:
Yes
IAT Sensor Included:
Yes
TPS Sensor Included:
Yes
Venturi Diameter:
90.00mm
Max Horsepower Rating:
950
Notes:
Includes Android tablet for a wireless Bluetooth connection to the ECU.
MFG. Part #:
35883
GTIN Code:
085347358830
Sold in Quantity:
Kit

Info

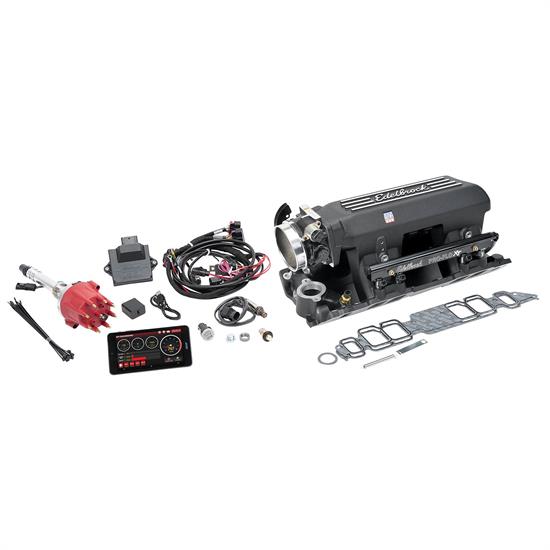

The Edelbrock Pro-Flo 4 XT EFI Kit #35883 for rectangular-port Big-Block Chevrolet engines is a complete bolt-on electronic fuel injection system featuring a black powder-coated XT intake manifold with a large plenum and long tapered runners that comes ready to run with high-flow injectors, fuel rails and 90mm throttle body preassembled for you at the Edelbrock factory. This kit is rated at a maximum 825 horsepower with 60 lb/hr injectors and includes all supporting sensors, a wide-band O2 sensor, wire harnesses, and Android-based tablet. Also included is a single-connection distributor designed to work specifically with Pro-Flo 4 providing fully sequential port injection and infinite control over ignition and fuel events under all conditions. Key Pro-Flo 4 advancements are its Self-Calibrating Fuel Map Technology, Wide-Band O2 Closed Loop Mixture Control, and new low-profile ECU with a faster processor and upgraded Bluetooth chip for reliable connectivity with the E-Tuner app that comes preinstalled on the tablet. The E-Tuner includes a Setup Wizard to guide you through the setup and provides fuel and spark adjustability for complete control over the system. Pro-Flo 4 EFI #35883 for the Big-Block Chevy requires no laptop tuning. Minimal setup and tuning adjustments are required with base calibrations provided in the software. The ECU is self-learning and will continually adjust the fuel injection calibration for maximum performance by maintaining a specified target air-fuel ratio as you drive. The E-Tuner provides the ability to fine-tune air-fuel ratios, ignition curve, idle speed, acceleration fuel, fans, rev-limiter and more. Multiple displays let you monitor engine performance in real-time from inside or outside of the vehicle while retaining the simplicity that Pro-Flo 4 systems are known for.

  • Edelbrock 35883
  • Pro-Flo 4 XT EFI System
  • 60 Lb/Hr Injectors
  • Capable of 825 HP
  • Tablet included
  • Big-Block Chevy Rectangle Port

Notes BBC Rectangular port heads. Includes Android tablet for a wireless Bluetooth connection to the ECU.

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 15 business days for Edelbrock to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
