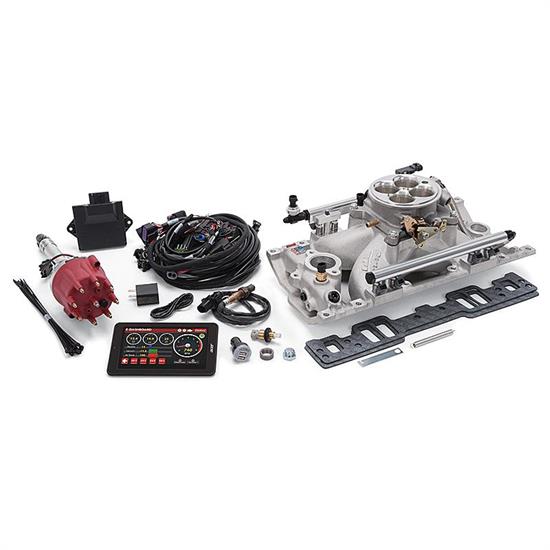

Edelbrock 35780 Pro-Flo 4 EFI Kit, Small Block Chevy,Vortec Heads

#32535780

Edelbrock 35780 Pro-Flo 4 EFI Kit, Small Block Chevy,Vortec Heads

Name: Edelbrock 35780 Pro-Flo 4 EFI Kit, Small Block Chevy,Vortec Heads
Brand: Edelbrock
SKU: 32535780
Price: 2481.95 USD
Availability: InStock

Write a Review

2 Questions

Type:

4150 Style

Pro-Flo XT

$2,481.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Multi-port Injection Style, 29 lbs./hr. Injector Size

See more details

Key Specs

MFG. Part #	35780
Injection Style	Multi-port
Injector Size	29 lbs./hr.
ECM Included	Yes
Throttle Body Style	Multi-Port Injection (MPI)

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 35780 Details

When choosing to upgrade your engine to modern fuel injection, look no further than Edelbrock's Pro-Flo 4 EFI systems. Edelbrock has been delivering the best combination of dyno proven electronic fuel injection performance for over 40 years. Pro-Flo 4 is not just a replacement for your carburetor, it's a complete engineered system that provides the ultimate in performance, drivability and quality. These easy to use, self-learning EFI systems feature an all new ECU pre-loaded with 80 dyno-tuned calibrations that support popular engine configurations up to 800 hp. Combined with the enhanced E-Tuner 4 App's easy to use setup wizard; you get plug and play performance without the need of a laptop or costly dyno tuning sessions. Pro-Flo 4 EFI systems are the most complete systems available on the market, giving you what you need to upgrade to powerful and efficient fuel injection for your vehicle. Pro-Flo 4 EFI systems are the best value for your dollar!

Fits Small Block Chevy with Vortec or E-Tec Heads
Supports up to 550 HP
Easy to use self-learning system that will continually improve engine performance as the vehicle is driven and compensates for altitude and weather changes
Fully sequential port fuel injection system that delivers a smoother idle, great throttle response, improved peak power and the potential for improved fuel economy
Ready to run right-out-of-the-box with pre-loaded calibrations - No laptop or tuning experience required
Internal fuel pump driver, no extra relay or wiring required
Easily adjust your ignition curve specifically for your engine setup, eliminating the hassle, complexity and limitations of the standard distributor advance mechanism
All kits include a plug and play single connection distributor designed to work specifically with Pro-Flo 4. No complicated distributor conversions, rotor phasing, CDI box or added expense of purchasing a distributor.

(JPEG)

Charts

Edelbrock Manifold Reference Dimensions Chart (JPG)

Installation Instructions (PDF)

Guides & Documents

Choosing an Electronic Fuel Injection Retrofit for Your Street Rod or Muscle Car

Fuel Injection Systems Installation Instructions (32535780)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 35780 Specifications

KEY SPECS
MFG. Part #	35780
Brand	Edelbrock
Injection Style	Multi-port
Injector Size	29 lbs./hr.
ECM Included	Yes
Throttle Body Style	Multi-Port Injection (MPI)

GENERAL
Self Tuning	Yes
Injectors Included	Yes
Intake Manifold Included	Yes
Intake Section Included	Complete
Metering Style	Speed density
EGR	No
Throttle Body Included	Yes
Throttle Body Material	Aluminum
Throttle Body Finish	Natural
Throttle Body Flange Type	4-Barrel Square Bore
Intake Material	Aluminum
Intake Finish	Natural
Venturi Quantity	4
Fuel Pump Included	No
Fuel Rails Included	Yes
Calibration Module Included	Yes
Wiring Harness Included	Yes
Fuel Pressure Regulator Included	No
Distributor Included	Yes
MAP Sensor Included	Yes
IAC Motor Included	Yes
IAT Sensor Included	Yes
Finish	Natural
Venturi Diameter	44.45mm
Throttle Body Barrels	4-Barrel
Gaskets Included	Yes
Notes	Supports up to 550 HP. Android or IOS tablet or smart phone needs to be used for a wireless Bluetooth connection to the ECU. (Not Included)
GTIN Code	085347357802
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Questions & Answers

2 Questions • 2 Answers

Sort Questions

is this compatible with boost

by undereducated

• 7 years ago

1 answer

View Answer

Got a 98 Chevy with a 350 vortec with cam and 40 over will this unit work with the 4l60e and stock gauges

by Taz

• 8 years ago

1 answer

View Answer

2 of 2 questions shown

Fitment

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1996-1999 Chevy C1500

Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Vortec L31 Small Block Chevy

1996-1998 Chevy C2500

Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy C2500

Vortec L31 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy C35

Vortec L31 Small Block Chevy

1996-1999 Chevy C3500

Vortec L31 Small Block Chevy

1996-1999 Chevy Camaro

Vortec L31 Small Block Chevy

1996 Chevy Caprice

Vortec L31 Small Block Chevy

1996 Chevy Corvette

Vortec L31 Small Block Chevy

1996-1999 Chevy Express 1500

Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 1500

Vortec L30 Small Block Chevy

1996-1999 Chevy Express 2500

Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

2000-2002 Chevy Express 2500

Vortec L30 Small Block Chevy

1996-1999 Chevy Express 3500

Vortec L31 Small Block Chevy

1996 Chevy G30

Vortec L31 Small Block Chevy

1996 Chevy Impala

Vortec L31 Small Block Chevy

1996-1999 Chevy K1500

Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Vortec L31 Small Block Chevy

1996 Chevy K2500

Vortec L31 Small Block Chevy

1997-1998 Chevy K2500

Vortec L30 Small Block Chevy
Vortec L31 Small Block Chevy

1999 Chevy K2500

Vortec L31 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy K3500

Vortec L31 Small Block Chevy

1996-1999 Chevy P30

Vortec L31 Small Block Chevy

1996-1999 Chevy R25

Vortec L31 Small Block Chevy

1996-1999 Chevy Silverado

Vortec L31 Small Block Chevy

1996-1999 Chevy Suburban 1500

Vortec L31 Small Block Chevy

1996-1999 Chevy Tahoe

Vortec L31 Small Block Chevy

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy
