Product Summary

429, 460, Carbureted Fuel System Type, Aluminum

  • This intake manifold is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 8000 rpm.
  • Standard 429/460 cast iron heads will require port matching of the head to fit manifold.
  • Port exit size at head is 1.88" x 2.16" with enough extra material to open it up to the cast iron Cobra-Jet heads.
  • Will not fit 1988 and later models.

Key Specs

MFG. Part #2966
Fuel System TypeCarbureted
Intake Manifold TypeSingle Plane
Carburetor QuantityOne
Carburetor Flange Type4-Barrel Square Bore

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

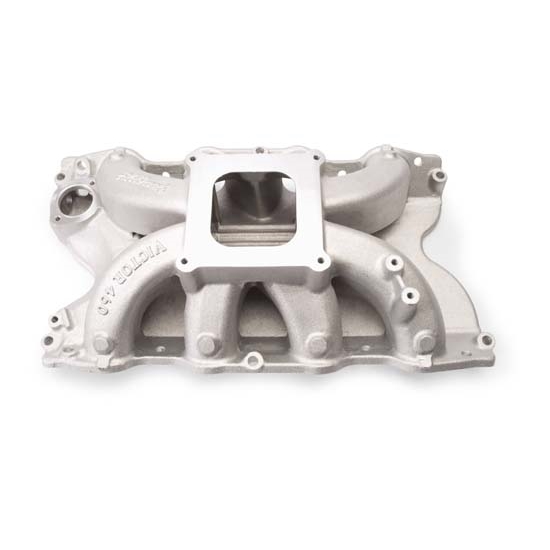

Edelbrock Victor 460 Intake Manifold for Ford 429/460 Big-Block V8

Edelbrock part #2966 Victor 460 intake manifold is designed for Ford 429/460 competition engines using Cobra-Jet cast iron, SVO Cobra-Jet aluminum (M-6049-A429), or the Edelbrock 460 CJ aluminum heads.

  • This intake manifold is ideal for drag racing (Super Stock, Super Gas, Super Comp, Brackets, etc.), marine or any application requiring maximum power up to 8000 rpm.
  • Standard 429/460 cast iron heads will require port matching of the head to fit manifold.
  • Port exit size at head is 1.88" x 2.16" with enough extra material to open it up to the cast iron Cobra-Jet heads.
  • Will not fit 1988 and later models.

Charts

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Specifications

KEY SPECS
MFG. Part #2966
BrandEdelbrock
Fuel System TypeCarbureted
Intake Manifold TypeSingle Plane
Carburetor QuantityOne
Carburetor Flange Type4-Barrel Square Bore
GENERAL
RPM Range3,500-8,000
Material TypeAluminum
FinishNatural
EGRNo
Intake Section IncludedComplete
Gaskets IncludedNo
Overall Height6.3"
Bolt Hole Pattern5.160" x 5.625"
Sold in QuantityEach
GTIN Code085347029662
