Part # 3252925

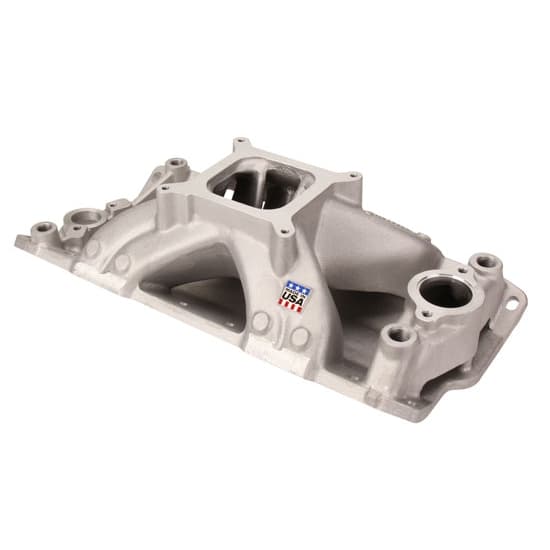

Edelbrock 2925 Super Victor Small Block Chevy Intake Manifold

by

|

  • Rear water outlets allow custom cooling system routing
  • Each runner has a nitrous boss to aid in fogger nozzle installation
  • The slotted flange bolt holes to allow mating on decked blocks or milled heads

$394.95

each

On Backorder

This part is Backordered. We currently do not have an estimate when this item will ship.

Get something sooner


Quantity

Select a vehicle to verify Fitment

Product Summary

Chevy Small Block V8, Carbureted Fuel System Type

  • Rear water outlets allow custom cooling system routing
  • Each runner has a nitrous boss to aid in fogger nozzle installation
  • The slotted flange bolt holes to allow mating on decked blocks or milled heads
  • A boss for a distributor clamp has been added on the left side, for easier to access when timing an engine
  • Flange above the intake ports is machined flat to provide a straight-line reference for port-matching layout

Key Specs

MFG. Part #2925
Fuel System TypeCarbureted
Intake Manifold TypeSingle Plane
Carburetor QuantityOne
Carburetor Flange Type4-Barrel Square Bore

Need To Know

This Product Will Ship Free

Quick and Easy Returns

Details

Edelbrock's Super Victor (3500-8500 rpm) is a high-performance, feature-packed racing manifold for standard port location 23-degree cylinder heads. A taller profile with extra long runners that extend into the plenum offers increased volume. The cross-sectional area of the runners are tuned to complement the runner length creating substantial torque increases at 4500-5500 rpm.

For Chevrolet 262-400 c.i. Small-Block V8. The Super Victor is designed for heads with standard port location and the runners match the "flat floor" entry of the latest 23° heads. It's about 1" taller than the Victor Jr., putting the carb pad height at 5-1/2" from end seals.

  • Slotted flange bolt holes to allow mating on decked blocks or milled heads
  • Rear water outlets allow custom cooling system routing
  • Flange above the intake ports is machined flat to provide a straight-line reference for port-matching layout
  • A boss for a distributor clamp has been added on the left side, for easier to access when timing an engine
  • Each runner has a nitrous boss to aid in fogger nozzle installation

Charts

Specifications

KEY SPECS
MFG. Part #2925
BrandEdelbrock
Fuel System TypeCarbureted
Intake Manifold TypeSingle Plane
Carburetor QuantityOne
Carburetor Flange Type4-Barrel Square Bore
GENERAL
RPM Range3,500-8,000
Material TypeAluminum
FinishNatural
EGRNo
Intake Section IncludedComplete
Gaskets IncludedNo
Overall Height5.5"
Port Height2.00"
Port Width1.20"
Bolt Hole Pattern5.160" x 5.625"
Sold in QuantityEach
NotesUse Fel-Pro intake gasket #1205.
GTIN Code085347029259
