Product Summary

LQ4, LQ9, LS1, LS2, LS6, LY6, One Carburetor Quantity

    Key Specs

    MFG. Part #29087
    BrandEdelbrock
    Material TypeAluminum

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

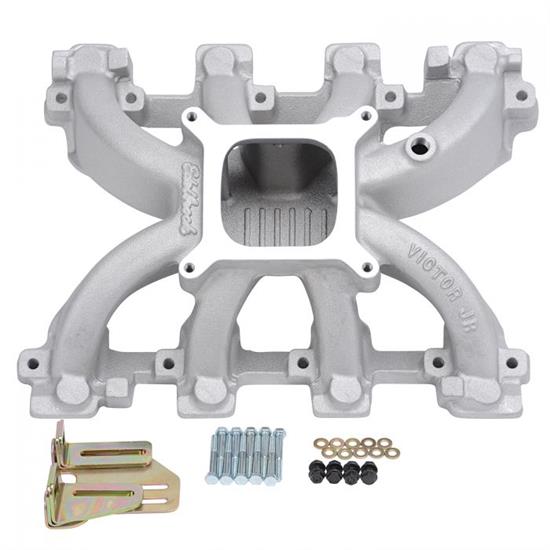

    Edelbrock 29087 Details

    Converts LS1 engine to square bore carburetor. Throttle bracket included for 700R-4, 200R-4 and turbo 350. Use OEM factory o-rings for intake gasket.
    • Converts LS1 Engine to Square Bore Carburetor
    • Throttle Brkt Included for 700R-4/200R-4/Turbo 350
    • Use OEM Factory O-Rings for Intake Gasket

    Charts

    CARB Warning

    For race/ off road use only

    Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

    Edelbrock 29087 Specifications

    KEY SPECS
    MFG. Part #29087
    BrandEdelbrock
    Material TypeAluminum
    GENERAL
    Fuel System TypeCarbureted
    Intake Manifold TypeSingle Plane
    Carburetor QuantityOne
    Carburetor Flange Type4-Barrel Square Bore
    RPM Range3,500-7,500
    FinishNatural
    EGRNo
    Intake Section IncludedComplete
    Gaskets IncludedNo
    Overall Height4.95"
    Bolt Hole Pattern5.160" x 5.625"
    Sold in QuantityEach
    NotesIncludes throttle bracket.
    GTIN Code085347290871
