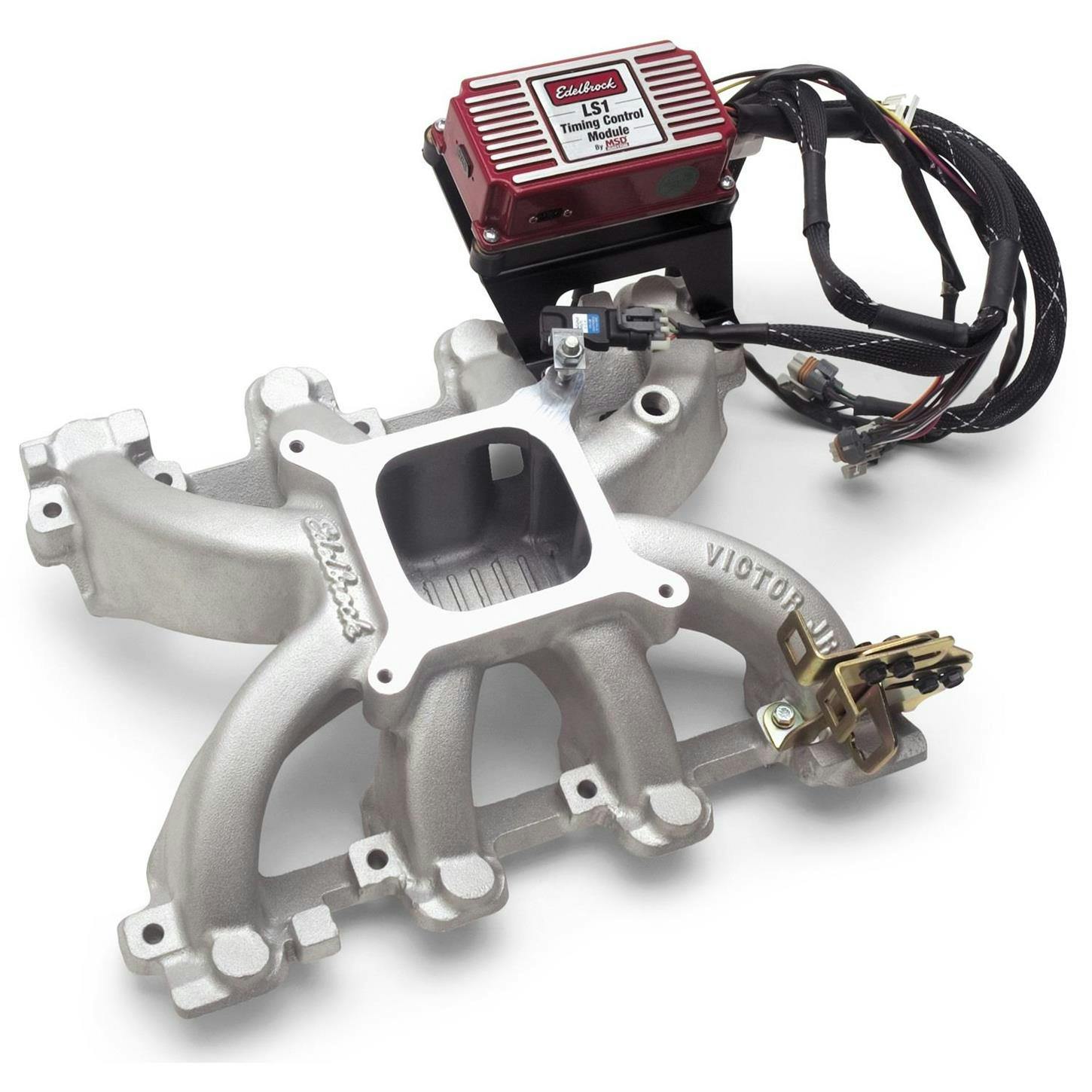

Edelbrock 2908 Victor Jr. LS1 Intake Manifold
$1,077.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select an engine to verify Fitment
Select Engine
Key Specs
| MFG. Part # | 2908 |
| Brand | Edelbrock |
| Intake Manifold Type | Single Plane |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Material Type | Aluminum |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 2908 Details
Edelbrock 2908 Details
This high-rise single plane intake is capable of supporting up to 600 hp. The Victor Jr. LS1 accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS1.
- Converts LS1 Engine to Square Bore Carburetor
- Includes Electronic Control Module
- Module picks up MAP; Crank and Cam Position
- Module Drives Stock Coil-on-Plug System
- Module Includes Multiple Timing Curves
- Throttle Brkt Included for 700R-4/200R-4/Turbo 350
- Use OEM Factory O-Rings for Intake Gasket
Charts
Guides & Documents
CARB Warning
For race/ off road use only
CARB Warning
For race/ off road use only
Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.
Edelbrock 2908 Specifications
Edelbrock 2908 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2908 |
| Brand | Edelbrock |
| Intake Manifold Type | Single Plane |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Material Type | Aluminum |
| GENERAL | |
| Fuel System Type | Carbureted |
| Carburetor Quantity | One |
| Finish | Natural |
| EGR | No |
| Cylinder Head Configuration | Cathedral Port |
| Intake Section Included | Complete |
| Gaskets Included | No |
| Overall Height | 4.95" |
| Bolt Hole Pattern | 5.160" x 5.625" |
| Notes | Includes LS1 24x timing control module |
| GTIN Code | 085347029082 |
Ratings & Reviews
Ratings & Reviews
Fitment
Fitment
2004-2005 Cadillac CTS
GM LS6
2001-2004 Chevy Corvette
GM LS6
