Product Summary

L92, L99, LS3, LS9, LSA, Carbureted Fuel System Type

  • This new Super Victor intake manifold is designed with 24% larger runners than Edelbrock's Victor Jr. #28457 along with a larger 4500 style plenum.
  • The large plenum makes these intake manifolds ideal for nitrous and forced induction applications.
  • They also feature tapered runners for increased flow at high rpm.
  • The Super Victor 4500 series manifolds can accommodate bores up 2.25".
  • A carburetor mounted style throttle bracket is recommended.

Key Specs

MFG. Part #2821
BrandEdelbrock
Material TypeAluminum

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Edelbrock 2821 Details

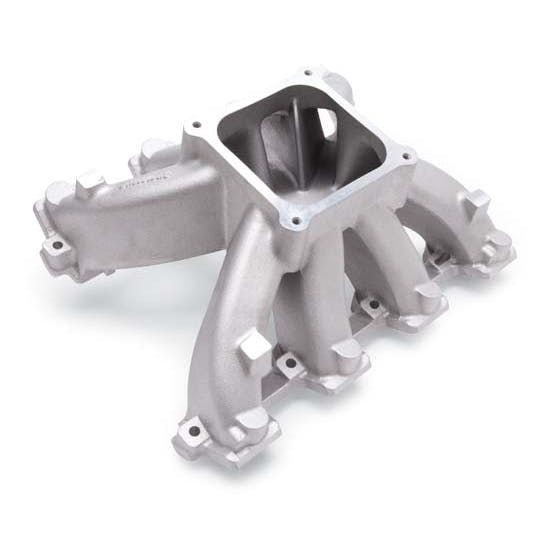

Edelbrock Super Victor LS3 Carbureted Intake Manifold for Small-Block Chevrolet Gen IV Engines with LS3, L92, & L76 Rectangle Port Cylinder Heads. Accepts 4500-Series Carburetor. Non-EGR.

Edelbrock part #2821 Super Victor LS3 intake manifold is designed for Gen IV LS engines equipped with LS3 cylinder heads, this new Super Victor intake manifold is ideal for anyone building a 700+ hp 4500 series carbureted large displacement racing engine operating between 3,500 - 7,500 rpm.

  • This new Super Victor intake manifold is designed with 24% larger runners than Edelbrock's Victor Jr. #28457 along with a larger 4500 style plenum.
  • The large plenum makes these intake manifolds ideal for nitrous and forced induction applications.
  • They also feature tapered runners for increased flow at high rpm.
  • The Super Victor 4500 series manifolds can accommodate bores up 2.25".
  • A carburetor mounted style throttle bracket is recommended.

Edelbrock 2821 Specifications

KEY SPECS
MFG. Part #2821
BrandEdelbrock
Material TypeAluminum
GENERAL
Fuel System TypeCarbureted
Intake Manifold TypeSingle Plane
Carburetor QuantityOne
Carburetor Flange Type4-Barrel Square Bore
RPM Range3,500-7,500
FinishNatural
EGRNo
Intake Section IncludedComplete
Gaskets IncludedNo
Overall Height7.67"
Bolt Hole Pattern5.160" x 5.625"
Sold in QuantityEach
GTIN Code085347028214
