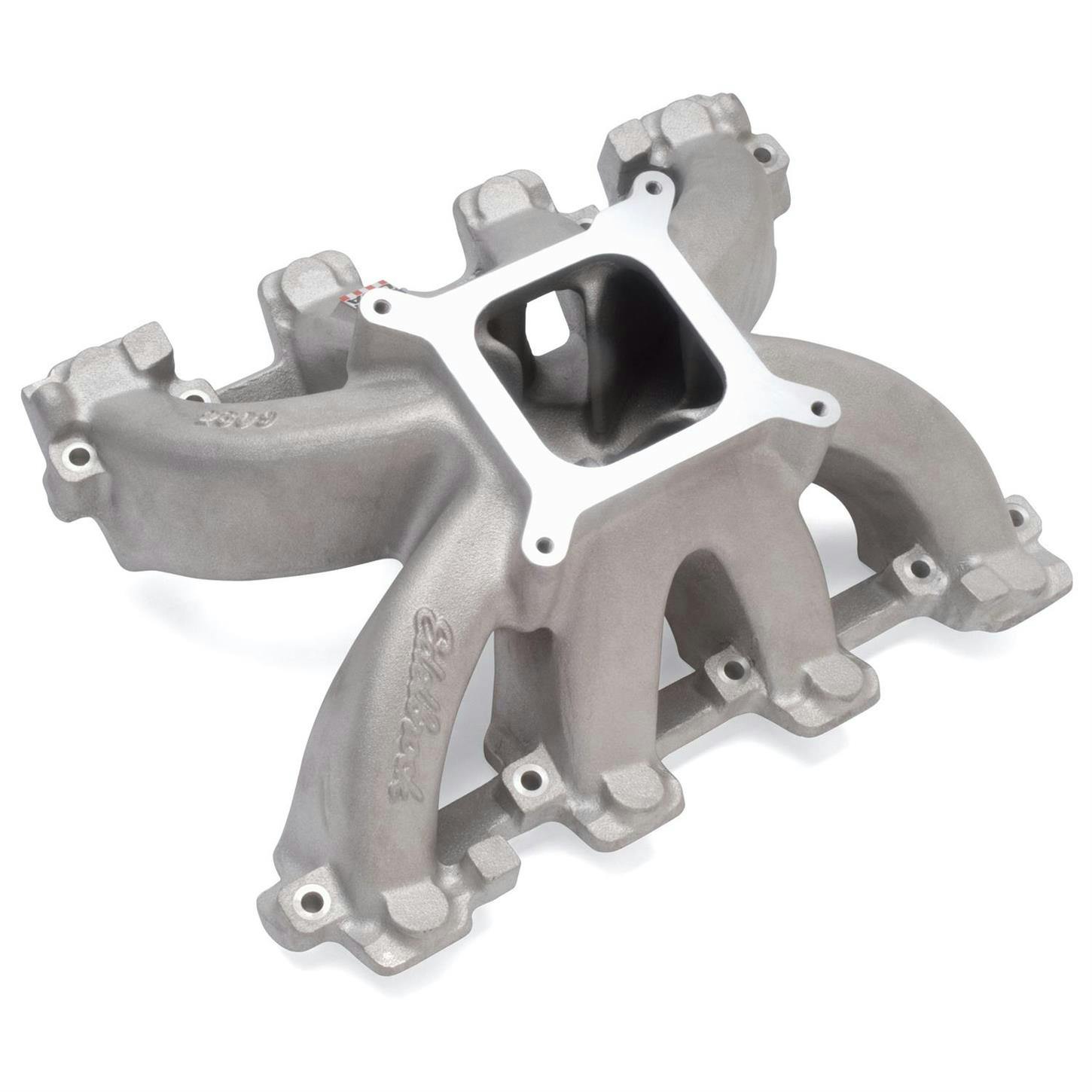

Edelbrock 28097 Super Victor LS1 Intake Manifold, SB Chevy LS1

#32528097

Edelbrock 28097 Super Victor LS1 Intake Manifold, SB Chevy LS1

This manifold has been accepted by NASCAR for use in the Grand National West/Grand National East series.
The carb mount pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74".
Edelbrock offers the optional LS1 Timing Control Module #91238 to drive the stock LS1 Coil-on-Plug ignition system.

$689.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Carbureted Fuel System Type, One Carburetor Quantity

This manifold has been accepted by NASCAR for use in the Grand National West/Grand National East series.
The carb mount pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74".
Edelbrock offers the optional LS1 Timing Control Module #91238 to drive the stock LS1 Coil-on-Plug ignition system.
LS2 applications require MSD's #6012 LS2 ignition controller (available through MSD Performance).

See more details

Key Specs

MFG. Part #	28097
Intake Manifold Type	Single Plane
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	3,500-8,000
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 28097 Details

Edelbrock part #28097 Super Victor LS1 intake manifold offers greater air flow potential for even bigger power gains.

This manifold has been accepted by NASCAR for use in the Grand National West/Grand National East series.
The carb mount pad is 1.12" taller than the Victor Jr. LS1, and the port exits have been increased to 1.08" x 2.74".
Edelbrock offers the optional LS1 Timing Control Module #91238 to drive the stock LS1 Coil-on-Plug ignition system.
LS2 applications require MSD's #6012 LS2 ignition controller (available through MSD Performance).

Guides & Documents

Intake Manifolds Installation Instructions (32528097)

CARB Warning

For race/ off road use only

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 28097 Specifications

KEY SPECS
MFG. Part #	28097
Brand	Edelbrock
Intake Manifold Type	Single Plane
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	3,500-8,000
Material Type	Aluminum

GENERAL
Fuel System Type	Carbureted
Carburetor Quantity	One
Finish	Natural
Color	Natural
EGR	No
Cylinder Head Configuration	Cathedral Port
Intake Section Included	Complete
Gaskets Included	No
Overall Height	6.07"
Bolt Hole Pattern	5.160" x 5.625"
Sold in Quantity	Each
GTIN Code	085347280971

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1998-2002 Chevy Camaro

GM LS1

1997-2004 Chevy Corvette

GM LS1

1998-2002 Pontiac Firebird

GM LS1

2004 Pontiac GTO

GM LS1
