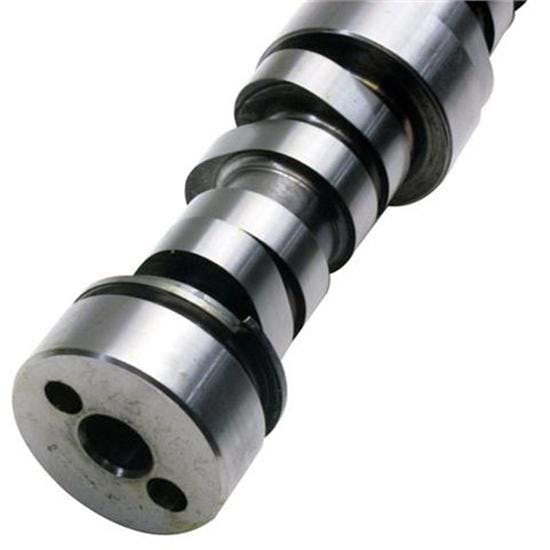

Edelbrock 2215 LS1 Hydraulic Roller Cam, 1500-6500 RPM

#3252215

Edelbrock 2215 LS1 Hydraulic Roller Cam, 1500-6500 RPM

Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm.
They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
You can expect a major improvement in throttle response and torque.

$663.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Tappet Camshaft Type

Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm.
They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
You can expect a major improvement in throttle response and torque.
In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams.
All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions.

See more details

Key Specs

Camshaft Type	Hydraulic Roller Tappet
RPM Range	1500-6500
Intake Duration (.050" Lift)	220
Exhaust Duration (.050" Lift)	220
Lobe Separation	111 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 2215 Details

Edelbrock Rollin' Thunder Camshaft #2215 is designed for LS1/LS6 Gen III Chevy's from 1997-04 and produces optimum torque from the low-end to the mid-range.

Rollin' Thunder camshafts should be matched with Performer manifolds for vehicles operating from off-idle to 5500 rpm.
They are smooth idling cams for daily drivers, trucks, vans, RVs and 4x4s.
You can expect a major improvement in throttle response and torque.
In the manifold section you'll find torque graphs showing the power gains from Performer manifolds and Performer-Plus cams.
All camshafts include flat tappet lifters (except for cams designed for use with stock roller lifters), assembly lube and instructions.

This cam produced 430HP and 420 Ft Lbs of Torque when paired with Performer RPM Intake manifold #71187, Thunder Series AVS Carb #1813 and E-CNC 215 cylinder heads #79949. Use with high stall torque converter only. Camshaft specifications: - Intake duration: 220 Degrees - Exhaust duration: 220 Degrees - Intake lift: .510" - Exhaust lift: .510" - Lobe separation: 111 Degree - Intake Center Line: 108 Degree - Vacuum: 12"

Application

For 1997 and up Corvette
1998-2002 Camaro/Firebird
LS1/LS6 based engines

Specs

Duration at 0.006" Lift -

Intake: 300°
Exhaust: 300°

Duration at 0.050" Lift -

Intake: 220°
Exhaust: 224°

Lift at Cam -

Intake: 0.300"
Exhaust: 0.300"

Lift at Valve -

Intake: 0.510"
Exhaust: 0.510"

Timing at 0.050" lift -

Open intake: 2° BTDC
Closed intake: 38° ABDC
Open exhaust: 44° BBDC
Closed exhaust: 4° BTDC

Centerlines -

Lobe separation 111°
Intake centerline 108°

RPM range: 1500-6500

Guides & Documents

Camshafts Installation Instructions (3252215)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 2215 Specifications

KEY SPECS
MFG. Part #	2215
Brand	Edelbrock
Camshaft Type	Hydraulic Roller Tappet
RPM Range	1500-6500
Intake Duration (.050" Lift)	220
Exhaust Duration (.050" Lift)	220
Lobe Separation	111 °

GENERAL
Gear Attachment	3-Bolt
Intake Valve Lift w/ Rocker Arm Ratio	0.51"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.510"
Computer Controlled Compatible	Yes
Intake Duration	300
Exhaust Duration	300
Sold in Quantity	Each
GTIN Code	085347022151
Valve Springs Required	Yes
Notes	Custom tuning required. Use with high stall converter on auto models.

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

2004-2005 Cadillac CTS

GM LS6

1998-2002 Chevy Camaro

GM LS1

1997-2000 Chevy Corvette

GM LS1

2001-2004 Chevy Corvette

GM LS1
GM LS6

1998-2002 Pontiac Firebird

GM LS1

2004 Pontiac GTO

GM LS1
