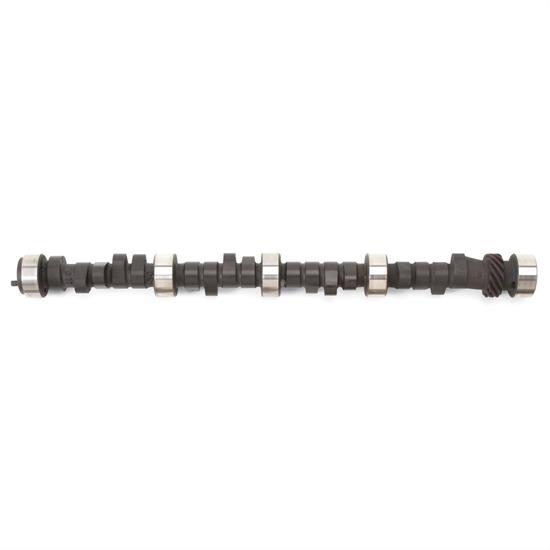

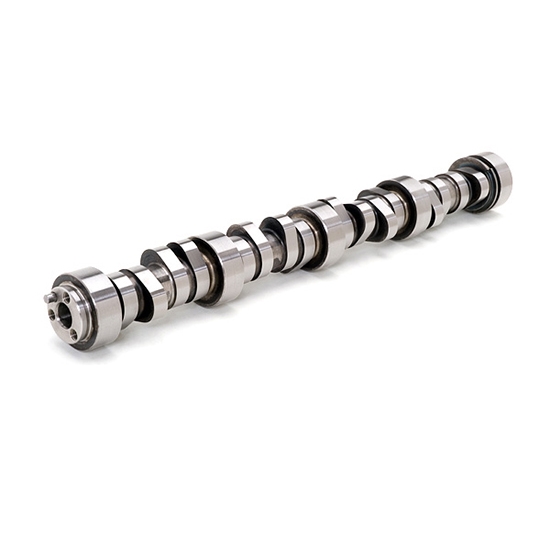

Edelbrock 2204 Rollin' Thunder Hydraulic Roller Camshaft, Chevy

#3252204

Edelbrock 2204 Rollin' Thunder Hydraulic Roller Camshaft, Chevy

Name: Edelbrock 2204 Rollin' Thunder Hydraulic Roller Camshaft, Chevy
Brand: Edelbrock
SKU: 3252204
Price: 456.95 USD
Availability: InStock

Write a Review

1 Question

Type:

Camshaft

$456.95

/each

Factory Shipped

Garage Sale alternatives: from $272.93

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Hydraulic Roller Tappet Camshaft Type

See more details

Key Specs

Camshaft Type	Hydraulic Roller Tappet
RPM Range	1500-6500
Intake Duration (.050" Lift)	234
Exhaust Duration (.050" Lift)	238
Lobe Separation	112 °

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 2204 Details

Edelbrock Rollin' Thunder camshafts are designed to improve horsepower and torque, produce a great sounding performance idle and provide excellent vacuum at idle to support power accessories.

Designed for 1500 to 6500 Performance
Maximum Power in High-RPM with Good Low-End Torque
Matched to Edelbrock Performer RPM Intakes
10 to 12 in. of Manifold Vacuum at Idle
More Lift and Duration than Most Street Camshafts
Dyno Matched/Street Proven Performance
Take the Guesswork Out of Camshaft Selection!
Use Only Stock Ratio Rocker Arms

Charts

Installation Instructions (PDF)

Guides & Documents

Camshafts Installation Instructions (3252204)

CARB Warning

Follow EPA, CARB, and state regulations for engine changes

Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 2204 Specifications

KEY SPECS
MFG. Part #	2204
Brand	Edelbrock
Camshaft Type	Hydraulic Roller Tappet
RPM Range	1500-6500
Intake Duration (.050" Lift)	234
Exhaust Duration (.050" Lift)	238
Lobe Separation	112 °

GENERAL
Intake Valve Lift w/ Rocker Arm Ratio	0.539"
Exhaust Valve Lift w/ Rocker Arm Ratio	0.548"
Intake Duration	296
Exhaust Duration	300
Sold in Quantity	Each
GTIN Code	085347022045
External Ignition Box Required	No
Valve Springs Required	Yes

Ratings & Reviews

Be the first to write a review.

Questions & Answers

1 Question • 1 Answer

Sort Questions

I have a 1957 Chevy 210 Sedan, want to build an engine with alittle more get up, had a 355 about 350-375 horse, it let go. So looking at building another 350 thats bored 40 over, Stroker with the 3.875 scat crank w 6" Hbeam rods. Put a Edelbrock 2204 rollin thunder cam, I have a set of edelbrock 202 aluminum heads. Either a Edelbrock 4 barrel or a Fast efi system. I know this engine will go, we do some crusin in it and have driven it long distances. With this combo how bad are we going to hurt the longivity of the motor for the long hauls.

by Ken

• 10 years ago

1 answer

View Answer

1 of 1 questions shown

Fitment

1991-1993 Buick Roadmaster

Gen 1 L03 Small Block Chevy

1991-1992 Cadillac Brougham

1-Piece Rear Main 305 LB9

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1987 Chevy Blazer

Gen 1 L03 Small Block Chevy

1986 Chevy C10

1-Piece Rear Main 305 LG4

1986 Chevy C10 Suburban

Gen 1 L03 Small Block Chevy

1988 Chevy C15

Gen 1 L03 Small Block Chevy

1988-1995 Chevy C1500

Gen 1 L03 Small Block Chevy

1996 Chevy C1500

Gen 1 L03 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1999 Chevy C1500

Vortec L31 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Vortec L31 Small Block Chevy

1986-1987 Chevy C20

Gen 1 L03 Small Block Chevy

1986 Chevy C20 Suburban

Gen 1 L03 Small Block Chevy

1988-1995 Chevy C2500

Gen 1 L03 Small Block Chevy

1996 Chevy C2500

Gen 1 L03 Small Block Chevy
Vortec L31 Small Block Chevy

1997-1999 Chevy C2500

Vortec L31 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Vortec L31 Small Block Chevy

1986 Chevy C30

Gen 1 L03 Small Block Chevy

1996-1999 Chevy C35

Vortec L31 Small Block Chevy

1996-1999 Chevy C3500

Vortec L31 Small Block Chevy

1985 Chevy Camaro

2-Piece Rear Main 305 LB9

1986-1992 Chevy Camaro

1-Piece Rear Main 305 LB9

1996-1999 Chevy Camaro

Vortec L31 Small Block Chevy

1986-1993 Chevy Caprice

Gen 1 L03 Small Block Chevy

1996 Chevy Caprice

Vortec L31 Small Block Chevy

1996 Chevy Corvette

Vortec L31 Small Block Chevy

1986-1987 Chevy El Camino

Gen 1 L03 Small Block Chevy

1996-1999 Chevy Express 1500

Vortec L31 Small Block Chevy

1996-1999 Chevy Express 2500

Vortec L31 Small Block Chevy

1996-1999 Chevy Express 3500

Vortec L31 Small Block Chevy

1986-1995 Chevy G10

Gen 1 L03 Small Block Chevy

1986-1995 Chevy G20

Gen 1 L03 Small Block Chevy

1996 Chevy G30

Vortec L31 Small Block Chevy

1996 Chevy Impala

Vortec L31 Small Block Chevy

1986 Chevy K10

Gen 1 L03 Small Block Chevy

1986 Chevy K10 Suburban

Gen 1 L03 Small Block Chevy

1988-1995 Chevy K1500

Gen 1 L03 Small Block Chevy

1996-1999 Chevy K1500

Vortec L31 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Vortec L31 Small Block Chevy

1986 Chevy K20 Suburban

Gen 1 L03 Small Block Chevy

1988-1995 Chevy K2500

Gen 1 L03 Small Block Chevy

1996-1999 Chevy K2500

Vortec L31 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy K3500

Vortec L31 Small Block Chevy

1986 Chevy K5 Blazer

Gen 1 L03 Small Block Chevy

1986-1988 Chevy Monte Carlo

Gen 1 L03 Small Block Chevy

1996-1999 Chevy P30

Vortec L31 Small Block Chevy

1987 Chevy R10

Gen 1 L03 Small Block Chevy

1987 Chevy R10 Suburban

Gen 1 L03 Small Block Chevy

1987 Chevy R20

Gen 1 L03 Small Block Chevy

1996-1999 Chevy R25

Vortec L31 Small Block Chevy

1996-1999 Chevy Silverado

Vortec L31 Small Block Chevy

1996-1999 Chevy Suburban 1500

Vortec L31 Small Block Chevy

1996-1999 Chevy Tahoe

Vortec L31 Small Block Chevy

1987 Chevy V10

Gen 1 L03 Small Block Chevy

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1987 GMC Jimmy

Gen 1 L03 Small Block Chevy

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy

1985 Pontiac Firebird

2-Piece Rear Main 305 LB9
