Product Summary

340, 360, Dual Plane | High Rise Intake Manifold Type

    Key Specs

    MFG. Part #2075

    Need To Know

    This Product Will Ship Free

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

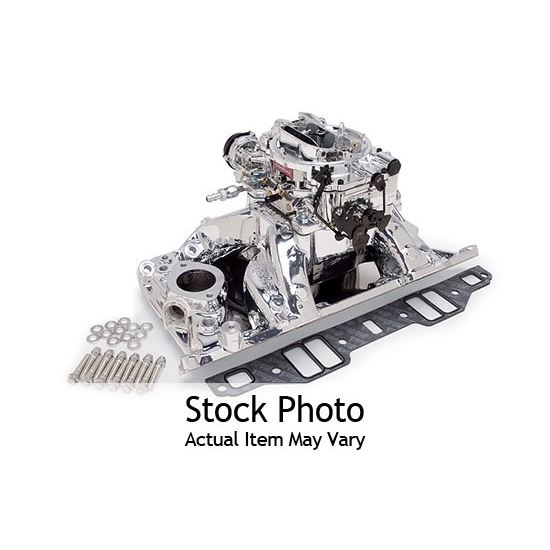

    With a Manifold and Carb Kit, it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box.

    • Varying Manifold And Carburetor Combinations
    • Suits Engines Air/Fuel Requirements
    • Chrome Fuel Inlet
    • High-Quality Edelbrock Intake Gasket Set
    • Includes Gasgacinch Gasket Sealer
    • All Necessary Hardware Included
    • EnduraShine Finish
    • Resists Discoloration From Heat

    CARB Warning

    Follow EPA, CARB, and state regulations for engine changes

    Emissions warning: this part is for vehicle engine changes, not direct oem engine replacements. In California, engine changes are legal when done in compliance with California bureau of automotive repairs (bar) engine change policy. For assistance, call bar referee at: (800) 622-7733. And see https://bar.Ca.Gov/consumer/smog_check_program/engine_changes. All customers must comply with federal epa mobile source enforcement memorandum no. 1a (and addendum) and all applicable state regulations when conducting engine changes. Improper installation and/or use of this part in California may subject the installer and/or owner to a $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and laws of all states for use of this engine change part on makes or models of vehicles that render them noncompliant with applicable state and/or federal emission laws with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine


    MFG. Part #2075
    Intake Manifold TypeDual Plane | High Rise
    Carburetor QuantityOne
    Carburetor Barrels4-Barrel
    Carburetor Flange Type4-Barrel Square Bore
    CFM800 CFM
    RPM Range1,500-6,500
    Choke TypeElectric
    Fuel TypeGasoline
    Intake Manifold MaterialAluminum
    Intake Manifold FinishSatin
    Carburetor FinishBall Burnished
    Air Cleaner TypeNot Included
    Secondary TypeAir Valve
    Fuel Inlet TypeSingle
    Linkage IncludedNo
    Fuel Line IncludedYes
    Intake Gaskets IncludedYes
    Valve Cover Gaskets IncludedNo
    Gasket(s) IncludedYes
    Bolts/Studs IncludedYes
    Intake Manifold Fasteners IncludedYes
    GTIN Code085347020751
    Sold in QuantityKit
