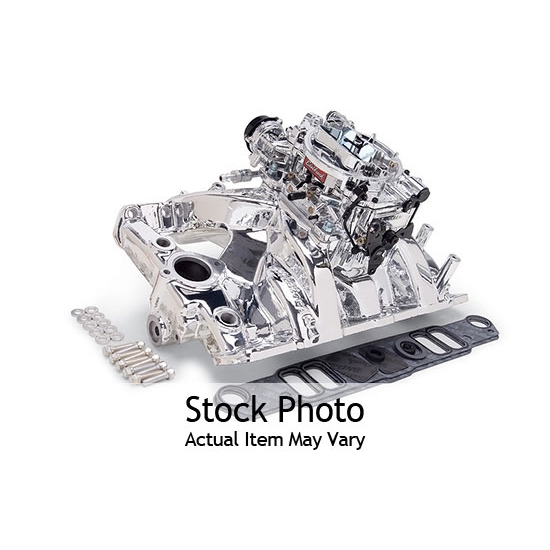

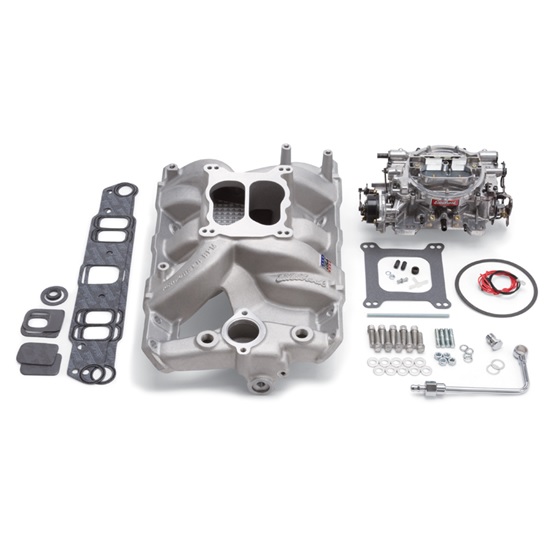

Edelbrock 2056 Single-Quad Intake Manifold/Carburetor Kit

#3252056

Edelbrock 2056 Single-Quad Intake Manifold/Carburetor Kit

Name: Edelbrock 2056 Single-Quad Intake Manifold/Carburetor Kit
Brand: Edelbrock
SKU: 3252056
Price: 1032.95 USD
Availability: InStock

Write a Review

3 Questions

$1,032.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Dual Plane | High Rise Intake Manifold Type, Natural

See more details

Key Specs

MFG. Part #	2056
Intake Manifold Type	Dual Plane \| High Rise
Carburetor Quantity	One
Carburetor Barrels	4-Barrel
CFM	800 CFM

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 2056 Details

With a Manifold and Carb Kit, it's easy to upgrade your induction system with the best combination of Edelbrock proven performance and looks in a single box.

Varying Manifold And Carburetor Combinations
Suits Engines Air/Fuel Requirements
Chrome Fuel Inlet
High-Quality Edelbrock Intake Gasket Set
Includes Gasgacinch Gasket Sealer
All Necessary Hardware Included
EnduraShine Finish
Resists Discoloration From Heat

Guides & Documents

Determining the Best Performance Carburetor For Your Application

CARB Warning

For use on pre-1966 vehicles only

Emissions warning: this part only legal for sale or use in California if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. ++any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering there are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Edelbrock 2056 Specifications

KEY SPECS
MFG. Part #	2056
Brand	Edelbrock
Intake Manifold Type	Dual Plane \| High Rise
Carburetor Quantity	One
Carburetor Barrels	4-Barrel
CFM	800 CFM

GENERAL
Carburetor Flange Type	4-Barrel Square Bore
RPM Range	1,500-6,500
Choke Type	Manual/Electric
Fuel Type	Gasoline
Intake Manifold Material	Aluminum
Intake Manifold Finish	Natural
Carburetor Finish	Ball Burnished
Air Cleaner Type	Not Included
Secondary Type	Mechanical
Fuel Inlet Type	Single
EGR	No
Linkage Included	No
Fuel Line Included	Yes
Intake Gaskets Included	Yes
Valve Cover Gaskets Included	No
Bolts/Studs Included	Yes
Intake Manifold Fasteners Included	Yes
GTIN Code	085347020560
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Questions & Answers

3 Questions • 3 Answers

Sort Questions

I am trying to find 4 barrel intake and carberator for 1960 catalina 389. Can you help.chry19

by Danny

• 7 years ago

1 answer

View Answer

Will this for my 1962 389 in my bony?

by 1962bonny

• 8 years ago

1 answer

View Answer

will this kit work with the Pontiac 350cid models?

by Donny

• 9 years ago

1 answer

View Answer

3 of 3 questions shown

Fitment

1959-1962 Pontiac Bonneville

389 Pontiac V8

1963-1966 Pontiac Bonneville

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Bonneville

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Bonneville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Bonneville

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Bonneville

400 Pontiac V8

1959-1960 Pontiac Catalina

389 Pontiac V8

1961-1966 Pontiac Catalina

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Catalina

400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Catalina

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Catalina

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Catalina

400 Pontiac V8

1967 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1968 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1969 Pontiac Executive

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Executive

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1967 Pontiac Firebird

326 Pontiac V8
400 Pontiac V8

1968-1969 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1970-1976 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Firebird

350 Pontiac V8
400 Pontiac V8

1978-1979 Pontiac Firebird

400 Pontiac V8

1973-1975 Pontiac Grand Am

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand LeMans

350 Pontiac V8
400 Pontiac V8

1962 Pontiac Grand Prix

389 Pontiac V8

1963-1966 Pontiac Grand Prix

389 Pontiac V8
421 Pontiac V8

1967-1969 Pontiac Grand Prix

400 Pontiac V8
428 Pontiac V8

1970 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1971 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1974 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac Grand Prix

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1976 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Prix

350 Pontiac V8
400 Pontiac V8

1971-1974 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975-1976 Pontiac Grand Safari

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac Grand Safari

350 Pontiac V8
400 Pontiac V8

1978 Pontiac Grand Safari

400 Pontiac V8

1971 Pontiac Grandville

Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1975 Pontiac Grandville

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1964-1965 Pontiac GTO

326 Pontiac V8
389 Pontiac V8
421 Pontiac V8

1966 Pontiac GTO

389 Pontiac V8

1967-1969 Pontiac GTO

400 Pontiac V8

1970-1971 Pontiac GTO

400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1972-1973 Pontiac GTO

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1963-1966 Pontiac LeMans

326 Pontiac V8
389 Pontiac V8

1967 Pontiac LeMans

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970-1974 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1975 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1976 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1977 Pontiac LeMans

350 Pontiac V8
400 Pontiac V8

1977 Pontiac Phoenix

350 Pontiac V8

1959-1962 Pontiac Star Chief

389 Pontiac V8

1963-1966 Pontiac Star Chief

389 Pontiac V8
421 Pontiac V8

1961-1962 Pontiac Tempest

389 Pontiac V8

1963-1966 Pontiac Tempest

326 Pontiac V8
389 Pontiac V8

1967 Pontiac Tempest

326 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1968-1969 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
428 Pontiac V8

1970 Pontiac Tempest

350 Pontiac V8
400 Pontiac V8
Pontiac V8 Large-Journal 455
Pontiac V8 Small-Journal 455 Ram Air V

1960 Pontiac Ventura

389 Pontiac V8

1961 Pontiac Ventura

389 Pontiac V8
421 Pontiac V8

1971-1977 Pontiac Ventura

350 Pontiac V8
