#3251906BP

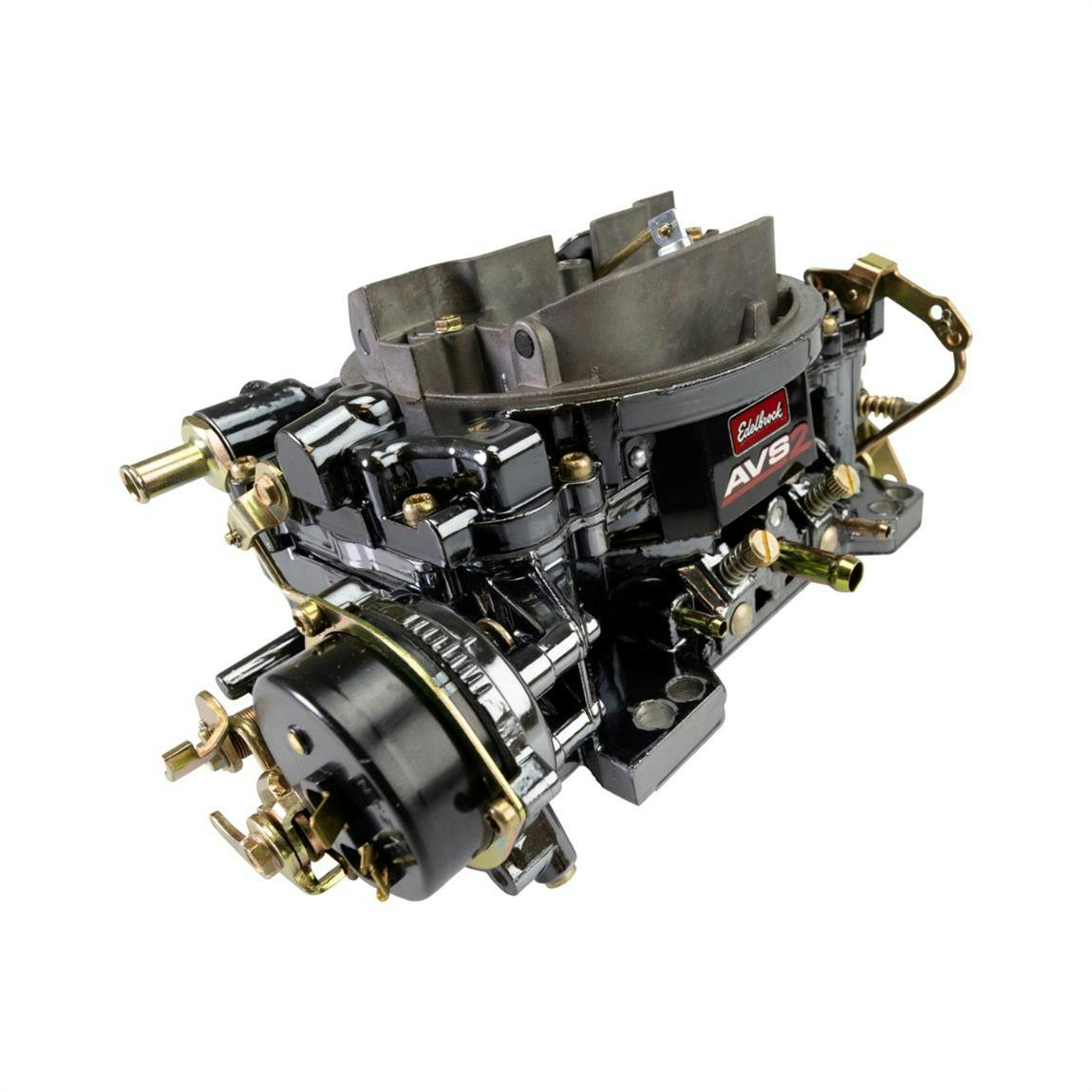

Edelbrock 1906-BP AVS2 Series 650CFM Carburetor, E-Choke, Black
$619.95
/each
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | Electric |
| CFM Range | 600-699 CFM |
| CFM | 650 CFM |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 1906-BP Details
Edelbrock 1906-BP Details
Edelbrock's AVS2 #1906-BP with Electric Choke is a special Black Plasma finished 650 CFM street carb with Annular Flow Booster technology for near-EFI-like drivability that you can feel as soon as you step on the gas. The AVS2 1906-CP features an annular ring with eight evenly spaced orifices that replaces the standard single brass tube (down-leg) fuel feed. The AVS2 booster ring distributes fuel into the airflow stream with an even spray that eliminates flat spots and greatly improves throttle response in the low-to mid-RPM range without sacrificing top-end power. The Black Plasma finish is applied is a 7 stage process to ensure the most durable and brilliant finish possible. Black Plasma has a deep gloss that reflects the surrounding colors for a beautiful effect. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to hold a tune when compared to other carburetors. Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today's fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. AVS2 Carburetors feature a two-piece design for easy tuning that allows you to make float level adjustments or replace internal components without draining the carburetor or removing it from the engine. The 1906-CP AVS2 650 CFM comes with an electric choke and is manufactured by Edelbrock in the USA.
- Annular Flow Booster technology
- Beautiful and Durable Black Plasma coating
- Easy to maintain finish
- Two-piece design for easy tuning
- Electric Choke
- Manufactured by Edelbrock in the USA
CARB Warning
For use on pre-1966 vehicles only
CARB Warning
For use on pre-1966 vehicles only
Edelbrock 1906-BP Specifications
Edelbrock 1906-BP Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1906-BP |
| Brand | Edelbrock |
| Carburetor Barrels | 4-Barrel |
| Fuel Type | Gasoline |
| Choke Type | Electric |
| CFM Range | 600-699 CFM |
| CFM | 650 CFM |
| Carburetor Flange Type | 4-Barrel Square Bore |
| Finish | Satin |
| Material Type | Aluminum |
| Color | Black |
| Secondary Type | Mechanical |
| Fuel Inlet Type | Dual |
| Gasket(s) Included | Yes |
| New or Remanufactured | New |
| Throttle Linkage Type | Universal |
| Supercharged Application | No |
| GENERAL | |
| Primary Jet Size | 0.101 |
| Secondary Jet Size | 0.098 |
| Sold in Quantity | Each |
