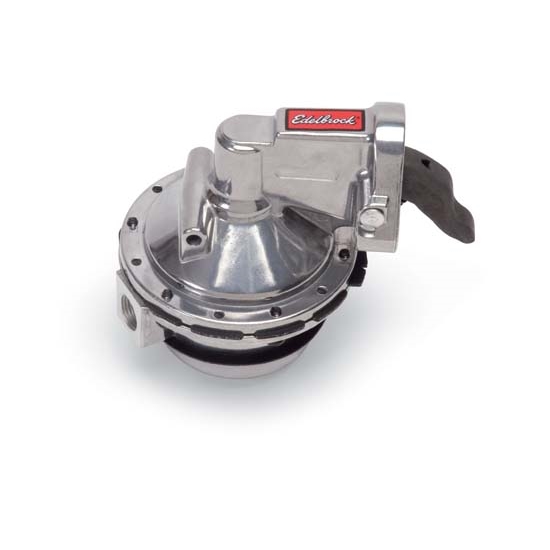

Edelbrock 1721 Performer Series Street Mechanical Fuel Pump, Chevy/GMC
5 Reviews
|
1 Question
- Has a hi volume 0.375 in. NPT inlet/outlet
- Engineered to improve flow quantity and quality
- Produces 6 psi and works with gasoline or mixed fuels only
See More
$168.95
each
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Gasoline Fuel Type, 110 GPH / 416 LPH Free Flow Rate
- Has a hi volume 0.375 in. NPT inlet/outlet
- Engineered to improve flow quantity and quality
- Produces 6 psi and works with gasoline or mixed fuels only
- Specifically designed for the small-block Chevrolet engines
- Features a unique valve design and will support engines with up to 550 HP
See more details
Key Specs
| Fuel Type | Gasoline |
| Free Flow Rate | 110 GPH / 416 LPH |
| Maximum Pressure | 6 psi |
| Fuel Pump Inlet Size | 3/8" NPT |
| Fuel Pump Outlet Size | 3/8" NPT |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyEdelbrock 1721 Details
Edelbrock 1721 Details
Designed for use with all Edelbrock carburetors used in Performer or Performer RPM applications. These high performance Street Fuel Pumps feature a high quality three stage polished finish.
- Small-Block Chevrolet
- Unique Valve Design
- Improves Flow Quantity/Quality
- Supports Engines Up To 550 HP
- Hi-Vol 0.375 in. NPT Inlet/Outlet
- Produces 6 psi
- Gasoline Or Mixed Fuels Only
Mounting face straight out to furthest point 4.427"
Center of mount bolts to bottom of pump 3.596"
Overall dia. 3.888"
Charts
Guides & Documents
Edelbrock 1721 Specifications
Edelbrock 1721 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1721 |
| Brand | Edelbrock |
| Fuel Type | Gasoline |
| Free Flow Rate | 110 GPH / 416 LPH |
| Maximum Pressure | 6 psi |
| Fuel Pump Inlet Size | 3/8" NPT |
| Fuel Pump Outlet Size | 3/8" NPT |
| Regulator Required | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 325-1721 |
| Inlet Attachment | Female Threads |
| Outlet Attachment | Female Threads |
| Notes | These fuel pumps are capable of supporting up to 600 horsepower. |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| GTIN Code | 085347017218 |
| Sold in Quantity | Each |
