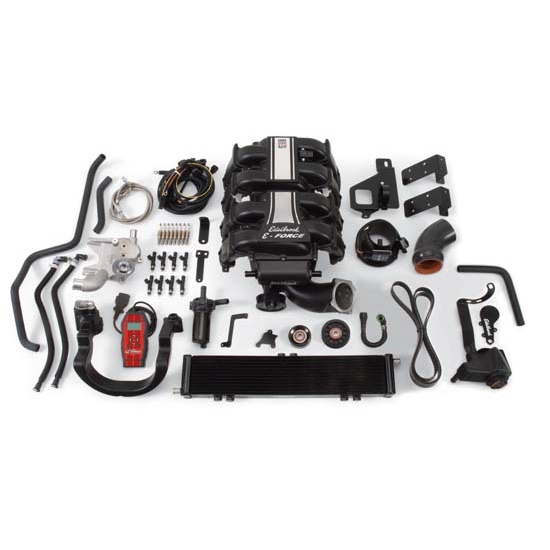

Edelbrock 1583 E-Force Ford F-150 Supercharger System Kit, 5.4L

#3251583

Edelbrock 1583 E-Force Ford F-150 Supercharger System Kit, 5.4L

This kit produces excellent horsepower and torque.
The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability.

$8,795.95

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Black Powdercoated, Pulley Included, Black

This kit produces excellent horsepower and torque.
The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability.
We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential.
Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft.
Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

See more details

Key Specs

D-215-89

MFG. Part #	1583
Brand	Edelbrock
CARB EO#

See more specs

Need To Know

Truck Shipment

Truck shipments must be pre-paid with a credit card, certified check or money order

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Edelbrock 1583 Details

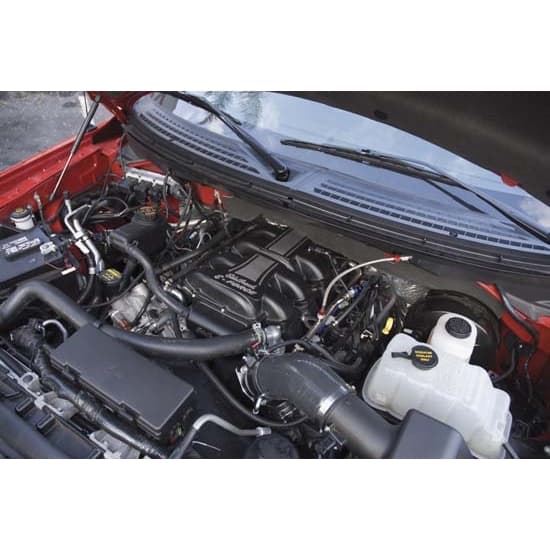

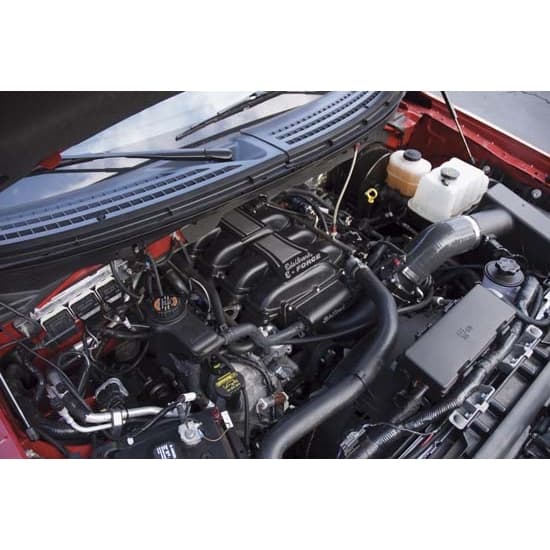

The Edelbrock Supercharger System part #1583 is for the 2009-10 Ford F-150 2WD 5.4L 3V. This kit produces excellent horsepower and torque.

This kit produces excellent horsepower and torque.
The core of this system is the Eaton Gen VI 2300 TVS rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability.
We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential.
Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft.
Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.

The Edelbrock #1583 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.

Guides & Documents

Superchargers Installation Instructions (3251583)

Superchargers Technical Information (3251583)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

CARB warning

Edelbrock 1583 Specifications

D-215-89

KEY SPECS
MFG. Part #	1583
Brand	Edelbrock
CARB EO#

GENERAL
Supercharger Finish	Black Powdercoated
Pulley Included	Yes
Pulley Style	Serpentine
Notes	For 4WD applications accessory kit EDL-15834 is required.
Sold in Quantity	Kit
Air Intake Kit Included	Yes
Fuel Rails Included	No
Fuel Pump Included	No
Finish	Powder Coated
Damper Included	No
Crankshaft Pulley Grooves	6-groove, serpentine
Computer Chip/ Programmer Included	Yes
Fuel Injectors Included	Yes
Regulator Included	No
Wiring Harness Included	Yes
Linkage Included	No
Intercooler Included	Yes
PTFE Lined Rotors	No
Belt Tensioner Included	No
GTIN Code	085347015832
Supercharger Pulley Included	Yes
Supercharger Model	TVS 2300
Color	Black
