Product Summary

6.4, Black Powdercoated, Pulley Included

    Key Specs

    MFG. Part #15172
    CARB EO#

    Need To Know

    Truck Ship

    Truck shipments must be pre-paid with a credit card, certified check or money order

    Quick and Easy Returns

    Return Policy

    Edelbrock 15172 Details

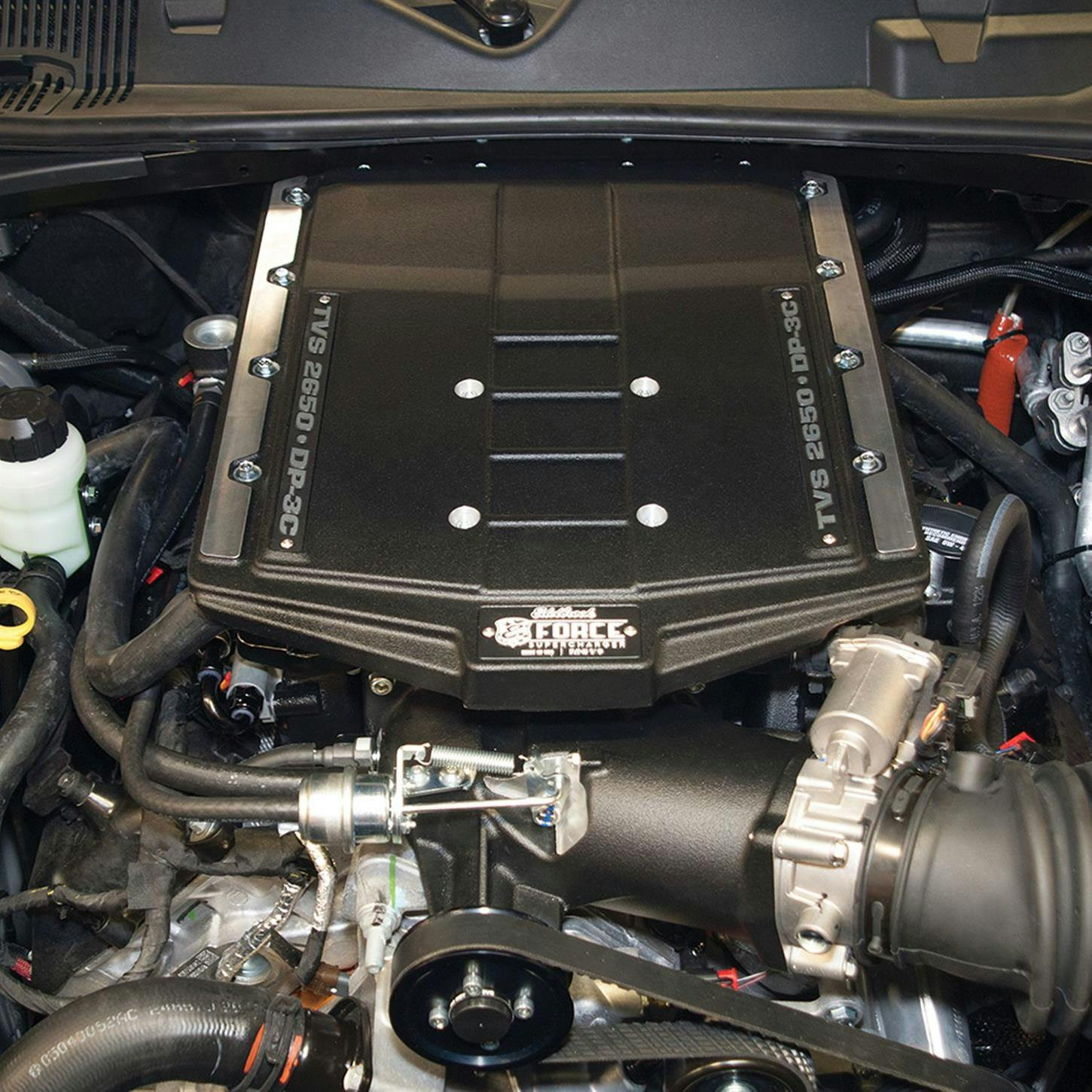

    The Edelbrock E-Force Supercharger System, part #15172, is designed for use with 2015-18 Dodge Charger and Challenger 6.4L cars. It delivers 572 horsepower and 531 ft/lb. of torque at the rear wheels. Featuring a unique design with minimal components makes it possible to fit an E-Force Supercharger under the stock hood.

    The core of this system is the Eaton Gen VI R2650 TVS Supercharger rotating assembly with a four lobe design with 170 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high capacity air to water intercooler and low temp heat exchanger.

    • 2015-2018 Dodge Charger/Challenger
    • Aluminum Housing
    • 133 mL Oil Capacity
    • 572 Horsepower
    • 531 ft/lb. Torque

    ALL 2015-Later Chrysler/Dodge Supercharger Systems WILL REQUIRE the ECM to be sent in for modification... HANDHELD PROGRAMMER NOT INCLUDED. This is an 8-10 day process/waiting period from the time they are received! Every step of the process is handled with next day shipping. Supercharger systems without tuners are not eligible for supplemental warranty. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program, which can be downloaded at For safety, the Edelbrock supplied program will retain the factory vehicle speed limiter setting.


    Edelbrock 15172 Specifications

    MFG. Part #15172
    CARB EO#
    Supercharger FinishBlack Powdercoated
    Pulley IncludedYes
    Pulley StyleSerpentine
    ModelTVS 2650
    Sold in QuantityKit
    Fuel Rails IncludedYes
    Fuel Pump IncludedNo
    Damper IncludedNo
    Crankshaft Pulley Grooves6-groove Serpentine
    Computer Chip/ Programmer IncludedYes
    Fuel Injectors IncludedYes
    Regulator IncludedNo
    Wiring Harness IncludedYes
    Linkage IncludedNo
    Intercooler IncludedYes
    PTFE Lined RotorsNo
    Belt Tensioner IncludedNo
    GTIN Code085347151721
