Product Summary

Carbureted Fuel System Type, Three Carburetor Quantity

  • Has a front 1-3/8" diameter oil fill
  • Carb spacing is 5-1/8" and is made right here in the USA!
  • Features a 1-1/4" road draft bosses and a raised fuel pump boss

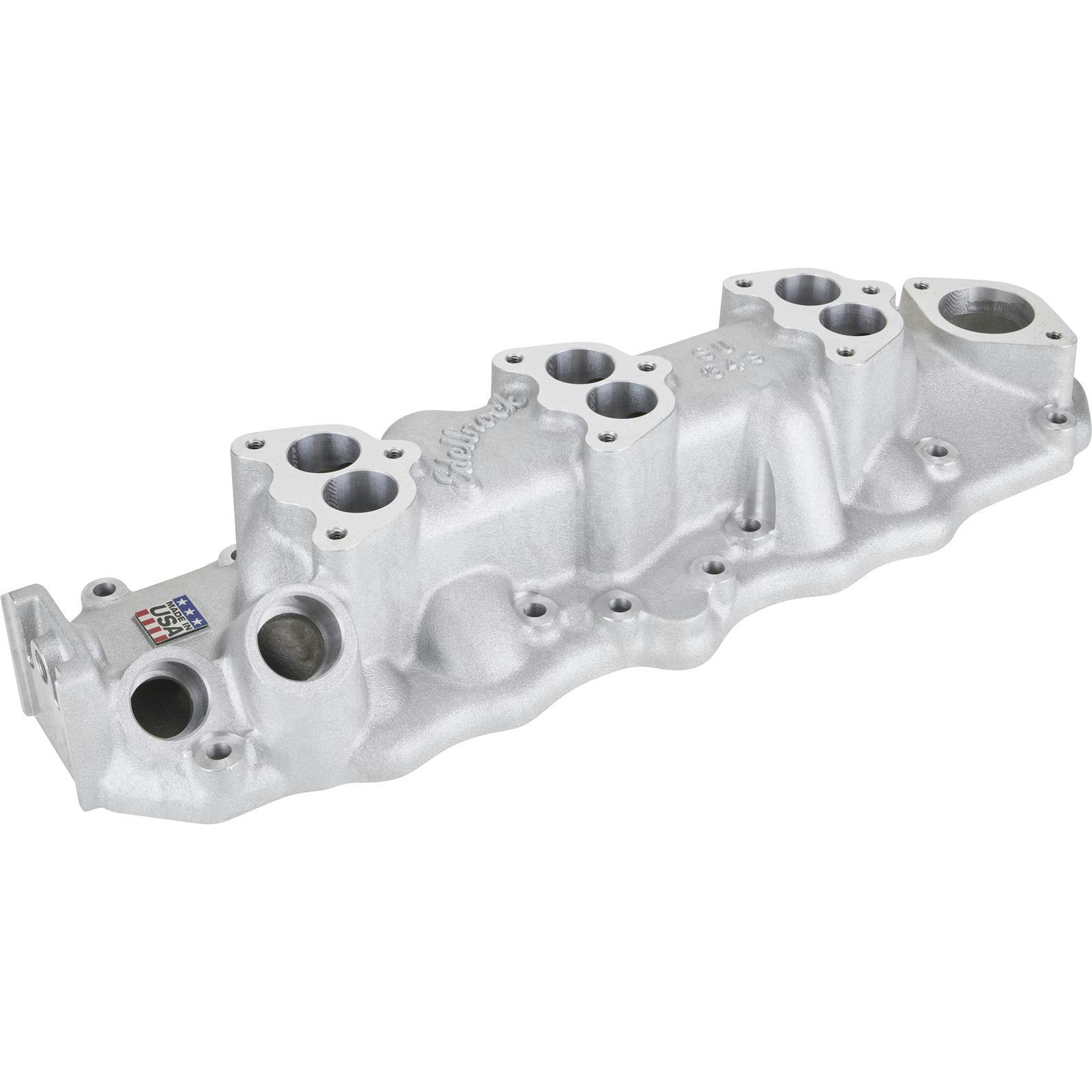

  • This triple deuce intake manifold is specially designed for the 1949-53 Ford Flathead
  • It will accept Stromberg 3-bolt (97 type), Holley 3-bolt, Ford 94 style 3-bolt and Demon 98 carburetors
See more details

Key Specs

MFG. Part #1109
BrandEdelbrock
Intake Manifold TypeDual Plane
Carburetor Flange Type2-Barrel 3-Bolt
Material TypeAluminum
See more specs

Need To Know

Quick and Easy Returns

Return Policy

Edelbrock 1109 Details

This reproduction of the vintage Edelbrock manifold #SU 349 allows the use of three 2-barrel carbs on a 1949-53 Ford flathead engines. Accepts Stromberg 3-bolt (97 type), Holley 3-bolt, Ford 94 style 3-bolt and Demon 98 carburetors. Carb spacing is 5-1/8".

  • For 1949-53 Ford/Mercury Flathead
  • Three Deuce carburetor style
  • Front 1-3/8" diameter oil fill
  • 1-1/4" road draft bosses and a raised fuel pump boss
  • Carb spacing is 5-1/8"
  • Made in the USA

Charts

Specs

Dyno Specifications:

  • Peak Power: 181.5 hp @ 4,500–4,600 rpm
  • Peak Torque: 237.9 lb-ft @ 3,100 rpm
  • Average Power (overall): 148.4 hp
  • Average Torque (overall): 225.3 lb-ft
  • Average Power (2,000–3,400 rpm): 120.5 hp
  • Average Torque (2,000–3,400 rpm): 233.8 lb-ft
  • Average Power (3,500–5,000 rpm): 174.5 hp
  • Average Torque (3,500–5,000 rpm): 213.3 lb-ft

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Edelbrock 1109 Specifications

KEY SPECS
MFG. Part #1109
BrandEdelbrock
Intake Manifold TypeDual Plane
Carburetor Flange Type2-Barrel 3-Bolt
Material TypeAluminum
GENERAL
Fuel System TypeCarbureted
Carburetor QuantityThree
FinishNatural
Gaskets IncludedNo
Overall Height3.66"
Port Height1.7"
Port Width1.3"
Oil Filler Tube Hole Diameter1.38"
Draft Tube Hole Diameter1.25"
Sold in QuantityEach
NotesRoad draft tube provision is 1", the OEM tube that comes up through lifter valley is 1-1/4" and will not slide up into this intake like original did without modification.
GTIN Code085347011094

Ratings & Reviews

5

1 Review

5

1 reviews

5

1

4

0

3

0

2

0

1

0

Filter by Ratings

I would buy again

5.0

a year ago

Davey

Pa

Verified

USA quality!

Would Recommend

Showing 1 of 1 reviews

Fitment
