E-Stopp ESK001 Electric Emergency Brake Kit

The E-Stopp® is the perfect e-brake for custom vehicles and winner of the 2012 NSRA new safety product of the year. It is a one button controller with one push to set and a second push to release. If wired direct to a battery source it can be activated with the key in the off position and the unit does require battery power to set or disengage.It not only frees up room on the chassis and in the cab but doubles as an anti-theft device when the button is hidden. It works with any kind of brake system that can accept an e-brake cable and can mount anywhere on the chassis that you have room. The electric parking brake kit comes with the actuator, the control box w/ switch and wire connectors all at an affordable price.

• One-touch, audible activation
• Replaces hand or foot operated e-brake handle
• 2012 NSRA new product award winner

Kit Includes:

• (1) 12v Control Box w/ micro computer, detachable button and optional ignition safety device
• (1) Actuator w/ rugged metal casing
• (2) Wire to wire Butt Splicers
• (3) Wire to battery Ring connectors

Note: Suggested e-brake cables may be necessary to purchase with this kit.

E-Stopp® - Dimensions:

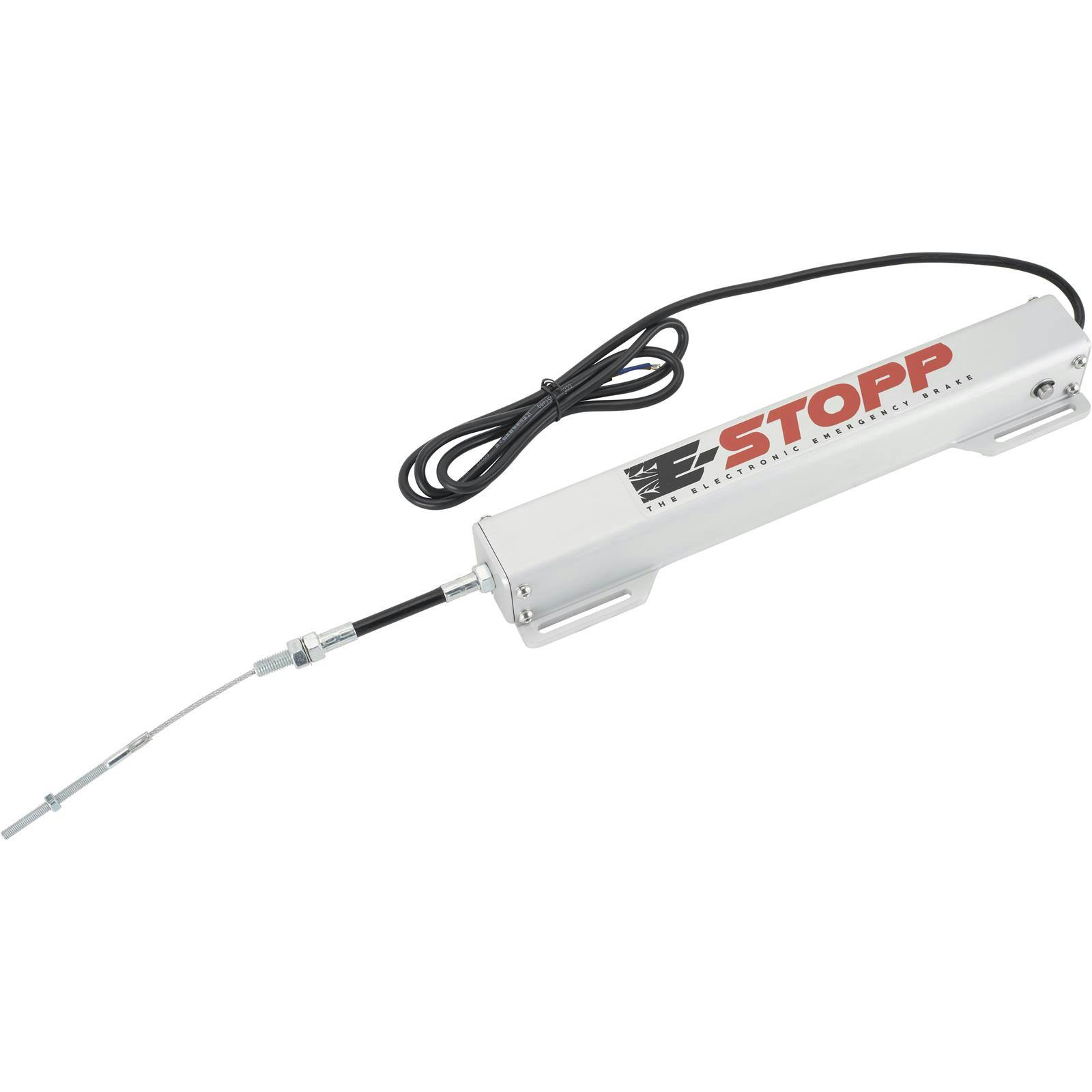

The Actuator:

• 24" Length Overall (including cable)
• 3 1/4" Overall Width (including mount bracket)
• 15" Length (not including cable)
• 2" Width (not including mount bracket)
• 1.8" Height
• 9" Brake Cable

*Note: Consider room needed to run the cable when positioning the actuator.

Cable Thread:

• 6mm x 1

The Control Box:

• 5.25" Length
• 3" Width
• 1.5" Height

Button:

• 1.1" Overall diameter (including bezel)
• .86” Main body diameter

Note: The unit has a one touch button and does not have a variable dial. Once the button is pressed the brakes are locked on to serve as a park brake and also a theft deterrent in some cases. Wiring in a different switch to control the activation rate would void the warranty.
