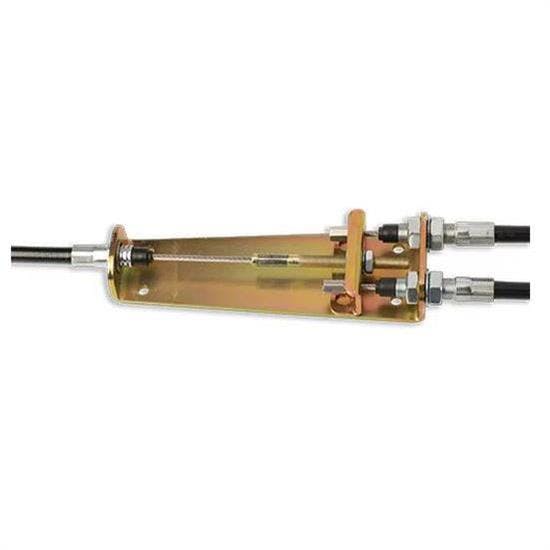

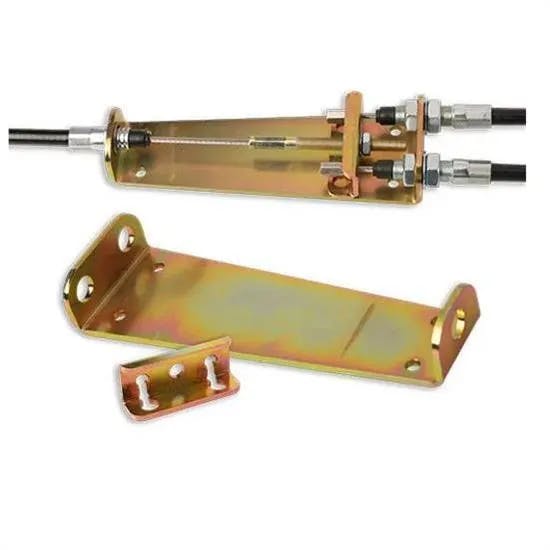

E-Stopp B-EZ200 Parking Brake Cable Connector Bracket
Universal Fit, 0.132" Material Thickness, Steel, Zinc
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- Parking Brake Cable Connector Bracket
- Sold each
10 gauge steel (0.132" thick)
2-1/2" wide on double side
1-5/8" wide on single side
1/2" i/d holes for cables
1/4" i/d mounting holes
Bolt pattern is 6" center to center on length
Bolt pattern is 1-/7/16" center to center on wide end
Bolt pattern is 1-1/4" center to center on narrow end
