Doug's Headers H1134 Exhaust Cut-Out Hook-Up Kit, 3-1/2 Inch

-9%

Doug's Headers H1134 Exhaust Cut-Out Hook-Up Kit, 3-1/2 Inch
Doug's Headers

|

#4471134

Doug's Headers H1134 Exhaust Cut-Out Hook-Up Kit, 3-1/2 Inch

Diameter:

3-1/2 Inch

2-1/2 Inch3 Inch

$163.06

/pair

Factory Shipped

$179.37

Save $16.31

Garage Sale alternatives: from $143.99


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, 12.00" Overall Length, Mild Steel

    See more details

    Key Specs

    MFG. Part #H1134
    BrandDoug's Headers
    Exhaust Tubing Diameter3-1/2 Inch
    FinishZinc Plated
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    Doug's Headers H1134 Details

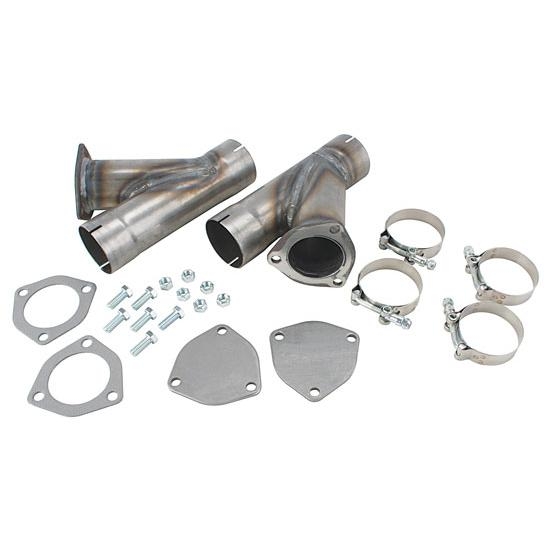

    Avoid an expensive trip to the muffler shop by using this cut-out hookup kit when installing our electric exhaust cut outs. Some fabrication required but no welding nescessary. Kits are sold as a pair and come with mounting hardware.

    These hook-up kits are made for our electric cut-outs but can be used for other applications.

    • Overall length of pipe = 12.00"
    • Length of stepped pipe splicing into exhaust = 2.00" each side
    • Center pipe length (between stepped pipes = 8.00"
    • Cut out length (center of weld to edge iof flange) = 9.50"
    • 31.4 degree angle

    Specs

    Doug's Headers H1134 Specifications

    KEY SPECS
    MFG. Part #H1134
    BrandDoug's Headers
    Exhaust Tubing Diameter3-1/2 Inch
    FinishZinc Plated
    GENERAL
    GTIN Code694342519254
    Overall Length12.00"
    Overall Height4.80"
    Overall Width8.50"
    Mounted Length7.25"
    Material TypeMild Steel
    Flange Thickness.24"
    Bolt Hole Pattern3 on 3.84"
    Gasket(s) IncludedYes
    Hardware IncludedYes
    Sold in QuantityPair
    NotesIncludes block off plates and clamps. 32 degree angle. Cut out length is 5.50" Expanded ends are 2.25" long on both sides.

    Ratings & Reviews

    4.5

    2 Reviews

    Overall Assessment

    Customers appreciate the excellent construction quality, noting the superior welding and finish. Its practical design facilitates easy installation without any need for internal clean-ups. Users have also adapted our product for various applications, such as modifying it to fit larger collectors on their roadsters. This adaptability reflects its exceptional usability and versatility. Despite facing some challenges with size mismatch, customers successfully managed adjustments due to the product's adaptable structure, further showcasing its superior traits in comparison to competitive products.

    Write A Review

    4.5

    2 reviews

    5

    1

    4

    1

    3

    0

    2

    0

    1

    0

    Filter by Ratings

    Excellent construction, welds are very nice

    5.0

    9 years ago

    David King

    Anaheim

    Verified

    Used on my pro-street Dart. Very nice finished product. They did not need any cleaning up on the inside, just hooked it right up and was ready to go.

    Would Recommend

    had to modify for my application

    4.0

    13 years ago

    John

    Idaho

    I wanted the larger 3 1/2 collectors for my roadster had to build a reducer to match 2 inch exhaust to the 3 1/2 inch collector. I could not find a neck down adapter that can match a 2 inch exhaust pipe to the 3 1/2 collector. I built one and it worked out good.

    Would Recommend

    Showing 2 of 2 reviews

    Questions & Answers

    2 Questions • 3 Answers

    3 1/2 collectors ( block off plate) I bought these from you they are zinc coated. do they make the block off plate in chrome or stainless for better looks???? the zinc coated one just don't look that good.

    by John

    • 13 years ago

    1 answer

    View Answer

    3.5 inch cut outs what is 3.5 inch referring too? pipe I D or pipe O D or size of plate bolt pattern, end plate size at the end of cut out

    by John

    • 13 years ago

    2 answers

    View Answers

    2 of 2 questions shown
