Product Summary

Universal Fit, Steel, 0.188" Tube O.D., Zinc

    Comes as a Kit

    Key Specs

    BrandSpeedway Motors

    Need To Know

    Free Shipping on Orders Over $149

    Shipping Policies & FAQs

    Quick and Easy Returns

    Return Policy

    Details

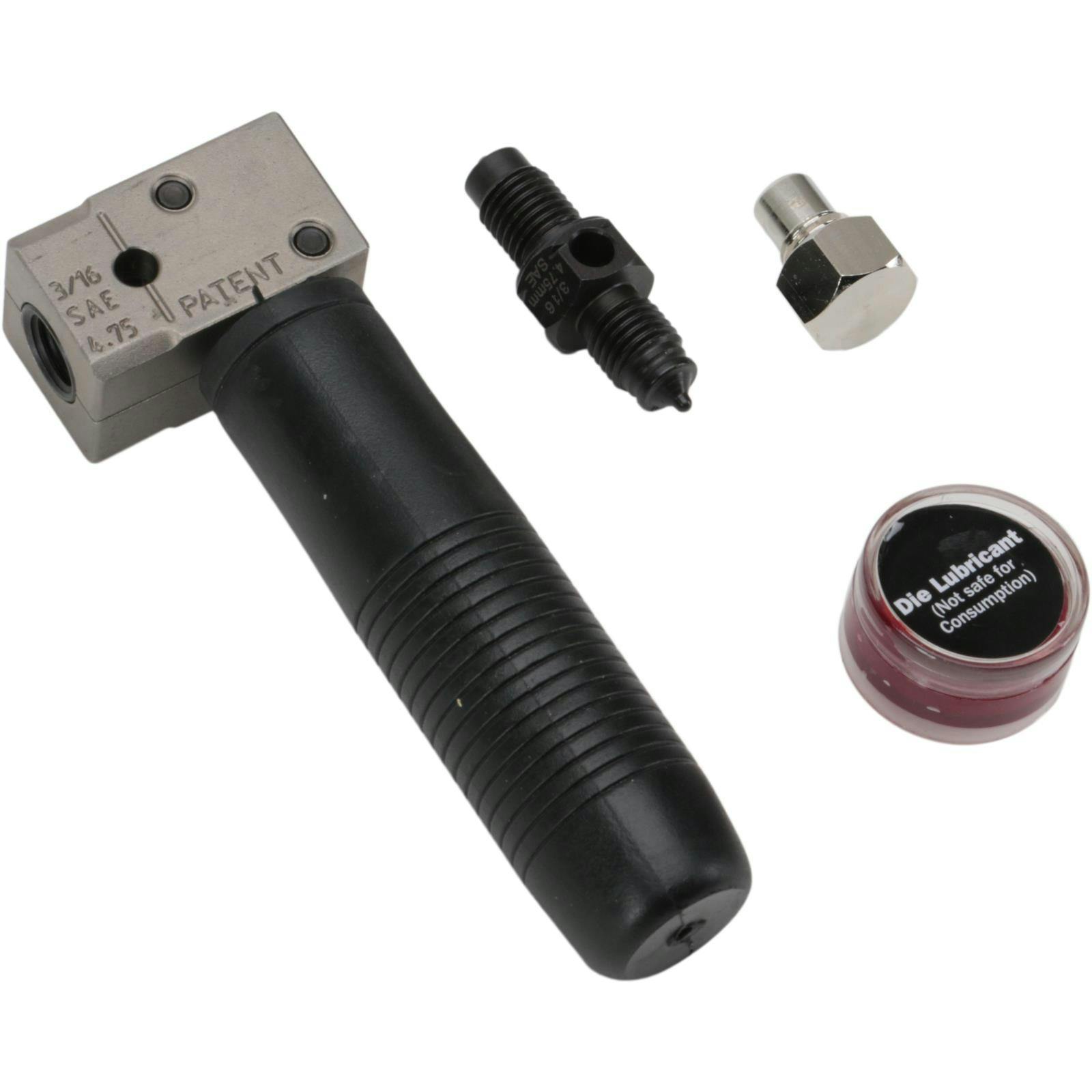

    Compact and easy to use 3/16 tubing flaring tool that can be used in the tightest of areas to repair a brake line. The handle can be removed and the head of the tool can be mounted in a bench vise so you can make several flares with ease. This tool makes 3/16" SAE Double Flares.

    Double Flaring Brake Line Tool

    • 45-Degree Flaring
    • Produces high-quality double flares
    • For use on 3/16" steel, nickel, and copper tube
    • Lightweight and easy to use
    • Use on car or bench vise

    3/16 Inch Steel Brake Line, 25 Foot Roll

    Here's the item for added strength and durability; zinc coated steel brake line. Available in a 25' roll of 3/16" line, no nuts included.

    This line bends easily and smoothly with hand tools and can be flared with a 37° AN flaring tool, or 45° double flaring tool. Use in conjunction with our 3/8"-24 inverted flare male brake line nuts, or AN tube nuts and sleeves.

    Inverted Flare Thread Nuts

    • These 3/8"-24 inverted flare nuts are for use with 3/16" steel brake line
    • Brake line will need to be double 45 degrees flared using a flare tool such as part number 91089525 or 72851535
    • Premium steel construction for use in high-pressure brake line applications
    • Zinc plated for corrosion resistance
    • Includes a bag of 5

    Used in conjunction with Inverted Flare Fittings,  Pipe To Inverted Flare Fittings, and -AN to Inverted Flare Fittings.

    Charts

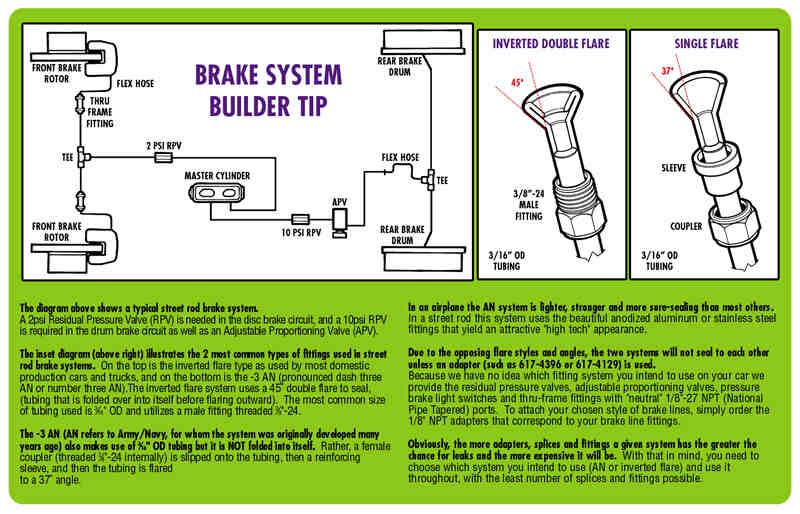

    Brake System Builder Tip (GIF)

    Learn more about flaring lines and how to select proper automotive fittings by reading our tech article. The Principles of Automotive Fittings

    Brake System Builder's Tip (Link)

    Specifications

    KEY SPECS
    BrandSpeedway Motors
    GENERAL
    Material TypeSteel
    Tube O.D.0.188"
    Overall Length25 ft.
    Thread Pitch3/8"-24 IFM
    FinishZinc
    Sold in QuantityKit
