#5601004
Double End Carburetor Linkage, 3-1/2 Inches Long
- Universal Fit
- Steel construction
- 3/16" LH/RH thread pitch
$18.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, 5.25" Overall Length, Steel, Zinc Plated
- Universal Fit
- Steel construction
- 3/16" LH/RH thread pitch
- Zinc plated
- 5-1/4" overall length
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyOffenhauser 5601004 Details
Offenhauser 5601004 Details

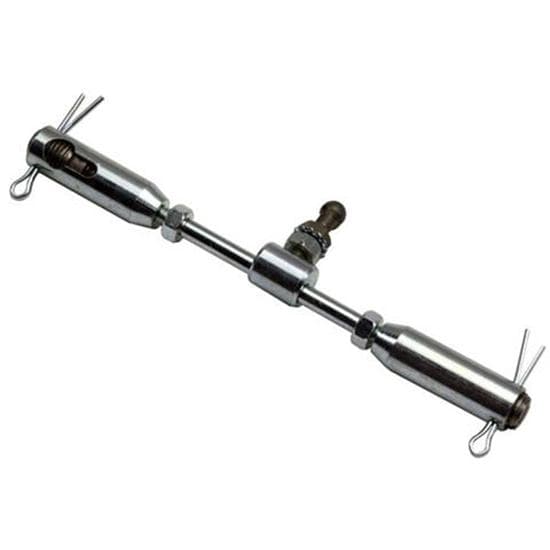

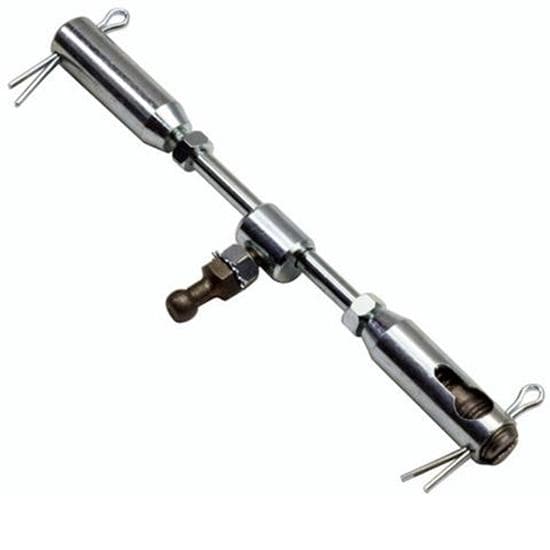

3/16" steel rod carburetor linkage with double adjustable ends. This linkage can be adjusted to fit carb spacings approximately 4-1/4" to 4-3/4". The threads at the end of the central rod are 10-32 (3/16 fine) RH on one end, LH on the other.
For use with 9 Super 7, Stromberg 97, and Demon 98 carbs.
Offenhauser 5601004 Specifications
Offenhauser 5601004 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 5601004 |
| Brand | Offenhauser |
| Overall Length | 5.25" |
| Material Type | Steel |
| GENERAL | |
| Thread Pitch | 3/16" (10-32) RH/LH |
| Finish | Zinc Plated |
| Sold in Quantity | Each |
| Notes | Adjustable to fit carb spacings between 4.25" - 4.75". |
Ratings & Reviews
4.8
26 Reviews
The product is lauded for its design, primarily focused on safety and usability. Particularly suited for choke and throttle linkages, it has scored highly in performance, especially in the dual carb setup. Quality and perfect fit were underlined, asserting its superiority over common stock ends. Some users noted the necessity for careful adjustments, but despite this, the product remains a firm preference. One user reported an issue with the spring-loaded sockets, however it wasn't a common problem. Overall, customer satisfaction was high, with several repeats purchases and a strong trend towards recommendations.
Ratings & Reviews
4.8
26 Reviews
The product is lauded for its design, primarily focused on safety and usability. Particularly suited for choke and throttle linkages, it has scored highly in performance, especially in the dual carb setup. Quality and perfect fit were underlined, asserting its superiority over common stock ends. Some users noted the necessity for careful adjustments, but despite this, the product remains a firm preference. One user reported an issue with the spring-loaded sockets, however it wasn't a common problem. Overall, customer satisfaction was high, with several repeats purchases and a strong trend towards recommendations.
4.8
26 reviews
5
25
4
0
3
0
2
0
1
1
Most Liked Positive Review
5.0
Awesome
Choke linkage for dual Holley 94's. Quality product. Length turned out great for me. Though I have an old edelbrock intake and carb spacing is different from the newer models. The spring that pushes the cup against the ball is overkill. Could've done with shorter spring. Tough to push and hold back while installing. But it sure holds nice
Most Liked Negative Review
1.0
Does not fit the balls.
The the spring loaded sockets are dished too deeply. They hit the shank of the ball stud before they close on the ball causing a bind. This happens both on the Holley 94 carb and on the ball stud provided with the linkage.
Filter by Ratings
Awesome
5.0
7 months ago
Matt
Washington
Verified
Choke linkage for dual Holley 94's. Quality product. Length turned out great for me. Though I have an old edelbrock intake and carb spacing is different from the newer models. The spring that pushes the cup against the ball is overkill. Could've done with shorter spring. Tough to push and hold back while installing. But it sure holds nice
Would Recommend
yes
5.0
10 months ago
old man
phoenix
Verified
ok
Would Recommend
I would buy this product again.
5.0
a year ago
Max
Milwaukee
Verified
Decent affordable linkage for carburators
Would Recommend
Affordable linkage for your carburaters
5.0
a year ago
Max
Milwaukee
Verified
Used for 2x2 setup on flathead.
Would Recommend
Yes
5.0
a year ago
Hotwheels
Canton ga
Verified
Good part fits goog
Would Recommend
I would buy again,works great!
5.0
2 years ago
Model a guy
Joplin,mo
Verified
I bought this to use on dual 94 holley carburetors.
Would Recommend
I would buy again.
5.0
2 years ago
Model a guy
Joplin,mo
Verified
I used this on holley 94 carburetor. Worked just fine.
Would Recommend
I would buy again
5.0
4 years ago
Bill
Divide Co
Verified
Looked and worked great
Would Recommend
Yes I would.
5.0
4 years ago
AlFord
Garfield, Wash.
Verified
I connected my 97,s chokes with it.
Would Recommend
Does not fit the balls.
1.0
5 years ago
Just want it to work.
Kansas.
The the spring loaded sockets are dished too deeply. They hit the shank of the ball stud before they close on the ball causing a bind. This happens both on the Holley 94 carb and on the ball stud provided with the linkage.
Would Not Recommend
Showing 10 of 26 reviews
Questions & Answers
Questions & Answers
3 Questions • 4 Answers
Can the center ball be removed without damage to the rod? Are the ball diameters needed on either end and the center one provided 1/4"? Are these suitable for throttle control?
by Kendall
• 9 years ago
1 answer
View Answer
What diameter ball does this clip on to. Mine are 1/4" dia. balls.
by Rustynail
• 14 years ago
2 answers
View Answers
When I measure the distance on my 97, mounted on an Offy intake, I get 4.5 inches, Does the three and a half inch screw out that far?
by capelink
• 15 years ago
1 answer
View Answer
3 of 3 questions shown
