Detachable Winch Mount For Trailer Floor

• Bolt on trailer winch mount provides quick and easy removal of winch when needed
• Free up trailer floor access when using your trailer for other projects
• Bring your winch inside during harsh weather vs relying on a winch cover
• Lower winch mount plate bolts to trailer floor/deck with included 1/2” hardware
• Upper winch mount plate features standard 10x4-1/2-inch winch mount bracket pattern
• Keyhole slots secure upper plate to lower with 10,000 pound linear pull strength
• Upper plate is secured by 5/16-inch clevis pin and clevis, or user provided padlock
• Winch plates made from 1/4” and 1/2” A36 plate steel and satin black powder coated
• Fits popular winch assemblies up to 10K pounds (winch mounting hardware not included)

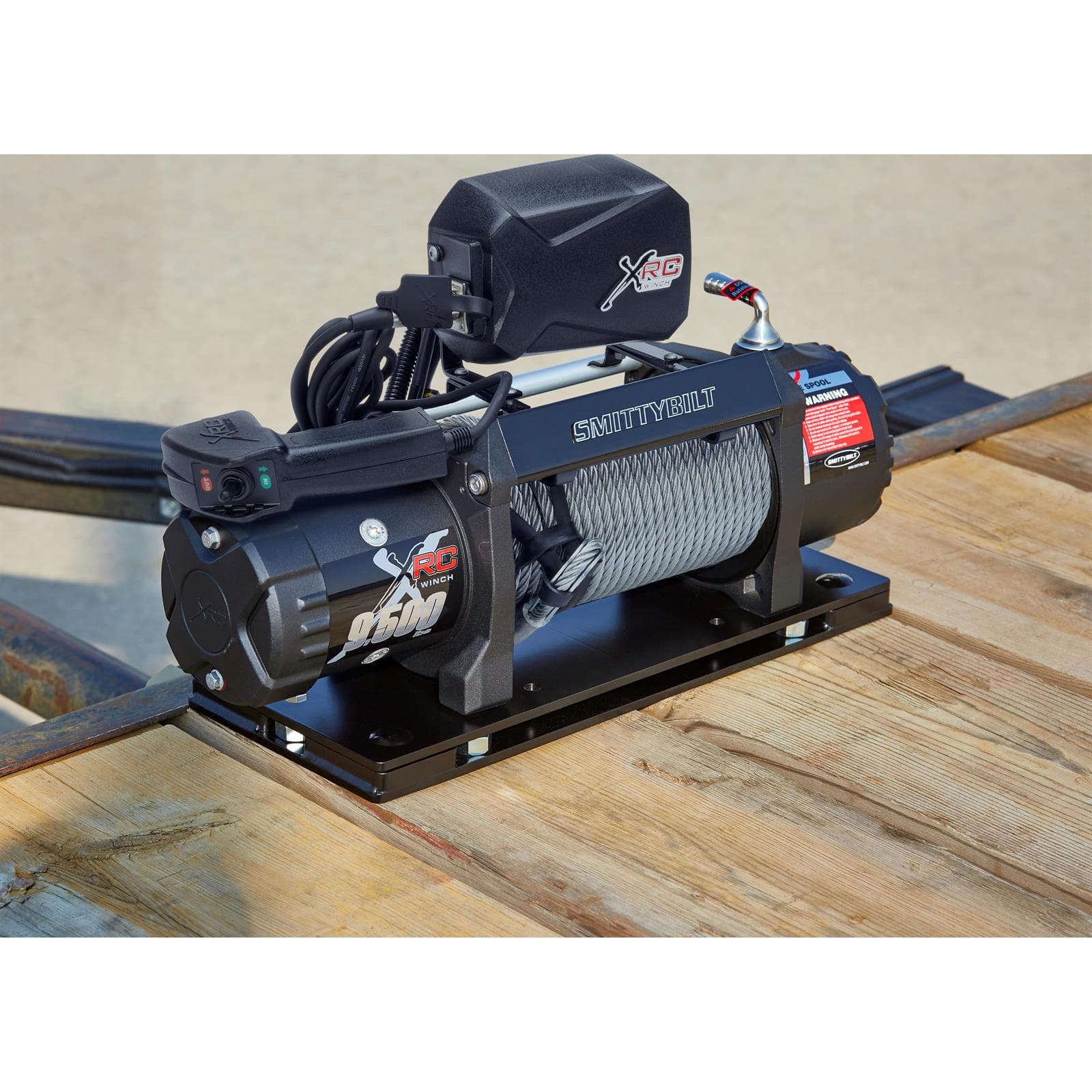

• Winch shown for illustration purposes only, not included

Store Your Winch When Not in Use with Our Quick Release Winch Mounting Plate

No matter if you’re using an open or enclosed trailer for your race car or show car, a winch is a fantastic addition to your trailer’s functionality. Loading your race car or show car becomes a one person job with a capable winch installed. And if you’re a weekend “barn find” hunter a winch is necessary to pull those finds out of the proverbial barn or when they’re stuck up to their hubs in muck. But what about those times your trailer ends up helping a friend move their apartment full of furniture or you use your trailer to bring home those kitchen appliances you bought for your kitchen renovation project? It is times like those that your winch is, frankly, in the way and taking up valuable floor space. What if you could simply disconnect your winch’s wiring and remove your winch from your trailer for additional room? Or perhaps you wish to remove your winch for security purposes or during open trailer storage to keep it out of the elements? Well now you can with our detachable car trailer winch mount bracket kit.

Disconnect And Remove Your Trailer’s Winch in Minutes

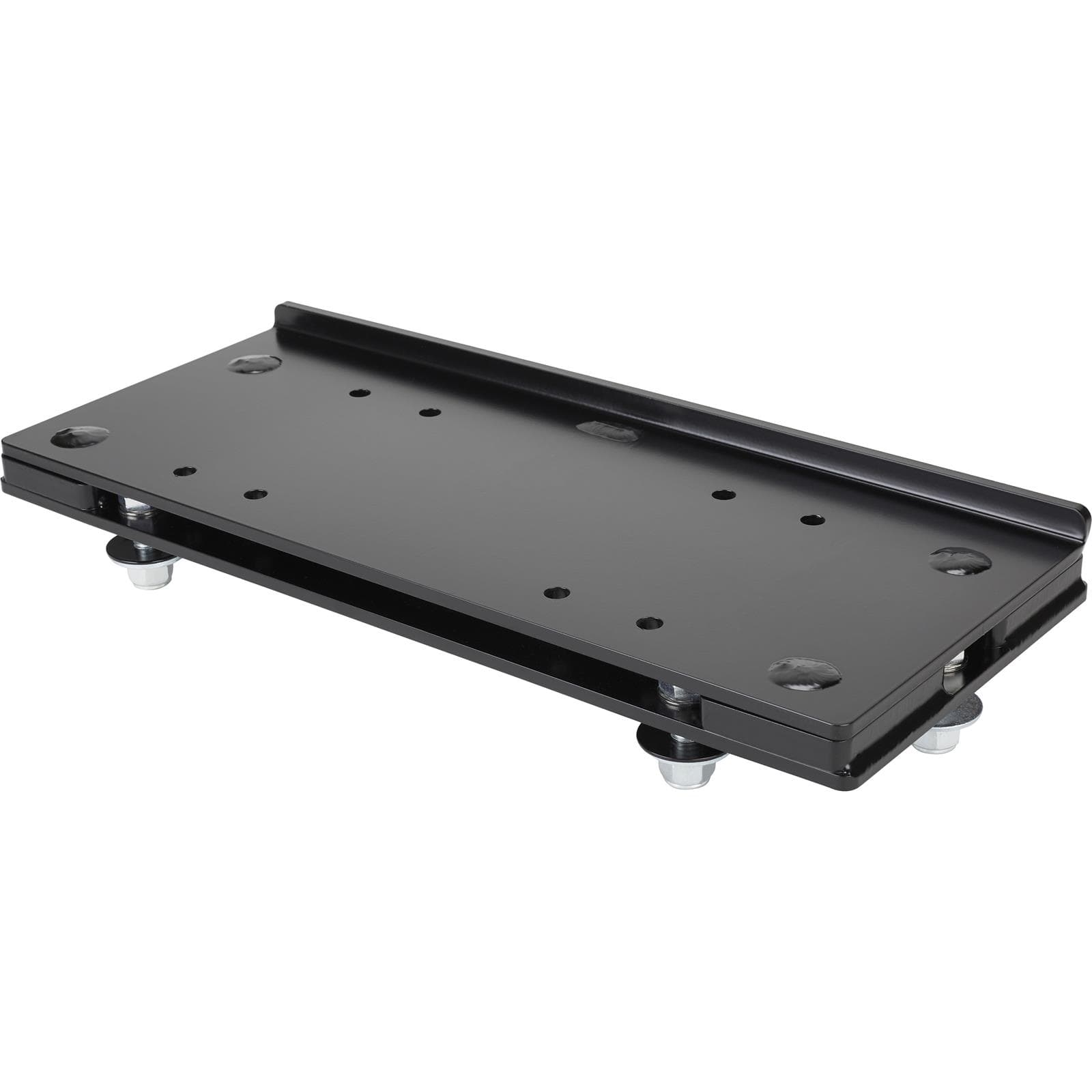

Securely mounting your winch to a structural member of your trailer deck or floor is paramount to proper winch use. However, this solid mounting makes removal of your winch for when it isn’t needed difficult. You literally would have to get under your trailer’s deck or tongue and unbolt your winch. This puts undue wear on the attaching hardware, is time consuming, and often requires a second set of helping hands. Our removable winch mount for trailer use is a two piece assembly consisting of a trailer winch mount floor plate that attaches in the traditional way with through bolts, and a removable winch mounting plate that features a standard 10x4-1/2-inch winch mounting pattern for winches such as the Smittybilt XRC-9.5K Gen2 winch. The floor plate and the removable trailer winch mounting plate lock together via four robust CNC machined keyhole mounts and are secured via a 5/16-inch clevis pin (or optionally a 5/16-inch shackle padlock for additional security).

Having the ability to quickly remove your car or utility trailer’s winch is even more important on open deck trailers that are stored outside. No longer do you have to rely on a winch cover that can easily disappear in a strong wind, or the ordeal of trying to wrap your winch in heavy plastic lawn bags to protect it from snow and rain. Simply pull the clevis pin (or remove your padlock) and slide the winch mount bracket top plate back to disengage the keyhole mounts and you can bring your winch safely inside away from the elements and those looking to possibly make off with your winch in the dead of the night. You could even purchase additional winch mount bracket floor plates, which would allow you to move a single winch between multiple trailers or different positions on the same trailer.

Laser Cut and CNC Machined Components for Strength and Precise Fit

We know an 8,000-10,000 pound capacity winch can put a lot of strain on a mount, which is why we laser cut our floor plate and winch plate from 1/4-inch thick A36 plate steel. The keyhole mounts are CNC machined from 1/2-inch thick A36 plate steel and precisely jig welded to the floor plate. The complete assembly is given a satin black powder coat finish for durability and lasting appearance. Tolerances are kept in check to ensure that, even with powder coating, the winch plate can easily disengage from the floor plate with minimum effort. High temperature grease is recommended between the two mounting surfaces where the keyholes and lock pins make contact.

Winch Base Plate Can Be Mounted to Wood or Steel Trailer Surfaces

Mounting your car trailer winch mount bracket floor plate is critical to the floor plate and winch’s overall ability to winch a vehicle into place. We have tested our floor plate to 10,000 pounds of pulling force, but the floor plate must be securely mounted to reach and maintain this rating. Included with the winch floor mount plate is robust 1/2-inch mounting hardware, including additional large washer plates, to prevent pull through on wooden plank trailer flooring, which is common to open trailers. We highly recommend mounting the winch floor plate to structural steel cross bars or dedicated trailer winch mount platforms if possible.

So, whether you need the floor space in your to help your friends move into their new place, or you just want to sleep a little better at night knowing your winch is safely stowed on the shelf in your garage or shop for the winter, our removable trailer winch mounting plate kit is the perfect solution to getting your winch off your trailer’s deck with little effort. Add a high amp quick connect to your battery wiring and you’ll have a tool free disconnect that takes mere seconds to free your winch from your trailer.
