Deluxe '27 T-Bucket Frame Kit w/ Standard Body, Unchanneled Floor

Looking for a little more interior room and a lower profile in your T roadster? Then try our Deluxe 27 T! The all-new Deluxe 27 frame features the same triangulated four-bar rear suspension as the Deluxe T, but with a longer wheelbase and extended rear frame section to accommodate Speedways high-quality fiberglass 27 T roadster body. The body-and-frame combo can be used to build a hot rod with the same open engine bay and fenderless look of a T-bucket, but offers a lower seating position and a lot more legroom. Try it on for size!

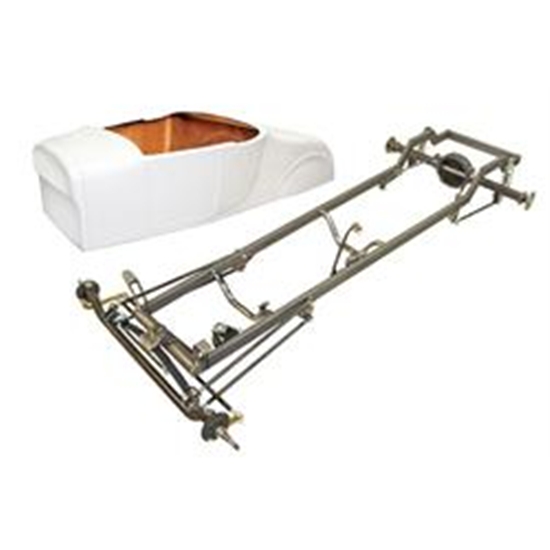

Shown with optional rearend and engine mounts installed. This part number does not include a rear axle housing or engine/transmission mounts (as pictured). If you wish to add these items to your chassis, simply purchase these items along with your frame kit.

Rear Axle Housing Option:

Part# 715700 - Speedway Ford 9 Inch Rear Axle Housing Kit for T-Bucket Chassis, 31-Spline, 56 Inch Width.

• Includes an all-new housing, tubes and new-style big Ford ends, lifetime warranty, 31-spline axles with dual bolt pattern (5 on 4.5" and 5 on 4.75") and new axle bearings.
• Necessary suspension brackets will be welded to the housing, according to which chassis you order.
• Option is only available with the purchase of a T-Bucket frame.
• Center section NOT included.

Engine / Transmission Crossmember options available:

Part# 715500 - Small Block Chevy and TH350 Auto Trans Mount Option For T Frame Kit

• This T frame kit option includes tubular engine and transmission crossmembers welded into a '23 or '27 T-Bucket frame. Will accept S/B Chevy engine and TH-350 or TH-400 transmissions.

Part# 715600 - Small Block Ford and C4 Auto Trans Mount Option for T Frame Kit

• This T-frame option will include tubular engine and transmission crossmembers welded into your '23 or '27 T-Bucket chassis. Will accept S/B Ford engine and C-4 transmission only.
• Due to clearance issue with the Vega steering box, you will need to either remote mount the oil filter or make use of the 90 degree oil filter adaptor # 910-6880.

Note: When ordering either of these options with a T-Bucket frame kit, the frame will be shipped with these crossmembers welded to it.  As such, this engine/transmission crossmember option must be ordered with a T frame kit.   This is not available separate of a T frame kit.

All of our T kits are also available with chrome suspension. This option includes chrome plated: front and rear hairpins, rear coilovers, front axle, front leaf spring, front shocks, steering arms, tie rod, drag link, and related hardware.

This product requires a 3-4 week build time.

Cancellation Policy Notice

Please note that any order canceled after submission but prior to shipment will incur a $200 cancellation and restocking fee.

Item Details

Frame Assembly

• 1-1/2 x 3 " rectangular steel tube frame with 116 " wheelbase
• 3 " O.D. round tube front crossmember
• Spring-behind front suspension with 4 " drop tube axle
• Urethane-bushed front four bars and panhard bar
• Choice of '37-'48 Ford or '49-'54 Chevy-style spindles with king pins fitted
• Combination headlight and front shock mounts
• Innovative triangulated four-bar rear suspension with urethane bushings anc coilover shocks
• Cross steering with Vega steering box
• Frame assembly includes: front spring, axle, spindles and panhard bar; rear coilover shocks and panhard bar; front and rear four bars with urethane bushings; Vega steering box; master cylinder, bracket and pedal
• Available with plain (PLN) or chrome (CHR) suspension components

Standard Body Part# 7152755

• Rugged 1-piece fiberglass body
• Non-functioning doors
• Body lip around top edge to attach upholstery
• Available with a flat un-channeled floor

Front End Assembly Note: Plain (Raw) front end kits ship assembled on the frame. Chrome and Stainless Steel front end kits ship unassembled to protect the finish during shipping and require final assembly.

Chassis Exploded View (JPG)

• Body Dimensions

  • Firewall Width:  29"
  • Firewall to Back of Dash:  16.5"
  • Firewall to Back of Seat:  55"
  • Firewall to Center Line of Rear Axle:  75"
  • Widest Point of Body:  49"
  • Body Height:  24"
  • Rear Width:  42"
