Part # 1336239003M

DeWitts® 6239003M 1968-72 Chevelle BB LS Conversion Radiator





Factory Shipped

This part will be shipped by the manufacturer. We estimate this item will ship on or before December 16th.


Select a vehicle to verify Fitment

Product Summary

68-72 Chevy Chevelle, Double Pass Radiator Style

    Key Specs

    MFG. Part #32-6239003M
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishBlack Ice Epoxy Coating

    Need To Know

    This Product Will Ship Free

    Need help? Call 800.979.0122

    Quick and Easy Returns


    The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish. Select combos are also available with chrome fans.

    All DeWitts® aluminum radiators can also be configured for your LS engine upgrade. The inlet and outlet connections are designed to match the new engine, and include an electric fan mounted directly to the radiator and. A small connection is also added for a steam line.

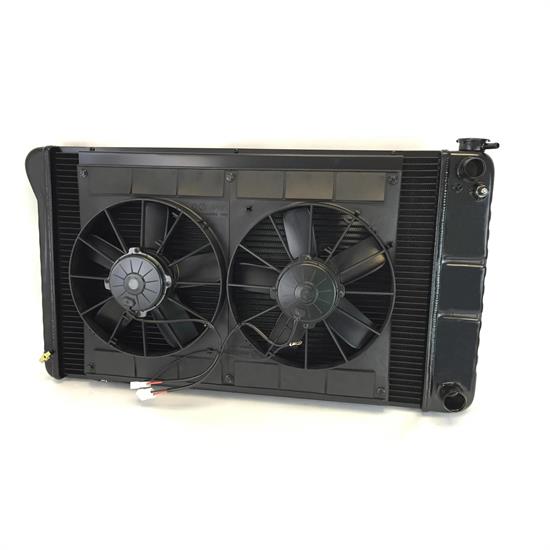

    This radiator is a Direct Fit® for this vehicle when equipped with an LS engine and manual transmission. Inlet and outlet are on the passenger side. Features factory type press formed end tanks, dual row core, and serpentine fins and provides 30% more cooling than the stock copper unit at half the weight. Features dual 11" Spal fans with 2780 CFM. It is epoxy free and will fit into the stock core support. Radiator comes with 2 rows of 1" tubes, dual fans, billet DeWitt's cap, temp sensor in the radiator, stem line, relays, and wiring.

    • Direct Fit® with no modification
    • Epoxy free, aluminum, dual row core
    • 1" tubes
    • Press formed end tanks
    • Assembled and brazed in Howell, MI



    MFG. Part #32-6239003M
    Radiator StyleDouble Pass
    Radiator Flow DirectionCrossflow
    Material TypeAluminum
    FinishBlack Ice Epoxy Coating
    Inlet LocationUpper passenger side
    Outlet LocationLower passenger side
    Row Quantity2
    Tube Size1.00"
    Overall Width Range33.00" to 33.99"
    Overall Width33.00"
    Overall Height Range18.00" to 18.99"
    Overall Height18.50"
    Overall Thickness3.25"
    Core Width Range28.00" to 28.99"
    Core Width28.25"
    Core Height Range18.00" to 18.99"
    Core Height18.50"
    Core Thickness2.25"
    Cooling FanDual
    Transmission CoolerNo
    Shroud IncludedYes
    Inlet Size1.25
    Outlet Size1.50
    Amperage26 amps
    Fan IncludedYes
    Radiator Cap IncludedNo
    Fan Diameter11 Inch
    CFM2780 CFM
    Blade MaterialPlastic
    Shroud ColorBlack
    Shroud MaterialAluminum
    CFM Range2,700-2,799 CFM
    Sold in QuantityEach
