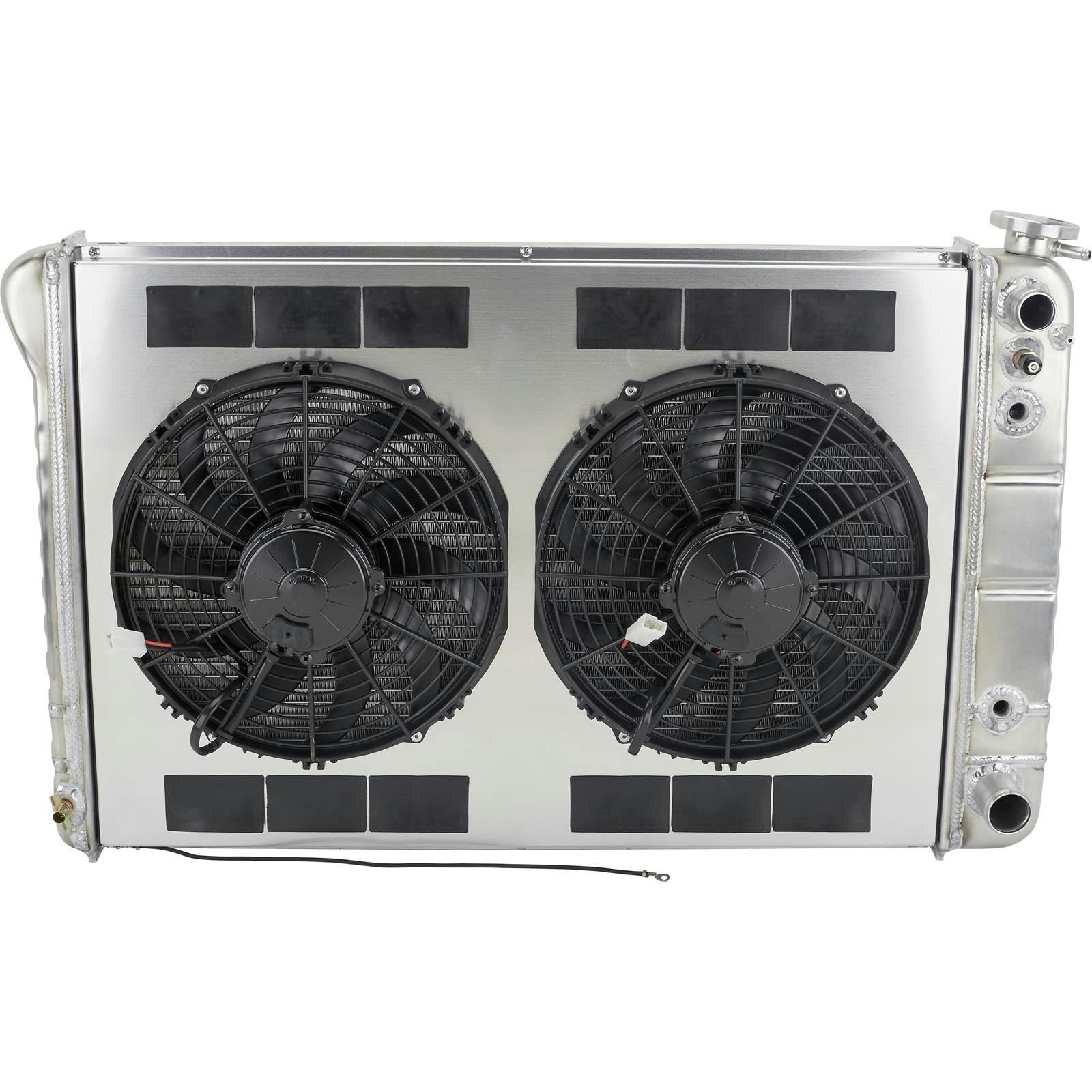

DeWitts® 32-6139019A LSX Conversion Radiator, 1973-87 C10

#1336139019A

DeWitts® 32-6139019A LSX Conversion Radiator, 1973-87 C10

Standard LSX configuration has both inlet and outlet on the passenger side
Each package includes an electric fan with the temperature switch mounted in the end tank
Include a steam line connection, custom billet DeWitts® radiator cap, and complete electrical wiring kit

$1,637.99

/each

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Double Pass Radiator Style, Aluminum, 2 Row Quantity

Standard LSX configuration has both inlet and outlet on the passenger side
Each package includes an electric fan with the temperature switch mounted in the end tank
Include a steam line connection, custom billet DeWitts® radiator cap, and complete electrical wiring kit
Direct Fit® aluminum radiators feature factory type press formed end tanks, serpentine fins, and the factory type upper and lower channels
Each radiator core is assembled and brazed in our state of the art aluminum brazing furnace

See more details

Key Specs

MFG. Part #	32-6139019A
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

DeWitts 32-6139019A Details

This radiator is a "custom package" for all 1973-87 C10 Trucks/Blazer with LS engineswith manual transmission. Inlet and outlet are on the passenger side. This radiatorfeatures factory type press formed end tanks, 20.5" dual row core, and serpentinefins. This radiator will provide 30% more cooling than the stock copper unit and halfthe weight. Features dual 11" SPAL fans with 2720 CFM. It is epoxy free and will fitinto the stock core support. Radiator comes with 2 rows of 1" tubes, dual fans, billetDeWitts™ cap, temp sensor in the radiator, steam line, relays, and wiring.

Guides & Documents

Single Pass, Double Pass, Triple Pass Radiators; What’s The Difference?

How To Choose A Radiator For Your Car

Radiators Warranty (1336139019A)

DeWitts 32-6139019A Specifications

KEY SPECS
MFG. Part #	32-6139019A
Brand	DeWitts
Radiator Style	Double Pass
Radiator Flow Direction	Crossflow
Material Type	Aluminum
Inlet Location	Upper passenger side
Outlet Location	Lower passenger side
Row Quantity	2
Tube Size	1.00"
Overall Width Range	32.00" to 32.99"
Overall Width	32"
Overall Height Range	21.00" to 21.99"
Overall Height	21.5"
Overall Thickness	3"
Core Width Range	28.00" to 28.99"
Core Width	28.25"
Core Height Range	20.00" to 20.99"
Core Height	20.25"
Core Thickness	2.25"
Finish	Natural
Cooling Fan	Dual
Transmission Cooler	Yes
Shroud Included	Yes
Inlet Size	1.25
Outlet Size	1.50
Radiator Cap Included	Yes

GENERAL
Sold in Quantity	Each
Amperage	26 amps
Color	Natural
Fan Included	Yes
CFM	3540 CFM
Blade Material	Plastic
CFM Range	3,000-3,799 CFM

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1973-1986 Chevy C10
