Product Summary

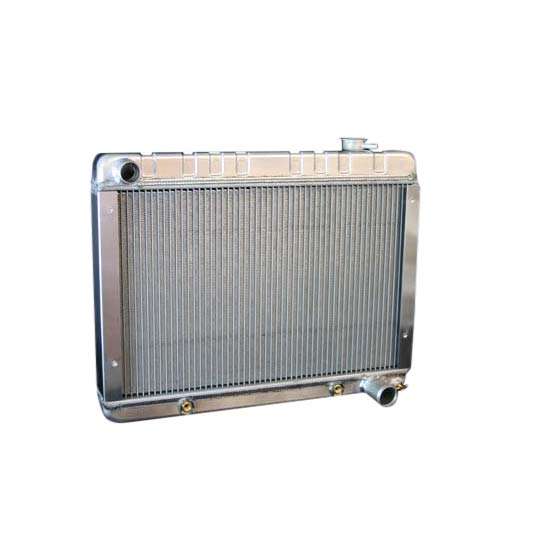

Single Pass Radiator Style, Aluminum, 2 Row Quantity

  • All radiators are assembled with press formed end tanks
  • Built to eliminate fabrication seams and potential leak points of common box tanks
  • Engineered to provide an original equipment look for your classic car
  • These double row radiators will provide a 30% increase in heat rejection
  • Features an epoxy free, aluminum, dual row core

Key Specs

MFG. Part #32-1139010A
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
FinishNatural

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

The superior quality of a DeWitts® radiator begins with a manufacturing process that is controlled 100% in house. Every core is assembled and brazed in Howell, MI to ensure excellence throughout the entire build. DeWitts® is the only USA aftermarket radiator company to own an aluminum Nocolok® brazing furnace which allows for production of a superior, epoxy free, aluminum core. DeWitts® radiators are assembled with press formed end tanks which eliminate fabrication seams and potential leak points of common box tanks while providing an original equipment look for your classic car. In most cases, DeWitts® double row radiators provide a 30% increase in heat rejection. Adding an electric fan will boost that number an additional 10%. If you’re still not sure if that’s enough, HP models are available with 1 1/4" tubes and offer approximately another 10% cooling capacity. Every DeWitts® Aluminum radiator is designed to fit the listed application without any modifications to your car and is available in your choice of a natural, Black Ice™ or polished finish.

  • Direct Fit® with no modification
  • Epoxy free, aluminum, dual row core
  • 1" tubes
  • Press formed end tanks
  • Assembled and brazed in Howell, MI

Warranties

Specifications

KEY SPECS
MFG. Part #32-1139010A
BrandDeWitts
Radiator StyleSingle Pass
Radiator Flow DirectionDownflow
Material TypeAluminum
FinishNatural
GENERAL
Inlet LocationUpper driver side
Outlet LocationLower passenger side
Row Quantity2
Tube Size1.00"
Overall Width Range25.00" to 25.99"
Overall Width25.50"
Overall Height Range20.00" to 20.99"
Overall Height20.00"
Overall Thickness3.25"
Core Width Range25.00" to 25.99"
Core Width25.25"
Core Height Range15.00" to 15.99"
Core Height15.50"
Core Thickness2.25"
Cooling FanNot Included
Transmission CoolerYes
Shroud IncludedNo
Inlet Size1.50
Outlet Size1.75
ColorNatural
Fan IncludedNo
Radiator Cap IncludedNo
Sold in QuantityEach
