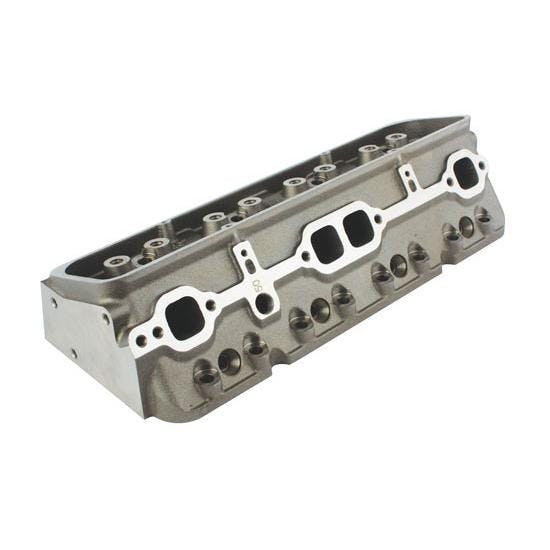

Dart 10024360 Iron Eagle Bare SBC Cylinder Head, 165cc/76cc

#30424360

Dart 10024360 Iron Eagle Bare SBC Cylinder Head, 165cc/76cc

Name: Dart 10024360 Iron Eagle Bare SBC Cylinder Head, 165cc/76cc
Brand: Dart
SKU: 30424360
Price: 590.91 USD
Availability: Discontinued

Write a Review

Ask a Question

Discontinued

This item is currently not available

Shop all Dart Iron Eagle Cylinder Heads

Product Summary

Bare Cylinder Head Style, Cast Iron, Natural

See more details

Key Specs

Cylinder Head Style	Bare
Material Type	Cast Iron
Finish	Natural
Combustion Chamber Volume	76cc
Intake Runner Volume	165cc

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Dart 10024360 Details

Stock replacement, street and strip performance, or towing upgrade with mildly modified engines from idle to 5,500 RPM. Best for 305-383 cubic inch engines. Works with most standard components.

Dart Iron Eagle S/S 23° 165cc heads produce great throttle response and low to mid-range torque for street performance engines. Dart's precision cast ports and chambers produce outstanding air flow without time consuming porting. Dart S/S heads are legal in many racing sanctions with Iron head rules.

Heads are sold individually.

Material: Class 30 Grey Iron
Valve Angle: 23° (stock)
Intake Port Volume: 165cc
Intake Valve: 1.940”
Exhaust Valve: 1.500”
Valve Guides: Integral Iron
Chamber Volume: 72cc
Plug Type: Straight
Bare Head

Charts

Tech Sheet (PDF)

Installation Instructions (PDF)

Tech Sheet (PDF)

Guides & Documents

Cylinder Heads Installation Instructions (30424360)

Cylinder Heads Technical Information (30424360)

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

CA Prop 65

CARB warning

Dart 10024360 Specifications

KEY SPECS
MFG. Part #	10024360
Brand	Dart
Cylinder Head Style	Bare
Material Type	Cast Iron
Finish	Natural
Combustion Chamber Volume	76cc
Intake Runner Volume	165cc

GENERAL
Exhaust Runner Volume	65cc
Combustion Chamber Volume Range	70cc - 79cc
Intake Runner Volume Range	160cc - 169cc
Exhaust Runner Volume Range	60cc - 69cc
Combustion Chamber Style	Heart
CNC-Machined Runners	No
CNC-Machined Combustion Chamber	No
Spark Plug Style	Straight
Intake Port Shape	Rectangle
Intake Port Location	Standard
Exhaust Port Shape	Square
Exhaust Port Location	Standard
Intake Valve Diameter	1.94"
Intake Valves Included	No
Intake Valve Angle	23 °
Exhaust Valve Diameter	1.5"
Exhaust Valves Included	No
Exhaust Valve Angle	23 °
Valve Spring Included	No
Damper Spring Included	No
Machined for O-Ring	No
Valve Seat Machine Style	4-angle intake/3-angle exhaust
Valve Seats Machined	Yes
Valve Seat Material	Ductile Iron
Valve Stem Seals Included	No
Valve Guides Included	Yes
Valve Guide Material	Cast Iron
Locks Included	No
Retainers Included	No
Guideplates Included	No
Rocker Arms Included	No
Rocker Arm Studs Included	No
Rocker Arm Nuts Included	No
Oiling Style	Through Pushrod
Heat Crossover	No
Steam Holes Drilled	No
Accessory Bolt Holes Drilled	Yes
Valve Cover Mounting Style	Center and Perimeter Bolt
Sold in Quantity	Each

Ratings & Reviews

Be the first to write a review.

Fitment

1970-1972 Chevy Bel Air

2-Piece Rear Main Chevy 400

1973-1975 Chevy Bel Air

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1970-1972 Chevy Biscayne

2-Piece Rear Main Chevy 400

1972 Chevy Blazer

Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973-1974 Chevy Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1970-1972 Chevy Brookwood

2-Piece Rear Main Chevy 400

1973-1975 Chevy C10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1980 Chevy C10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy C10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C10

2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1984 Chevy C10

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1985 Chevy C10

2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1986 Chevy C10

Gen 1 LG3 Small Block Chevy

1972-1975 Chevy C10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1982 Chevy C10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy C10 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1986 Chevy C10 Suburban

2-Piece Rear Main 305 LG4

1982-1987 Chevy C15

Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LE9 Small Block Chevy

1972-1975 Chevy C20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976 Chevy C20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1980 Chevy C20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy C20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy C20

2-Piece Rear Main 305 LG4

1984 Chevy C20

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985-1986 Chevy C20

2-Piece Rear Main 305 LG4

1972-1975 Chevy C20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1978 Chevy C20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1980 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1983 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1984 Chevy C20 Suburban

2-Piece Rear Main 305 LG4
Gen 1 L82 Small Block Chevy

1985-1986 Chevy C20 Suburban

2-Piece Rear Main 305 LG4

1966 Chevy C30

Gen 1 L79 Small Block Chevy

1972-1975 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1977 Chevy C30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1978-1979 Chevy C30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy C30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1984 Chevy C30

Gen 1 L46 Small Block Chevy

1986 Chevy C30

2-Piece Rear Main 305 LG4

1983-1987 Chevy C35

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1968 Chevy Camaro

327 Chevy Small Block V8

1973-1975 Chevy Camaro

Gen 1 L48 Small Block Chevy

1976-1982 Chevy Camaro

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1984 Chevy Camaro

2-Piece Rear Main 305 LG4

1985 Chevy Camaro

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy

1986 Chevy Camaro

2-Piece Rear Main 305 LG4

1970-1972 Chevy Caprice

2-Piece Rear Main Chevy 400

1973-1976 Chevy Caprice

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1977 Chevy Caprice

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1982 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1983 Chevy Caprice

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy Caprice

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy Caprice

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1986 Chevy Caprice

2-Piece Rear Main 305 LG4

1964-1968 Chevy Chevelle

Gen 1 L79 Small Block Chevy

1970-1972 Chevy Chevelle

2-Piece Rear Main Chevy 400

1973 Chevy Chevelle

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1965-1968 Chevy Chevy II

Gen 1 L79 Small Block Chevy

1962-1963 Chevy Corvette

Gen 1 L76 Small Block Chevy

1964-1968 Chevy Corvette

Gen 1 L79 Small Block Chevy

1973-1974 Chevy Corvette

Gen 1 L48 Small Block Chevy

1980 Chevy Corvette

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1984 Chevy Corvette

Gen 1 L83 Small Block Chevy

1985 Chevy Corvette

2-Piece Rear Main Chevy 350

1964-1969 Chevy El Camino

Gen 1 L79 Small Block Chevy

1970-1972 Chevy El Camino

2-Piece Rear Main Chevy 400

1973-1975 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1976 Chevy El Camino

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1977 Chevy El Camino

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1979 Chevy El Camino

2-Piece Rear Main Chevy 350
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy El Camino

Gen 1 LG3 Small Block Chevy

1983 Chevy El Camino

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy El Camino

2-Piece Rear Main 305 LG4
Gen 1 L81 Small Block Chevy

1985-1986 Chevy El Camino

2-Piece Rear Main 305 LG4

1970 Chevy Estate

2-Piece Rear Main Chevy 400

1975 Chevy G10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976 Chevy G10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1982 Chevy G10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy G10

2-Piece Rear Main 305 LG4

1984 Chevy G10

2-Piece Rear Main 305 LG4
Gen 1 L82 Small Block Chevy

1985-1986 Chevy G10

2-Piece Rear Main 305 LG4

1970 Chevy G10 Van

2-Piece Rear Main Chevy 350

1972-1974 Chevy G10 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy G20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1980 Chevy G20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy G20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1986 Chevy G20

2-Piece Rear Main 305 LG4

1972 Chevy G20 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 Chevy G20 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1977 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1978-1979 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980 Chevy G30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1981 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1982 Chevy G30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1985 Chevy G30

2-Piece Rear Main 305 LG4

1970 Chevy G30 Van

2-Piece Rear Main Chevy 350

1972-1974 Chevy G30 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1970-1972 Chevy Impala

2-Piece Rear Main Chevy 400

1973-1976 Chevy Impala

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1977-1982 Chevy Impala

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy Impala

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy Impala

2-Piece Rear Main 305 LG4

1985 Chevy Impala

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1972-1974 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1979 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980 Chevy K10

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K10

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1986 Chevy K10

2-Piece Rear Main 305 LG4

1972-1974 Chevy K10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975 Chevy K10 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1976-1979 Chevy K10 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1982 Chevy K10 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983-1986 Chevy K10 Suburban

2-Piece Rear Main 305 LG4

1972-1974 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1978 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1980 Chevy K20

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1981-1982 Chevy K20

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1985 Chevy K20

2-Piece Rear Main 305 LG4

1972-1974 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1976 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1978 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1979-1980 Chevy K20 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K20 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1985-1986 Chevy K20 Suburban

2-Piece Rear Main 305 LG4

1972-1974 Chevy K30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1980 Chevy K30

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1981-1982 Chevy K30

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1970-1974 Chevy K5 Blazer

2-Piece Rear Main Chevy 350

1975-1976 Chevy K5 Blazer

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1977-1979 Chevy K5 Blazer

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1980-1981 Chevy K5 Blazer

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1982 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1983 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
Gen 1 L48 Small Block Chevy

1985 Chevy K5 Blazer

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1986 Chevy K5 Blazer

2-Piece Rear Main 305 LG4

1970-1972 Chevy Kingswood

2-Piece Rear Main Chevy 400

1973-1975 Chevy Laguna

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1976 Chevy Laguna

2-Piece Rear Main Chevy 350
2-Piece Rear Main Chevy 400
Gen 1 LG3 Small Block Chevy

1964-1967 Chevy Malibu

Gen 1 L79 Small Block Chevy

1973-1975 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy

1976 Chevy Malibu

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1977-1982 Chevy Malibu

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1983 Chevy Malibu

2-Piece Rear Main 305 LG4

1970-1971 Chevy Monte Carlo

2-Piece Rear Main Chevy 350
2-Piece Rear Main Chevy 400

1972 Chevy Monte Carlo

2-Piece Rear Main Chevy 400

1973-1975 Chevy Monte Carlo

2-Piece Rear Main Chevy 350
2-Piece Rear Main Chevy 400

1976 Chevy Monte Carlo

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1977 Chevy Monte Carlo

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1978-1981 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1982-1983 Chevy Monte Carlo

2-Piece Rear Main 305 LG4
2-Piece Rear Main Chevy 350

1984-1986 Chevy Monte Carlo

2-Piece Rear Main 305 LG4

1975 Chevy Monza

Gen 1 L48 Small Block Chevy

1976-1979 Chevy Monza

Gen 1 LG3 Small Block Chevy

1973-1974 Chevy Nova

Gen 1 L48 Small Block Chevy

1975 Chevy Nova

2-Piece Rear Main Chevy 350

1976-1979 Chevy Nova

Gen 1 L48 Small Block Chevy
Gen 1 LG3 Small Block Chevy

1975 Chevy P30

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1976 Chevy P30

2-Piece Rear Main Chevy 400
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1977-1979 Chevy P30

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1980-1983 Chevy P30

2-Piece Rear Main Chevy 350

1985 Chevy P30

2-Piece Rear Main Chevy 350

1970 Chevy P30 Van

2-Piece Rear Main Chevy 350

1972 Chevy P30 Van

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1973-1974 Chevy P30 Van

Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy

1970-1972 Chevy Townsman

2-Piece Rear Main Chevy 400

1963-1965 GMC 1000 Series

Gen 1 LE9 Small Block Chevy

1967-1968 GMC C15/C1500 Pickup

327 Chevy Small Block V8

1967 GMC C15/C1500 Suburban

2-Piece Rear Main Chevy 350

1968 GMC C15/C1500 Suburban

327 Chevy Small Block V8

1980-1984 GMC C1500

2-Piece Rear Main Chevy 350

1980-1986 GMC C1500 Suburban

2-Piece Rear Main Chevy 350

1967-1972 GMC C25/C2500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1972 GMC C25/C2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1972 GMC C35/C3500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC C35/C3500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1978-1987 GMC Caballero

2-Piece Rear Main Chevy 350

1963-1966 GMC G1000 Series

327 Chevy Small Block V8

1975-1978 GMC G15

2-Piece Rear Main Chevy 350

1967-1974 GMC G15/G1500 Van

2-Piece Rear Main Chevy 350

1964-1966 GMC G1500

327 Chevy Small Block V8

1979-1986 GMC G1500

2-Piece Rear Main Chevy 350

1975-1978 GMC G25

2-Piece Rear Main Chevy 350

1967-1974 GMC G25/G2500 Van

2-Piece Rear Main Chevy 350

1979-1986 GMC G2500

2-Piece Rear Main Chevy 350

1975-1978 GMC G35

2-Piece Rear Main Chevy 350

1967 GMC G35/G3500 Van

2-Piece Rear Main Chevy 350

1970-1974 GMC G35/G3500 Van

2-Piece Rear Main Chevy 350

1979-1986 GMC G3500

2-Piece Rear Main Chevy 350

1964-1966 GMC I1000

327 Chevy Small Block V8

1965-1966 GMC I1500

327 Chevy Small Block V8

1965-1966 GMC I2500

327 Chevy Small Block V8

1966 GMC I3500

327 Chevy Small Block V8

1970-1973 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1974-1977 GMC Jimmy

2-Piece Rear Main Chevy 350

1978-1982 GMC Jimmy

Gen 1 LE9 Small Block Chevy

1983-1984 GMC Jimmy

2-Piece Rear Main Chevy 350

1966 GMC K1000

327 Chevy Small Block V8

1966 GMC K1000 Pickup

327 Chevy Small Block V8

1975-1978 GMC K15

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K15 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1966 GMC K15/K1500 Pickup

327 Chevy Small Block V8

1967-1974 GMC K15/K1500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1974 GMC K15/K1500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1979-1984 GMC K1500

2-Piece Rear Main Chevy 350

1979-1980 GMC K1500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K25

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1975-1978 GMC K25 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1972 GMC K25/K2500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC K25/K2500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1972 GMC K25/K2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC K25/K2500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1979-1984 GMC K2500

2-Piece Rear Main Chevy 350

1979-1986 GMC K2500 Suburban

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1994-1999 GMC K2500 Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1967-1972 GMC K35/K3500 Pickup

Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1974 GMC K35/K3500 Pickup

2-Piece Rear Main Chevy 400
Gen 1 L46 Small Block Chevy
Gen 1 L48 Small Block Chevy
Gen 1 L65 Small Block Chevy
Gen 1 L81 Small Block Chevy
Gen 1 L82 Small Block Chevy

1973-1977 GMC Sprint

2-Piece Rear Main Chevy 400
Gen 1 LM1 Small Block Chevy

1960-1966 GMC Suburban

Gen 1 L69 Small Block Chevy
Gen 1 L76 Small Block Chevy

1967 GMC Suburban

Gen 1 L46 Small Block Chevy
Gen 1 L76 Small Block Chevy

1987-1991 GMC V1500 Suburban

350 Chevy Small Block V8

1987 GMC V2500

350 Chevy Small Block V8

1987-1991 GMC V2500 Suburban

350 Chevy Small Block V8

1987-1991 GMC V3500

350 Chevy Small Block V8

1975-1977 Oldsmobile Starfire

305 Chevy Small Block V8

1985 Pontiac Firebird

2-Piece Rear Main 305 LB9
2-Piece Rear Main 305 LG4
Gen 1 L69 Small Block Chevy
