Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments

Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments

67-72 Chevy, 67-72 GMC, Analog Gauge Series, Electric Gauge Style, 1 Number of Gauge Housings

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
Select your vehicle to verify fitment.
Select Vehicle
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
X
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Dakota Digital VHX-67C-PA-K-W 1967-72 Chevy Truck VHX Instruments
Zoomed In Image
We estimate this item will ship on or before December 26th.
Part # 365VHX67CPAKW
Save $45
$850.25
$894.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 7 business days for Dakota Digital to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.

Details

Gauge Series:
Analog
Gauge Style:
Electric
Gauge Set Design:
Dash Cluster
Number of Gauge Housings:
1
Gauge Face Color:
Black
Lighted:
Yes
Lighting Type:
LCD/LED
Light Color:
White
Needle Color:
Red
Mount Type:
Uses Factory Hangers
Speedometer Included:
Yes
Tachometer Included:
Yes
Oil Pressure Gauge Included:
Yes
Oil Temperature Gauge Included:
No
Water Pressure Gauge Included:
No
Water Temperature Gauge Included:
Yes
Fuel Pressure Gauge Included:
No
Fuel Level Gauge Included:
Yes
Vacuum Gauge Included:
No
Volt Gauge Included:
Yes
Ammeter Gauge Included:
No
Boost/Pyrometer Gauge Included:
No
Exhaust Pressure Gauge Included:
No
Odometer Gauge Included:
Yes
MFG. Part #:
VHX-67C-PA-K-W
Sold in Quantity:
Each
Notes:
Not all OEM indicator lamp functions will be replaced
Included Adapter/Fitting:
Adapter bushings from 1/4" to 3/8" and 1/2" NPT, 12mm and 16mm x 1.104
Includes Tubing:
No
Includes Mounting Bracket(s):
No
Hardware Included:
No
Clock Included:
Yes
Fuel Sender Included:
No
Speed Sender Included:
Yes
Oil Pressure Sender Included:
Yes
Turn Signals Included:
Yes
Includes Wire Harness:
Yes
Bezel Included:
No

Info

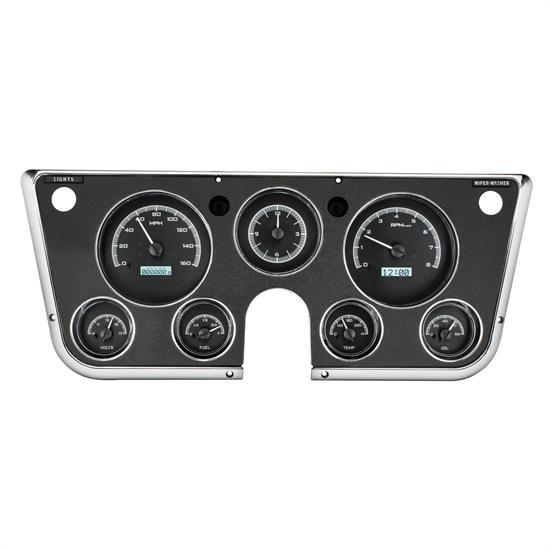

1967-72 GM pickups, Blazers, and Suburbans have a simple dashboard which offers plenty of space for personalization. Making use of a seven-hole instrument bezel, this system that boasts six analog instruments, along with an analog clock above the column. Stock turn signals have been upgraded with LED technology, and the whole operation utilizes a stock or reproduction bezel, available separately.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid-state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

  • Analog Clock
  • Black Face
  • White Display

Application

Analog Gauges

Speedometer

  • 0 -140 MPH

Tachometer

  • 0- 8,000 RPM

Oil Pressure

  • 0- 80 psi

Water Temperature

  • 100- 260ºF

Fuel Level

  • E, 1/4, 1/2, 3/4, F

Voltmeter

  • 9- 17 VDC

Lighting

  • Back lit technology is popular with performance instrumentation due to precise lighting allowing you to see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator, and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays

  • Odometer (One-time user settable, Million Mile)
  • Dual (A/B) Trip Meter (0- 9,999.9)
  • Clock (12 hour)

Performance Meters

  • 0- 60 MPH Timer (0- 100 kmh)
  • 1/4 mile time
  • 1/4 end speed (trap speed)
  • High-speed recall
  • High RPM recall

Built-in Indicators

Indicators

  • Turn Signals (Left/ Right)
  • High Beam
  • Check Engine
  • Parking Brake
  • Cruise Control (On/On & Engaged when vehicle is equipped)
  • Gear Position (Optional GSS-2000 sensor required)
  • 4 x 4 (When vehicle is equipped)
  • Wait to Start (When vehicle is equipped)
  • **Not all OEM indicator lamp functions will be replaced.
    • If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Notes

Calibration

Pushbutton

  • Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

Features

Included Sensors

Water Temperature

  • 1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

  • 1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/Generator

  • Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction.

Bushings

  • Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Manuals

Wiring and Setup Manual

Quick Start Manual

Mounting Manual
