Currie CE-98129-27625 9 Inch Ford 31 Spline Axle Shaft, 27-5/8 Inch
Currie CE-98129-27625 9 Inch Ford 31 Spline Axle Shaft, 27-5/8 Inch
Currie

|

#91046009

Currie CE-98129-27625 9 Inch Ford 31 Spline Axle Shaft, 27-5/8 Inch

  • It has 31 splines and is 27.63" in length
  • Works with New Big Ford (Torino) bearing ends
  • Manufactured from a heat treated 1541 forged alloy
See More

Length:

27-5/8"

24-1/4"25-1/4"26-3/8"27-3/8"28-1/4"28-5/8"29-5/8"30-5/8"31-5/8"

$304.99

/each

In Stock


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Ford 9 Inch, Semi-Floating Axle Type, 31 Spline Count

  • It has 31 splines and is 27.63" in length
  • Works with New Big Ford (Torino) bearing ends
  • Manufactured from a heat treated 1541 forged alloy
  • Flanges are dual-drilled for both 5 on 4-1/2" Ford/Mopar and 5 on 4-3/4" GM wheel bolt patterns
  • Will fit Speedway housing # 91046254 and other 9" Ford rear ends with a 58" wide hub-to-hub dimension
See more details

Key Specs

MFG. Part #CE-98129-27625
Axle TypeSemi-Floating
Overall Length27.63"
Spline Count31
Material TypeSteel
See more specs

Need To Know

Need help?

855.313.9176
View the Help Center

Quick and Easy Returns

Return Policy

Currie CE-98129-27625 Details

This custom cut and splined Currie Enterprises axle shaft is for Speedway housing91046254or other 9" Ford rearends. This is the "long" axle of the two that are required. Works with New Big Ford (Torino) bearing ends. Flanges are dual-drilled for both 5 on 4-1/2" Ford/Mopar and 5 on 4-3/4" GM wheel bolt patterns.

  • Induction heat treated 1541 forged alloy
  • 31-spline
  • 27.625" long
  • This is the "long" axle of the two required
  • Fits 91046254 pumpkin centered housing
  • Works with New Big Ford (Torino) bearing ends
  • 2.5" brake space offset
  • 2.8" register hub
  • Dual-drilled wheel bolt pattern

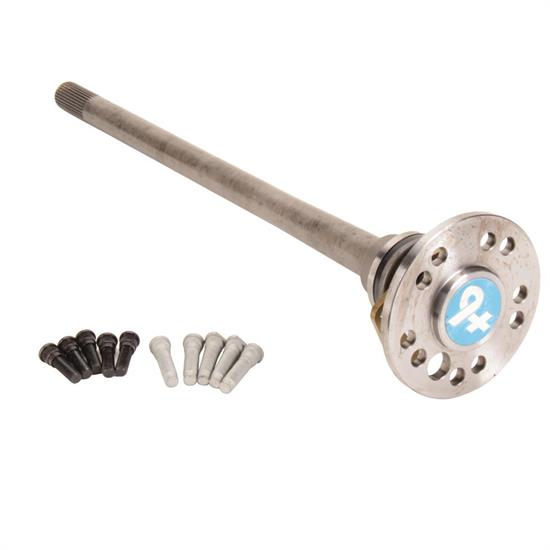

Includes axle shaft, axle bearing, axle seal, bearing retainer, and two sizes of wheel studs (1/2"-20 Ford/Mopar and 7/16"-20 GM).

 (JPG)

Charts

Currie CE-98129-27625 Specifications

KEY SPECS
MFG. Part #CE-98129-27625
BrandCurrie
Axle TypeSemi-Floating
Overall Length27.63"
Spline Count31
Material TypeSteel
GENERAL
PositionRear
Bolt PatternDual: 5 on 4.5" | 4.75"
Housing End StyleBig Ford/New Style (Torino)
FinishNatural
Sold in QuantityEach
Offset2.50"
NotesIncludes both 7/16"-20 and 1/2"-20 wheel studs. COLLAR NOT PRESSED ON, ALLOWING ASSEMBLY OF BRACKETS AND RETAINING FLANGE.
Cut to FitNo
