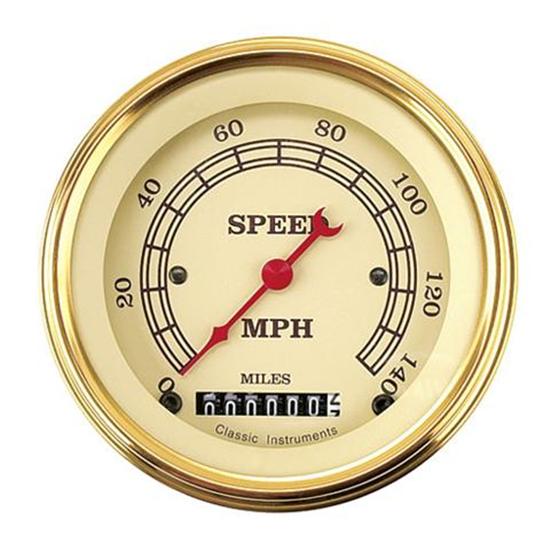

Classic Instruments VT55GLF Vintage 140 MPH Speedometer

Info

With odometer. Requires transmission sender #27599GM or #27599FORD, sold separately. Speedometers and Tachometers measure 3-3/8" diameter.

Vintage Series Gauges: feature 24 carat gold plated bezels, with parchment faces and brown numbers with old-fashion style red pointers.

Application Note: The hook-up for this speedometer is as follows, red wire from sender to 'B+' terminal on speedometer. White wire from sender to 'sig' term on speedometer. Black wire from sender to 'gnd' term on speedometer. The manufacturer of this speedometer insists that it is very important to provide a 'dedicated' (nothing else hooked-up with it) power wire and groud wire for this speedometer. Dedicated power wire hooks to 'B+' terminal. Dedicated group wire hooks to 'gnd' term. The wires from the sender to the speedometer should be twisted together for their entire length to prevent 'interference' from other electrical sources in the vehicle.

 Classic Instruments Installation Manual (PDF)
