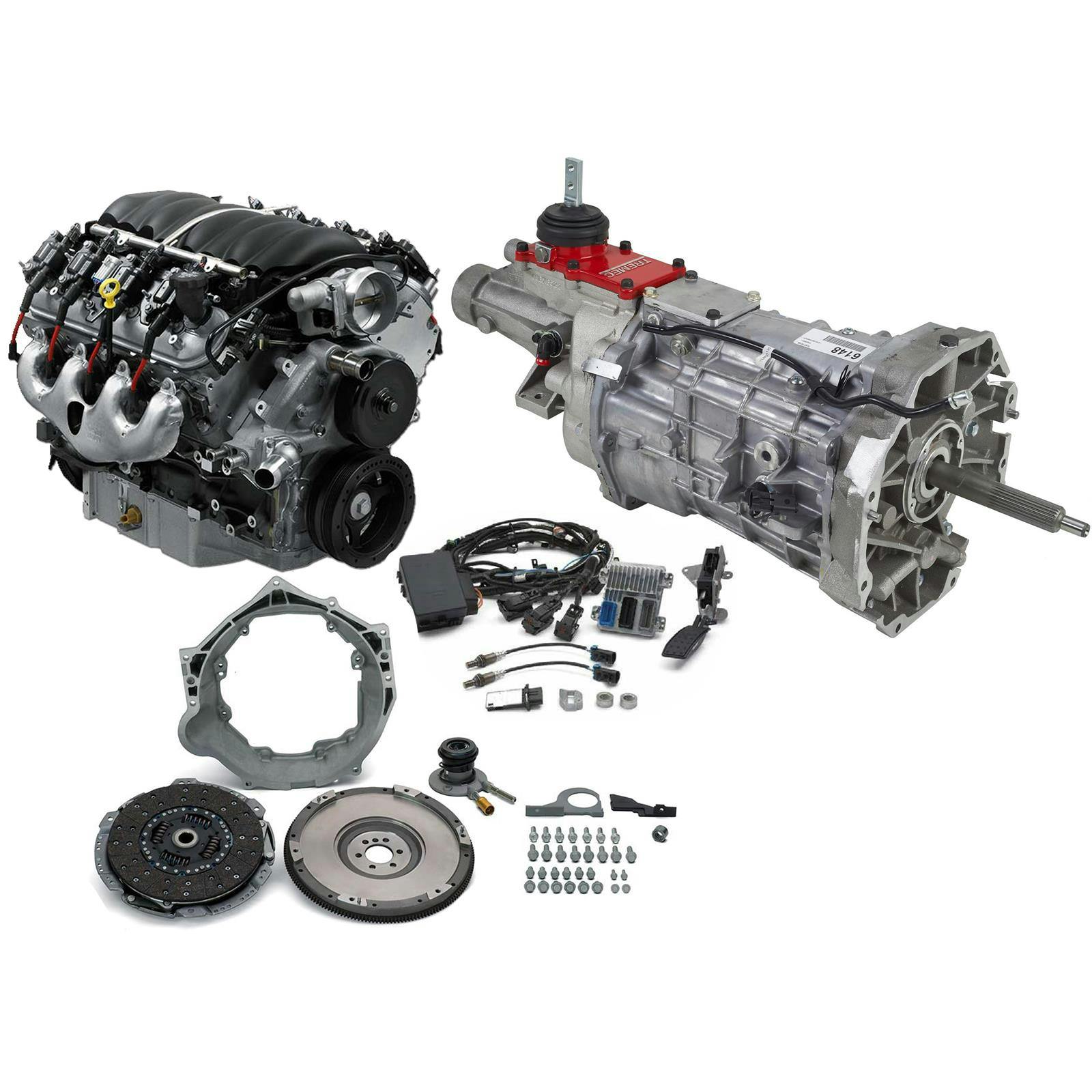

Chevrolet Performance LS376/480 HP Connect and Cruise, T56 Trans

LS376/480 Connect and Cruise

The Chevrolet Performance Connect and Cruise is the quickest and easiest way to get your project hot rod or muscle car up and running. The Connect and Cruise kit have been designed and components carefully matched for optimal compatibility and performance, while also identifying the complementing engine and transmission controllers, and supporting installation kits.

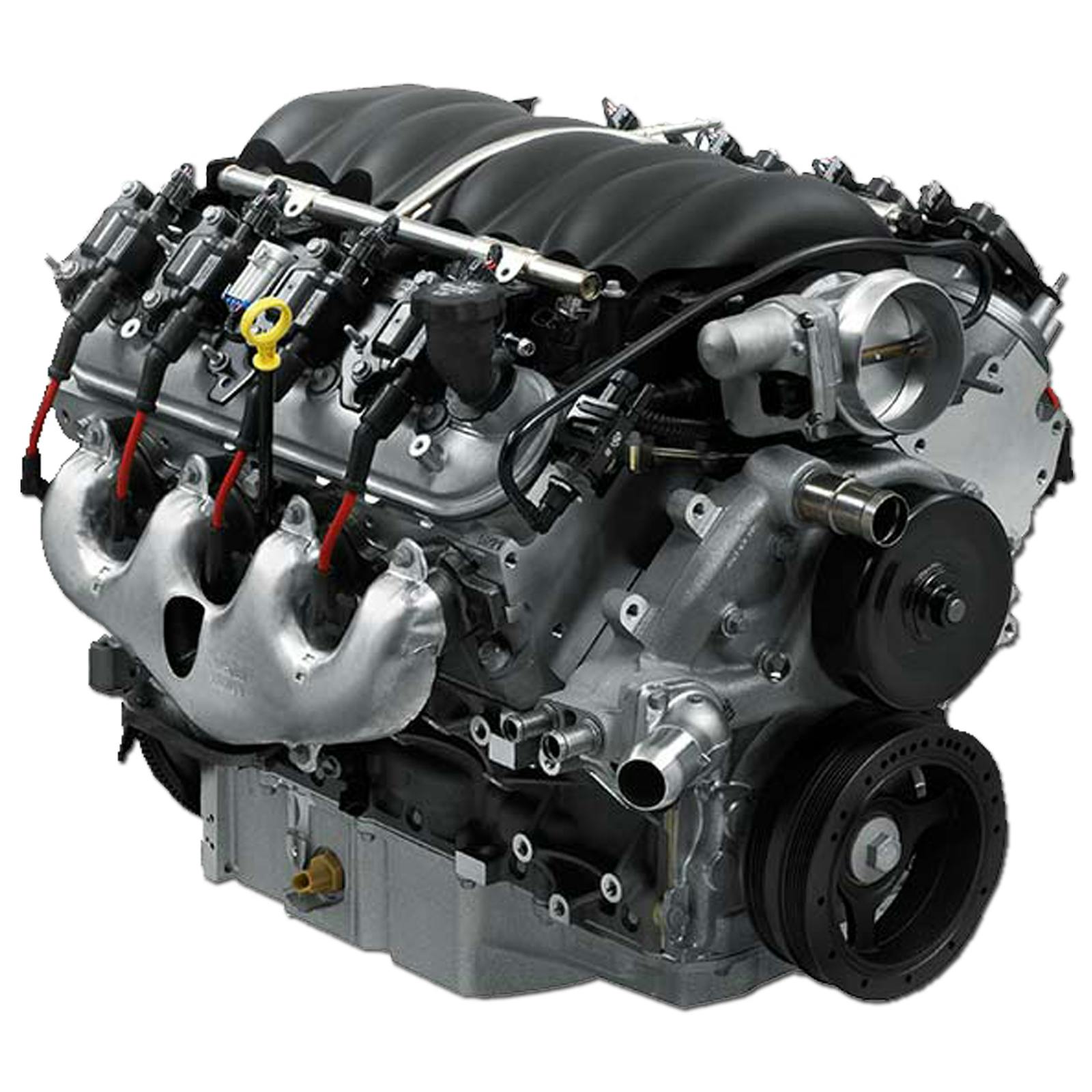

LS3 with a Hot Cam

The engineers at GM Performance never stop tinkering. When the engineers took a production LS3 6.2L (376 cubic inches) engine and swapped the stock camshaft for the racing-inspired LS Hot Cam, the result was a stunning 495 horsepower and 473 lb-ft of torque.

Chevrolet Performance wasted no time in adding that terrific combination – dubbed LS376/480 – to their crate engine portfolio. The key to the power boost is the Hot Cam’s 0.525-inch lift on both the intake and exhaust sides, along with 219-degree/228-degree duration specs. That’s less lift on the intake side than the stock LS3 cam, but considerably more duration, allowing the valves to stay open a little longer to draw in more air from the rectangular-port L92-style heads.

• 376 C.I.D
• 480 HP
• Long block
• Aluminum cylinder head material
• Internal engine balance
• 1-piece rear main seal style

T56 Transmission - Standard for Performance

Able to withstand 700 ft/lbs torque while providing unbelievably crisp shifts, the Super Magnum T56 Transmission is the kingpin of Tremec's high-performance lineup. No other manual transmission offers as much combined strength, ease of use, and versatility as the T56 Magnum. This high-torque capacity TREMEC six-speed manual is specially designed for custom, retro-fit installations with Chevrolet Performance crate engines. The exterior case similar to fourth-generation F-body transmission with the stronger, high-capacity gear sets, input shaft and output shaft used in the TREMEC TR6060. It also features a 40-tooth reluctor ring that's necessary for use with electronic vehicle speed sensors used with Chevrolet Performance controllers.

• 700 lb.-ft. Maximum Torque Capacity
• 26-Spline Input Shaft
• 31-Spline Output Shaft
• Gear Ratios: 2.66 (1), 1.78 (2), 1.30 (3), 1.00 (4), 0.80 (5), 0.63 (6)
• Slip-Yoke Design
• Two-Position Shifter Plate Included, With Third Position Built Into The Transmission

LS Controller Kit and Trans Install Kit

Chevrolet Performance Part has put together the exact kits you need to connect the legendary TREMEC T56 Super Magnum transmission to your LS Engine build. ECU Kit includes wiring harness, mass airflow meter, accelerator pedal assembly, two oxygen sensors, and detailed instruction sheet.

• ECU Kit including pedal assembly, sensors and wiring
• LS7-style flywheel with 6-bolt flange
• LS7-style high-strength clutch and pressure plate
• Fourth-generation F-body-type bell housing and clutch release bearing included
• Trans Install Kit includes dust covers, hardware and instructions

LS376/480 Crate Engine Specifications (PDF)
