Product Summary

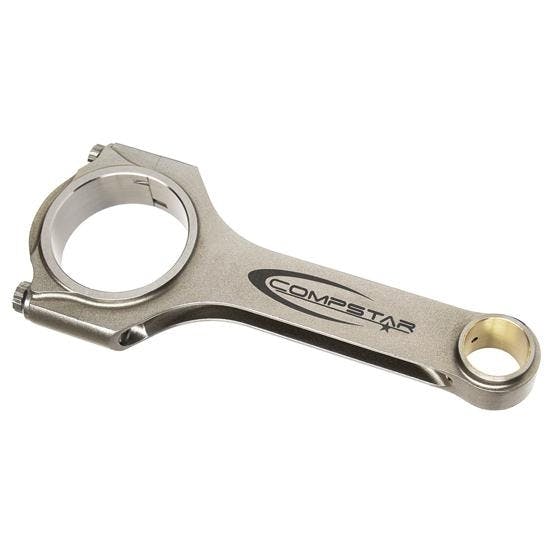

Chevy Small Block V8, H-Beam Connecting Rod Type

  • Designed specifically for the Small Block Chevy engine
  • Rods are constructed from forged 4340 steel
  • 2.100" journal and weigh only 612 grams
  • Designed to clear a .660" lift small base cam with a 4" stroke crank
  • Comes with ARP 2000 7/16" cap screws

Key Specs

MFG. Part #CSA6000DS2A2AH
Connecting Rod TypeH-Beam
Connecting Rod MaterialForged 4340 Steel
Connecting Rod Length6.000"
Wrist Pin StyleFloating

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Callies CSA6000DS2A2AH Details

Compstar forged 4340 steel H-beam connecting rods come standard with ARP 2000 7/16" cap screws. Rods have full floating bushed pins. Will clear a .660" lift small base cam with a 4" stroke crank.

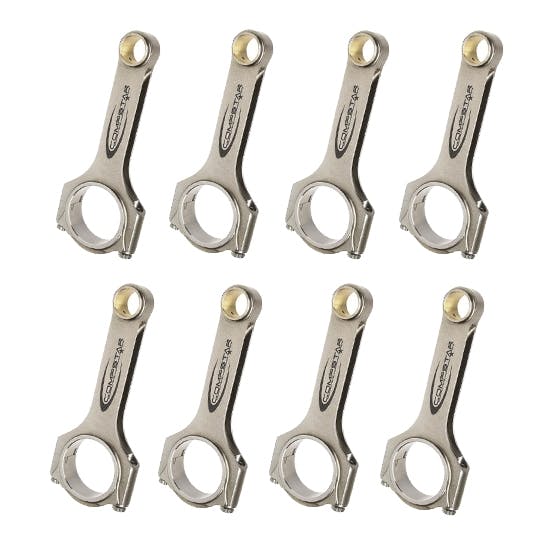

Set of 8.

Item Details

2.100 journal
612 grams

CARB Warning

For race/ off road use or for use on pre-1966 vehicles.

Emissions warning: this part only legal for sale or use in California for racing (competition) vehicles which may never be used, registered, or licensed for use upon a public highway, or if installed in vehicles model-year 1965 or older; motorcycles model-year 1977 or older; or off-highway recreational vehicles (such as off-road motorcycles and all-terrain vehicles) model-year 1996 and older. Any other use renders the vehicle tampered and not legal for use on California public highways (any public street or roadway, public dirt road, public park, or publicly maintained right of way open to the use of the public for vehicular travel). Violations subject to $37,500 penalty per violation per vehicle, revocation of registration, loss of use on California public right of ways, and proof of correction for tampering. There are similar restrictions and penalties under federal law and the laws of all other states with penalties under federal law of up to approximately $45,268 per tampered vehicle and/or engine.

Callies CSA6000DS2A2AH Specifications

KEY SPECS
MFG. Part #CSA6000DS2A2AH
BrandCallies
Connecting Rod TypeH-Beam
Connecting Rod MaterialForged 4340 Steel
Connecting Rod Length6.000"
Wrist Pin StyleFloating
GENERAL
Wrist Pin Diameter0.927"
Rod Journal Diameter2.100"
Connecting Rod Bolt Diameter7/16"
Sold in QuantitySet
NotesBushed pin.
Rod Crank End Width0.940"
Weight612 grams
Connecting Rod FinishShot-peened
Cap Retention StyleCap Screw
Connecting Rod Bolt BrandARP
Connecting Rod Bolt MaterialARP2000
Fastener Yield Strength200,000 psi
Connecting Rod Bolt Head Style12-Point
Big End Bore Diameter2.225"
