#28251416

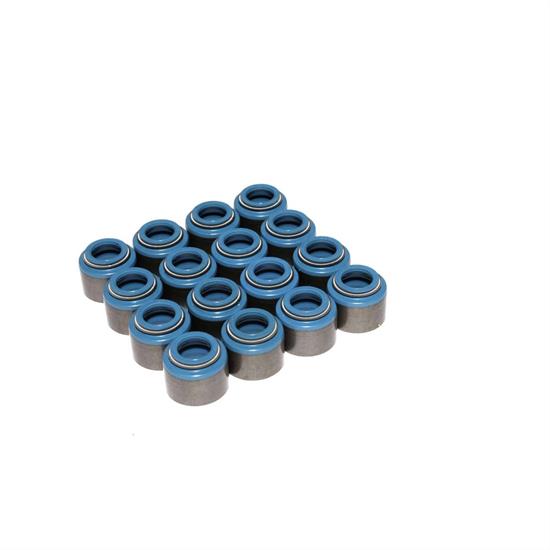

COMP Cams 514-16 Valve Stem Seals, PTFE, .375 Inch, .500 Inch, Set/16
- The o-ring seals use the standard retainer and oil splash shield
- The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used
- 3/8" X .500
$25.95
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
.500" Valve Guide Diameter, .375" Valve Stem Diameter
- The o-ring seals use the standard retainer and oil splash shield
- The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used
- 3/8" X .500
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyCOMP Cams 514-16 Details
COMP Cams 514-16 Details
514-16 - Valve Seals, MetalBody Viton 3/8" X .500.
COMP Cams offers a complete line of valve stem oil seals, from the stock GM o-ring to the positive-stop PTFE seal. These seals are a must to keep unwanted oil form entering the combustion chamber through the clearance in the valve guides. The o-ring seals use the standard retainer and oil splash shield. The umbrella seal is normally used when a larger than stock diameter spring is used, and in the case of a double spring, the positive-stop PTFE seal is used. Small diameter Viton seals are also available for triple spring applications.
COMP Cams 514-16 Specifications
COMP Cams 514-16 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 514-16 |
| Brand | COMP Cams |
| GENERAL | |
| GTIN Code | 036584142768 |
| Notes | Requires machining the top of the valve guide with a special .500 in. diameter cutter. |
| Machine Work Required | No |
| Valve Guide Diameter | .500" |
| Valve Stem Diameter | .375" |
| Valve Stem Seal Material | Viton |
| Sold in Quantity | Set |
