#2191000

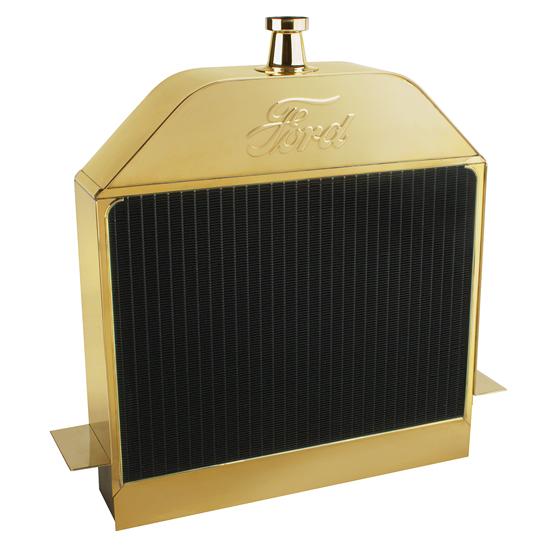

Brassworks 10-27H T-Bucket Radiator
- Contains a dummy neck and a filler neck
- It must be used with the included 4 psi pressure cap. Warranty is voided if used with a cap that exceeds 4 psi
- It is made of the finest brass and has a staggered tube four row core, 3 1/2" thick
$1,646.99
/each
In Stock
Order soon, only 1 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Single Pass Radiator Style, Copper/Brass, Polished
- Contains a dummy neck and a filler neck
- It must be used with the included 4 psi pressure cap. Warranty is voided if used with a cap that exceeds 4 psi
- It is made of the finest brass and has a staggered tube four row core, 3 1/2" thick
- Core thickness measures 3-27/64" and overall radiator thickness including dummy neck is 7-1/4"
- The upper 1 1/2" radiator hose connection is centered at the top and the 1 3/4" lower is on the passenger side lower
Key Specs
| MFG. Part # | 10-27H |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Inlet Location | Center |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyBrassworks 10-27H Details
Brassworks 10-27H Details
If you like the original brass look for your t-bucket, we've got you covered. This Brassworks radiator is made of the finest brass and has a staggered tube four row core, 3 1/2" thick. It is polished to the highest shine and we also offer a brass shroud with a Spal electric fan and a brass overflow tank. The upper 1 1/2" radiator hose connection is centered at the top and the 1 3/4" lower is on the passenger side lower. 19 3/4" wide, 20 1/8" tall.
- Must be used with the included 4 psi or less pressure cap # 219-004 psi cap
- If coolant pressure exceeds 4 psi, manufacturer warranty is voided
- Does NOT include a transmission cooler
- Contains a dummy neck
- Contains a filler neck
- Core thickness is 3-27/64"
- Overall radiator width is 20"
- Overall mounting width is 24"
- Overall radiator height including dummy neck is 23"
- Overall radiator height less dumy neck is 21"
- Overall radiator thickness is 4-5/8"
- Overall upper tank height is 4-7/8"
- Overall radiator thickness including dummy neck is 7-1/4"
Learn more about how radiators work and selecting the proper radiator for your vehicle by reading our tech article. Radiator Cooling Performance.
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Each radiator is tested to ensure there are no leaks and is fit to an original shell when available. Brassworks radiators are manufactured one at a time by human hands. Each Brassworks radiator comes with a non-transferable warranty against defects in materials and workmanship for two years from the ship date. During the warranty period, Brassworks will repair, or at its option, replace at no charge components that prove defective. Radiators must be returned with proof of purchase along with the radiator cap used upon installation and the shipping and insurance must be prepaid and then forwarded on to Brassworks for warranty consideration. Please do not send radiators to Brassworks without calling Brassworks first. Please note that the warranty is voided if the radiator is used with any radiator cap that exceeds 4 psi. Also, for warranty consideration, the radiator cap used with the radiator must be returned and included in with the radiator when returned for warranty consideration. Please contact Brassworks for any warranty needs.
Brassworks 10-27H Specifications
Brassworks 10-27H Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 10-27H |
| Brand | Brassworks |
| Radiator Style | Single Pass |
| Radiator Flow Direction | Downflow |
| Material Type | Copper/Brass |
| Inlet Location | Center |
| Outlet Location | Lower passenger side |
| Row Quantity | 4 |
| Overall Width Range | 20.00" to 20.99" |
| Overall Width | 20" |
| Overall Height Range | 21.00" to 21.99" |
| Overall Height | 21.13" |
| Overall Thickness | 4.68" |
| Core Width Range | 19.00" to 19.99" |
| Core Width | 19.25" |
| Core Height Range | 14.00" to 14.99" |
| Core Height | 14" |
| Core Thickness | 3.5" |
| Finish | Polished |
| Cooling Fan | Not Included |
| Transmission Cooler | No |
| Shroud Included | No |
| Inlet Size | 1.5 |
| Radiator Cap Included | Yes |
| GENERAL | |
| Sold in Quantity | Each |
| Notes | Includes 37" long 3/8" rubber hose for overflow. 2.00" wide mounting tabs on both sides. 1/4" NPT fitting for drain. Recommended with 4lb. cap or less. |
| Filler Neck Height | 2.5" |
| Fan Included | No |
Ratings & Reviews
5
2 Reviews
Customers laud the product for its stunning brass appearance, citing its ability to attract attention and enhance roadster aesthetics. They frequently emphasize its excellent quality, with repeated statements affirming the product's value. Its usability, superior material quality, and confirmed safety have also earned high customer recommendations, distinguishing it significantly from competitor products. Overall, customers find the product reliable and are likely to purchase it again, reflecting its high performance and customer satisfaction.
Ratings & Reviews
5
2 Reviews
Customers laud the product for its stunning brass appearance, citing its ability to attract attention and enhance roadster aesthetics. They frequently emphasize its excellent quality, with repeated statements affirming the product's value. Its usability, superior material quality, and confirmed safety have also earned high customer recommendations, distinguishing it significantly from competitor products. Overall, customers find the product reliable and are likely to purchase it again, reflecting its high performance and customer satisfaction.
5
2 reviews
5
2
4
0
3
0
2
0
1
0
Filter by Ratings
I would buy from SpeedWay again and again
5.0
8 years ago
Sparky
Great Falls, Montana
Verified
If you like the brass look for your roadster this is a beautiful radiator to have. It's a real eye catcher.
Would Recommend
excellent product
5.0
12 years ago
deco
florida
Verified
good product good product good product good product
Would Recommend
Showing 2 of 2 reviews
Questions & Answers
Questions & Answers
5 Questions • 5 Answers
Is there anyway to get this in chrome?
by Dougie
• 7 years ago
1 answer
View Answer
Can you just buy the 1923 t bucket shroud only
by Nikki
• 8 years ago
1 answer
View Answer
So...what do you do for a tranny cooler?
by West Palm Frank
• 10 years ago
1 answer
View Answer
if possible what brass is it made of i was wondering what type of brass it is made of
by mastermechanic
• 11 years ago
1 answer
View Answer
water level in the brassworks radiator, what is the normal method of filling the radiator, and to what level do you fill the radiator. what pressure cap do I use, what decorative cap is used?
by araccuracy
• 13 years ago
1 answer
View Answer
5 of 5 questions shown
Fitment
Fitment
1910-1927 Ford Model T
