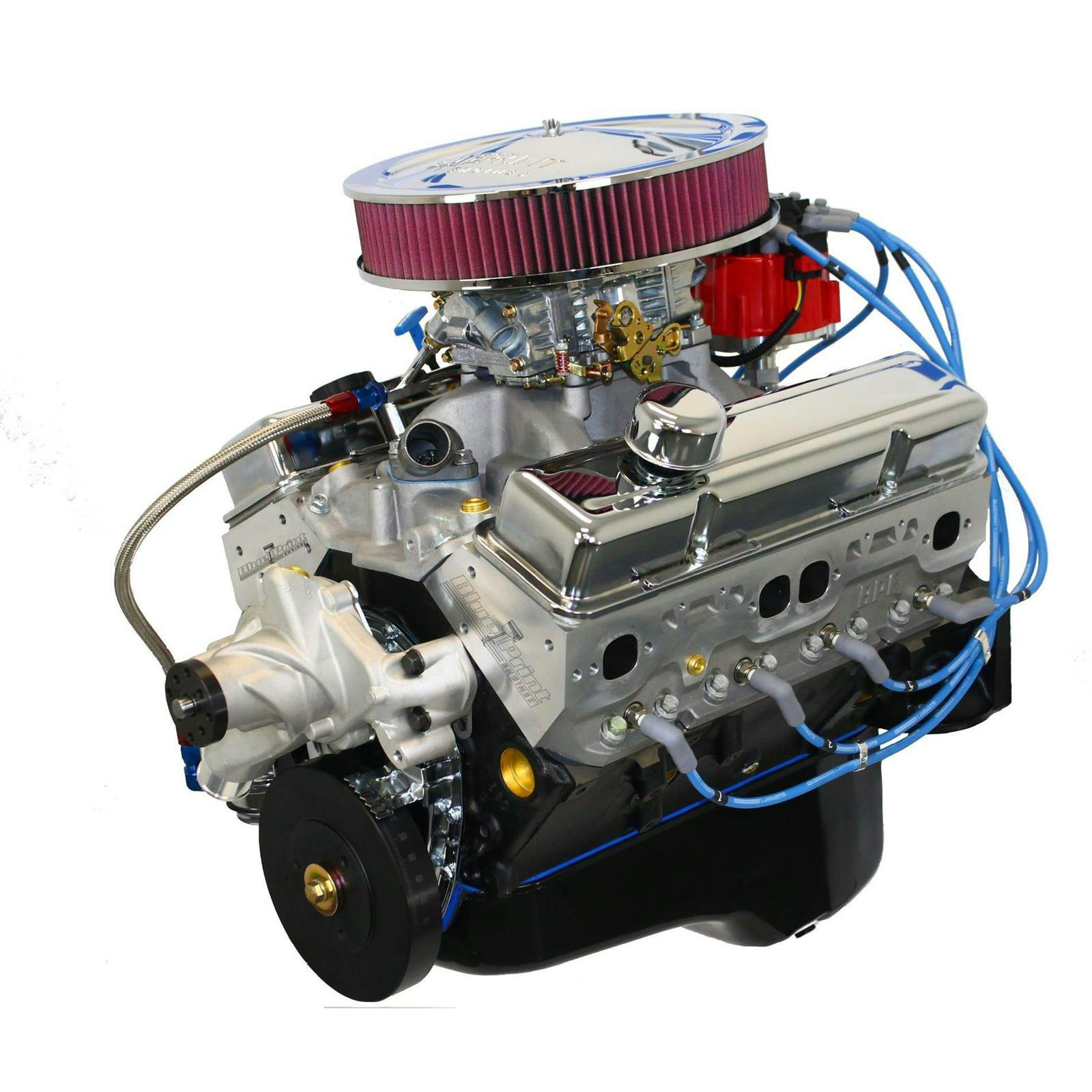

BluePrint Engines BP38313CTC1D Dressed Crate Engine, Chevy 383

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

BluePrint Engines - Crate Engines - Chevy 383

Block:

• 4-Bolt Main
• 1-Piece Rear Main Seal
• Passenger Side Dipstick
• Align Honed Main Bearing Bore
• Cylinders Honed on Computer Controlled Machine to Within .0002" Straightness and Roundness
• Cylinders are Sonic Tested for Thickness

Rotating Assembly:

• New 3.75'' Stroke Cast Steel Crankshaft
• 5.70'' Heavy Beam Connecting Rods with 150,000 psi Bolts
• 10.0:1 Compression Ratio
• Hypereutectic Pistons
• Hastings Moly Piston Rings
• Melling High Volume Oil Pump
• Hydraulic Roller Camshaft
• Heavy Duty Timing Set



Cylinder Heads:

• Blueprint Aluminum Cylinder Heads (p/n 138-H8002K)
• 195cc Intake Runner Volume
• 75cc Exhaust Runner Volume
• 2.02" Swirl Polished Intake Valves
• 1.60" Swirl Polished Exhaust Valves
• Hardened Retainers and 1.437" Diameter Dual Valve Springs
• Straight Spark Plug Configuration



Cam Specs:

• Hydraulic Roller
• Lift: .528'' Intake / .536'' Exhaust
• Duration @ .050'' Lift: 221° Intake / 226° Exhaust
• Lobe Separation: 110°

Also Includes:

• 14" Diameter Chrome Air Cleaner
• Spark Plug Wires & Plugs
• Standard Rotation Water Pump, Long style
• Mechanical Fuel Pump & Stainless Steel Fuel Pump to Carb Supply Line
• 8.0" Diameter Harmonic Balancer
• Water Neck

Warranty:

30 month / 50,000 mile

Warranty Information (PDF)
