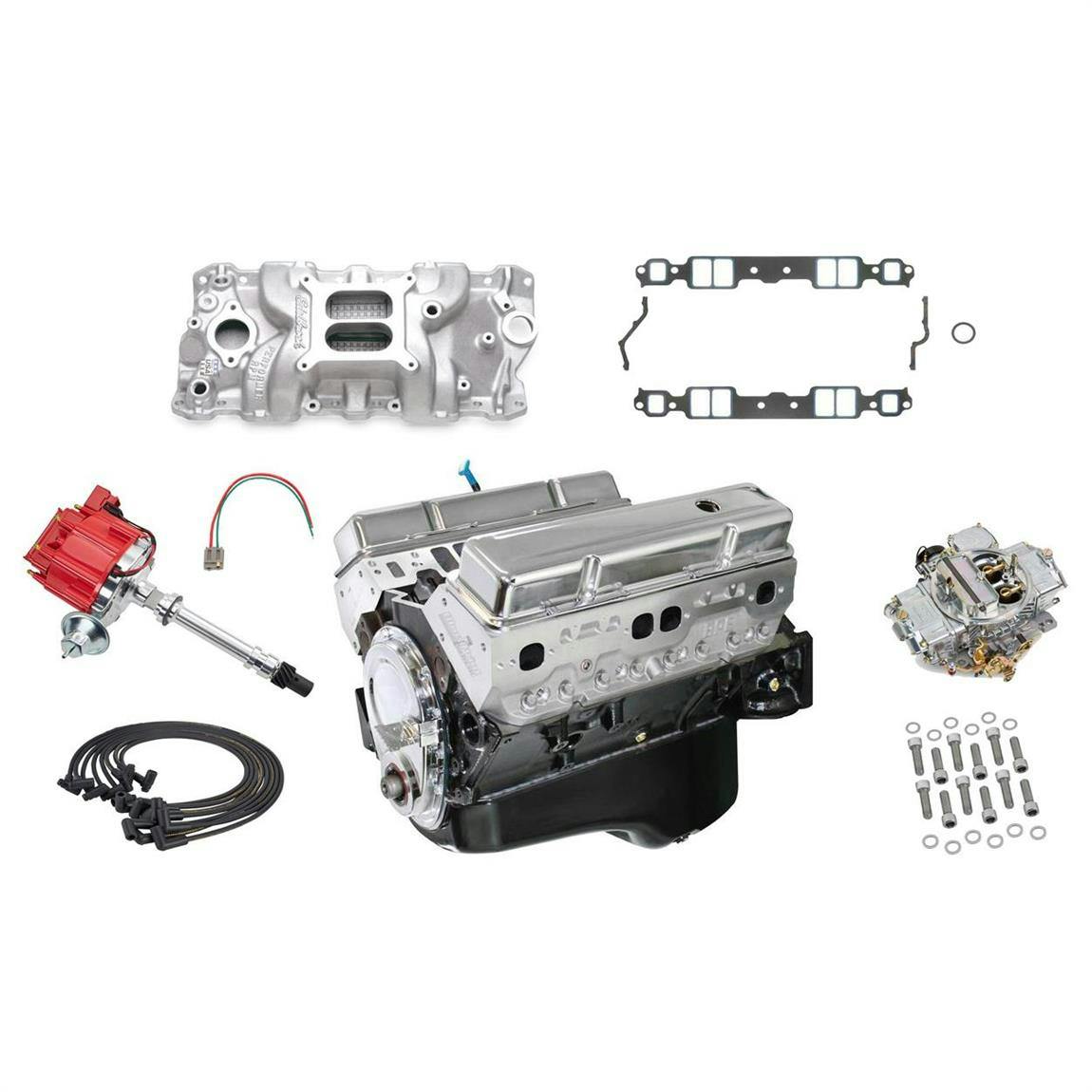

BluePrint 383 Small Block Chevy Crate Engine Kit

BluePrint 383 Small Block Chevy Roller Crate Engine

This 383 Chevy "Stroker" motor is a Speedway Exclusive! Machined and assembled at BluePrint Engines, each engine is dyno tested (includes individual dyno sheet) and comes with a 30 month/50,000 mile warranty. Each crate engine is built to crank out 430 hp @ 5200 rpm and 450 ft.-lbs. @ 4300 rpm.

• 430 hp @ 5200 rpm
• 450 ft.-lbs. @ 4300 rpm
• Bore x Stroke: 4.040" x 3.75"
• 4-bolt main, 1-piece rear main seal seasoned block
• Passenger side dipstick
• Brass freeze plugs
• Chrome valve covers and timing cover
• New plain steel oil pan
• New cast steel crankshaft
• Rotating assembly balanced to within 2 grams
• Heavy beam connecting rods with 150,000 psi bolts
• Harmonic balancer
• 153 tooth flexplate w/ single 3-bolt converter pattern 10-3/4" bolt circle
• Hypereutectic pistons
• 10:1 compression
• Hydraulic roller camshaft
• Aluminum 1.5:1 ratio roller rocker arms
• Performance aluminum cylinder heads
• Hardened retainers and performance valve springs
• Aluminum dual plane intake
• New HEI distributor
• 91 Octane recommended fuel
• 2500 stall converter recommended

Truck Freight Shipping Charges Apply - click here for details.

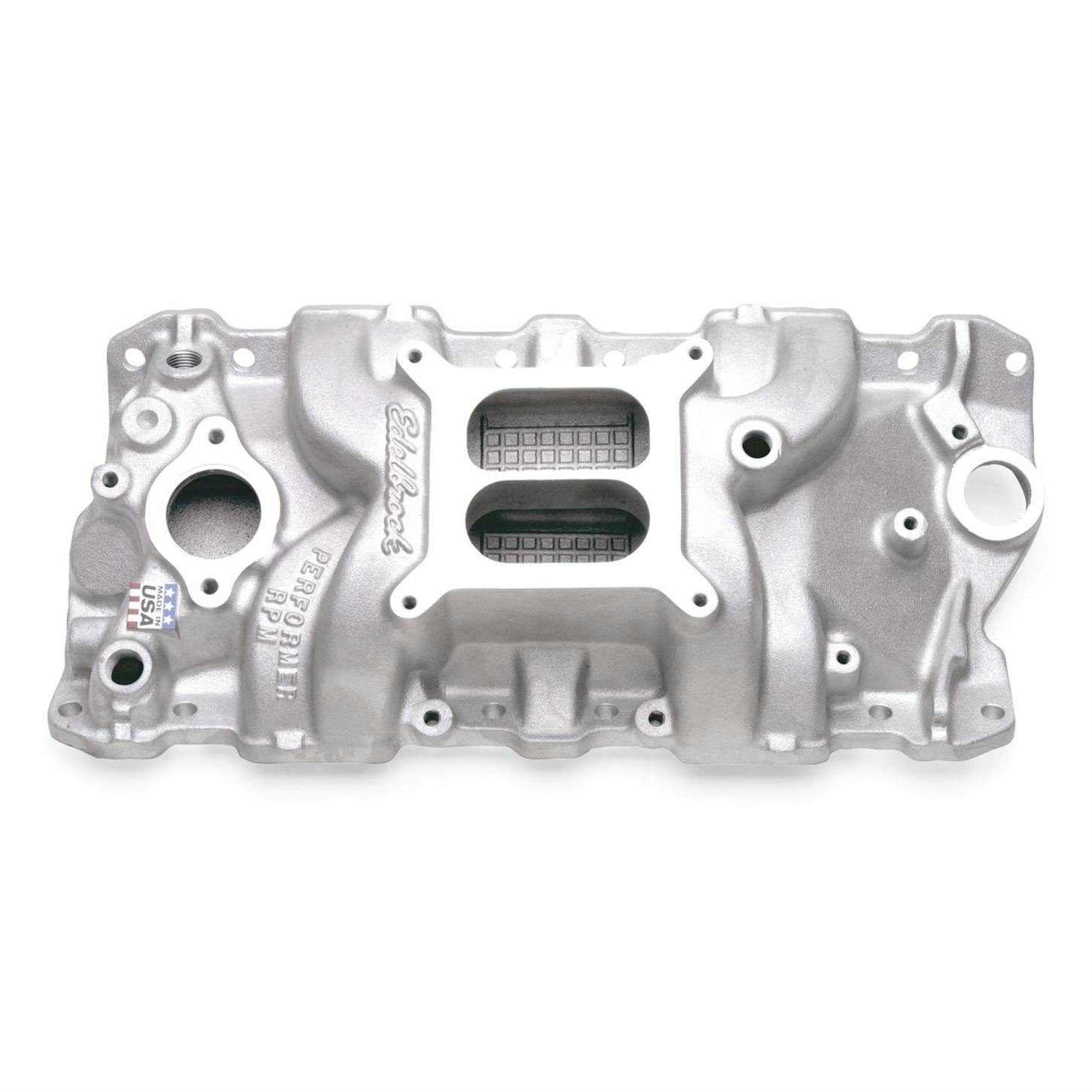

Edelbrock 7107 Performer RPM Intake Manifold

These Performer RPM intake manifolds are dual-plane, high-rise intakes with 180° firing order to produce incredible top-end horsepower while retaining good throttle response. Their larger plenums and runners match the free-flowing exhaust, high-lift cams and other modifications of a high output engine. They are intended for high-performance street or competition engines that run up to 6500 rpm. They are not recommended for emissions equipped engines.

• Chevrolet 262-400 Small-Block V8
• PERFORMER RPM (1500-6500 rpm)
• Designed for 1955-86 262-400 c.i.d. Chevy V8s for maximum power and a broad torque curve for high-performance street/marine
• Provides power like a single-plane and throttle response like a dual-plane
• Has provisions to add oil fill tube
• No provisions for exhaust heated or stock-style choke
• Accepts late-model waterneck, air-conditioning, alternator and H.E.I.
• Will fit cast iron Chevrolet Bowtie heads, but will not fit 1987 and later cast iron heads
• Will not fit under stock Corvette hood

Item Details

Manufacturer p/n: 7101



Holley 0-80508S 750 CFM Classic Holley Electric Chock Carburetor

One of the most widely used Holley carbs of all times -the 0-80508S! Its dual feed fuel inlets assure you get all the fuel you need and its 750 CFM of airflow makes it the perfect performance upgrade carb. Its vacuum secondaries and electric choke make it super easy to use on a wide range of vehicles. Don't trust your performance to just anyone, Holley is the only modular carburetor company that has been in business for over 100 years and has powered every NASCAR champion since the 60's.

• Vibratory polished for good looks
• Performance upgrade for stock to mildly modified vehicles
• Universal calibration for easy bolt-on performance
• Factory preset electric choke for easy startups
• Vacuum secondaries for use on wide variety of vehicles. Compensate for all vehicle weights, gearing & transmissions to allow smooth opening of secondaries.
• Dual feed fuel inlets for constant high volume fuel delivery
• Ford A/T kickdown
• Power valve blow-out protection
• 100% wet-flow tested by Holley technicians to assure it arrives ready to run!

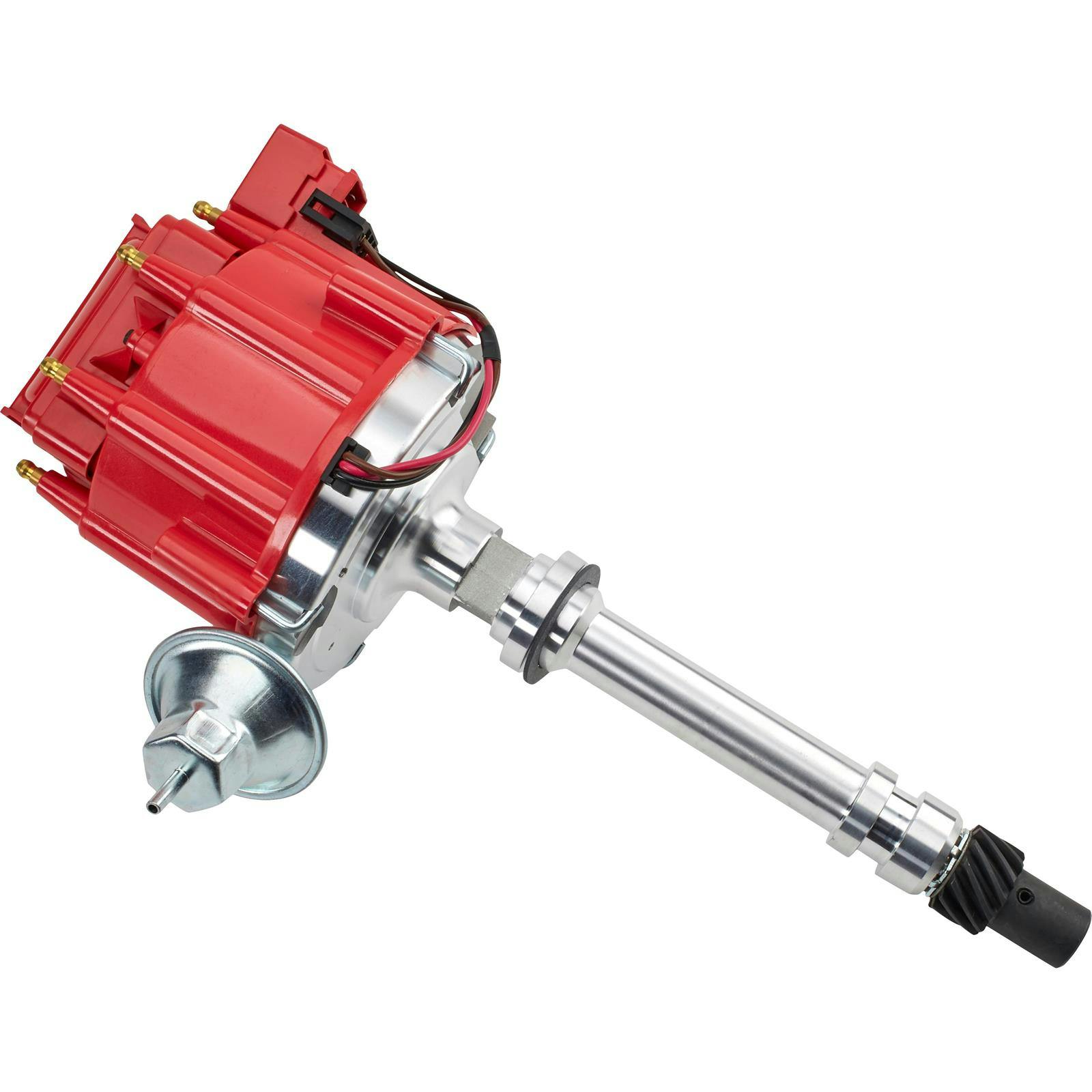

Performace HEI Distributor

• Complete assembled HEI distributor ready to install
• High output 50,000 volt ignition coil pre-installed
• Premium high-temperature distributor cap with brass terminals
• 4340 chromoly steel distributor gear compatible with cast and steel billet camshafts
• Mechanical and vacuum advance systems, vacuum adjustable right on distributor
• GM standard 4-pin electronic ignition module included rated to 7,500 rpm
• Performance advance curve built in
• Distributor cap outside diameter of 6-inches clears most firewalls
• Service parts easily available for maintenance and repair needs
• Includes distributor base gasket

Our HEI Distributor for Your Small Block or Big Block Chevy is a Real Performance Value

General Motors’ High Energy Ignition (HEI) debuted in the 1970s to replace the long used points ignition system that had been in place. HEI systems provide a more powerful spark to the spark plugs, allowing a wider plug gap for more complete ignition of the air/fuel mixture that has been compressed in the combustion chamber. The system is remarkably simple and dependable, with a direct mounted ignition coil and only requiring a single key switched power connection to function (with a properly grounded engine block of course). This eliminates the external coil, coil mounting bracket (and the room for it), any resistor wire or ballast resistor, and the wiring between the coil and distributor.

Due to the popularity of the GM HEI distributor, there have been numerous versions sold online over the years, many of questionable quality. Often, there is no way to easily source their GM HEI distributor parts to keep that bargain Chevy HEI distributor you scored online somewhere in running condition. Now it is no longer a bargain when you must shell out more money for another HEI distributor. We aimed to solve these problems when designing our HEI distributor by using quality components, precision manufacturing, and easily serviceable parts. From the standard 4-pin HEI distributor module to the HEI distributor cap, and more, we stock everything you need to freshen up your Speedway Motors HEI distributor for years of trouble free service but in an emergency, you can source replacement parts from the nearest automotive parts chain store.

Built Right, Built to Last, and Easily Serviced Anywhere

We start with a CNC machined and highly polished aluminum housing that is fitted with a performance ignition 4-pin HEI distributor module, high voltage coil, adjustable vacuum advance unit, and more. The mechanical advance can be fine tuned using a universal HEI distributor recurve kit, but for most street applications the mechanical advance curve fitted will work right out of the box. The 4340 chromoly steel gear fitted to the distributor shaft is compatible with cast and billet steel cams. Our HEI distributor fits all small block Chevy V8 engines and standard deck big block Chevy engines (such as 396, 427, and 454 displacements), making it the perfect BBC distributor.

Our performance HEI distributor can be used as a replacement for a stock HEI unit, or as a retrofit from a points based ignition. If retrofitting, we recommend our GM HEI distributor pigtail to make power and tach connections more secure. Furthermore, due to the HEI style distributor cap terminals you will need to update your wires to the appropriate HEI plug wire kit or better yet, grab one of our HEI distributor kits with plug wires and save even more money! Lastly, while you’re there, ditch that tiny stock distributor hold down for something with some real grip, like our extra heavy duty distributor clamp. We think you’ll agree once you have our performance HEI distributor in your hands that it is the best HEI distributor for the money.

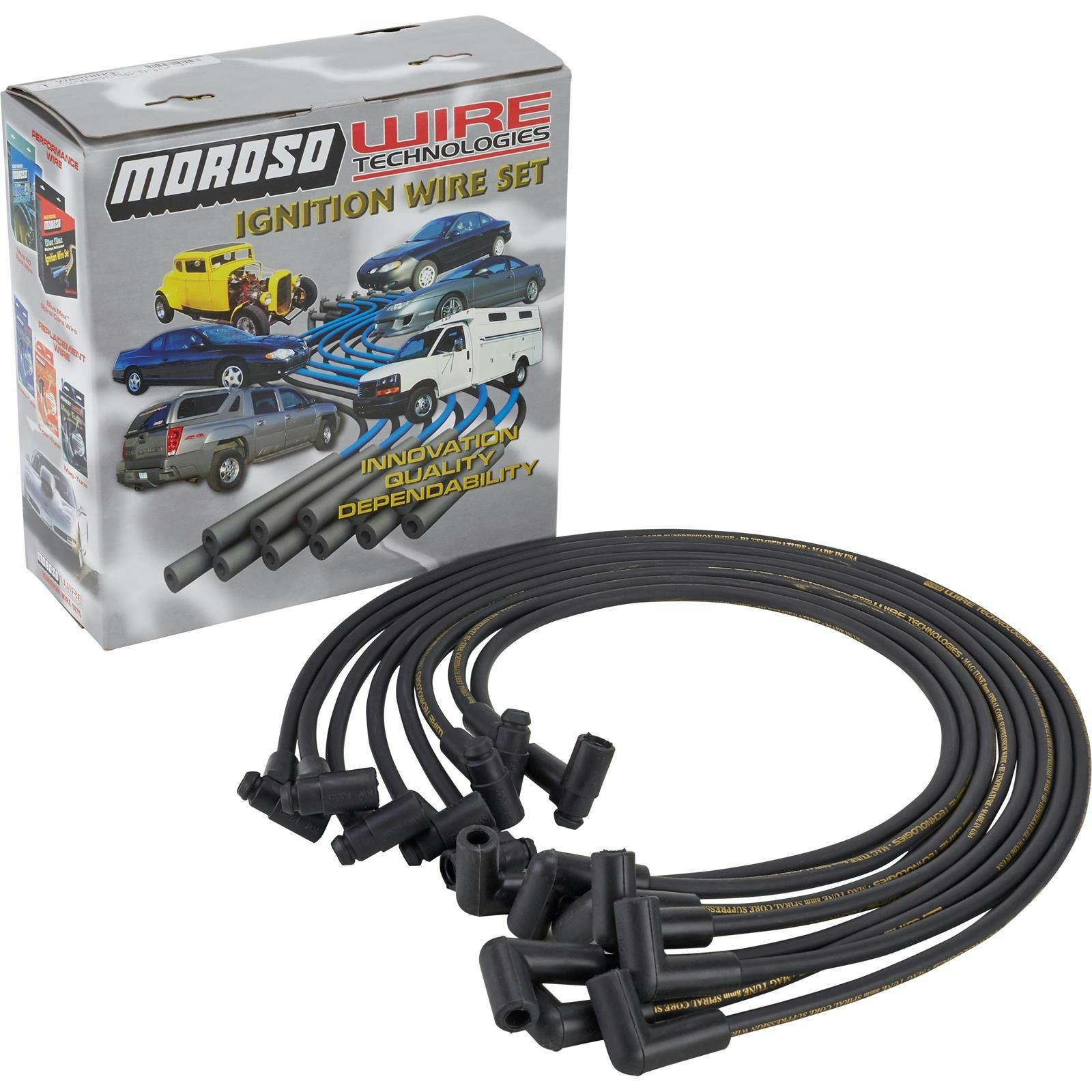

Moroso Spark Plug Wires, HEI Cap

If you have ever tried to put plug wires together yourself, you know how frustrating it can be. These pre-assembled Moroso 8mm spiral core wires are fiberglass reinforced with a silicone outer layer. Wires have 90° boots on both ends. Available in red or black for small block Chevy.

Plug Wire Lengths Included:

• 37-7/8" x 1
• 37"       x 2
• 35-1/2" x 1
• 33"       x 1
• 29-5/5" x 1
• 27-3/4" x 2

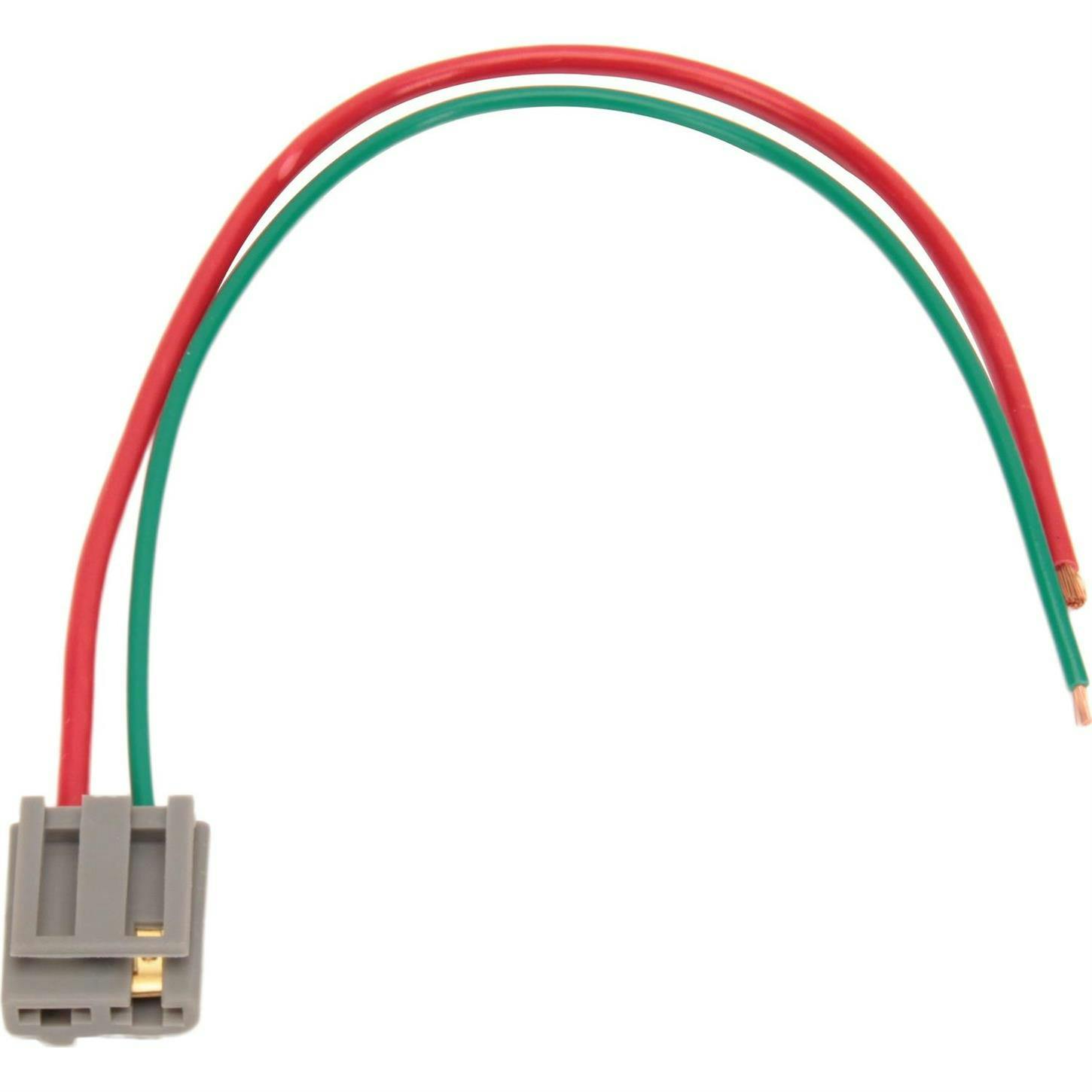

GM HEI Distributor Wiring Pigtail Connector

This wiring pigtail features a dual HEI connector that helps clean up your engine bay by eliminating the use of single spade connectors to make battery and tachometer connections. 10 inch long wires that are red and green to identify battery and tachometer.

• 10-inch length
• Red and green wires to identify battery and tach leads

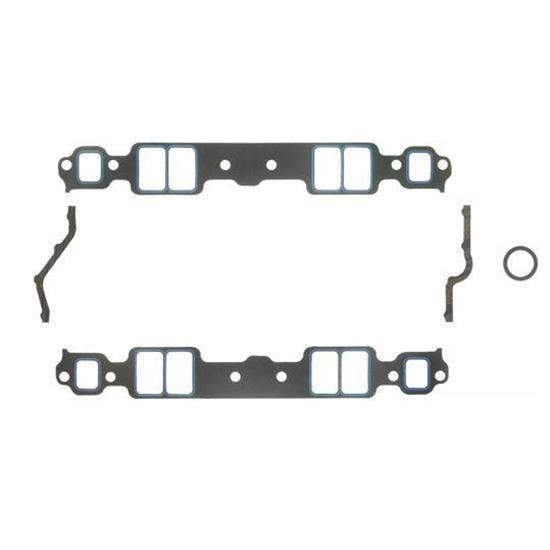

Fel-Pro 1205 Intake Gasket

Fel-Pro Blue Stripe premium quality intake manifold gaskets for Small Block Chevy (SBC).

Item Details

Stock or Small Race1.28" x 2.09"

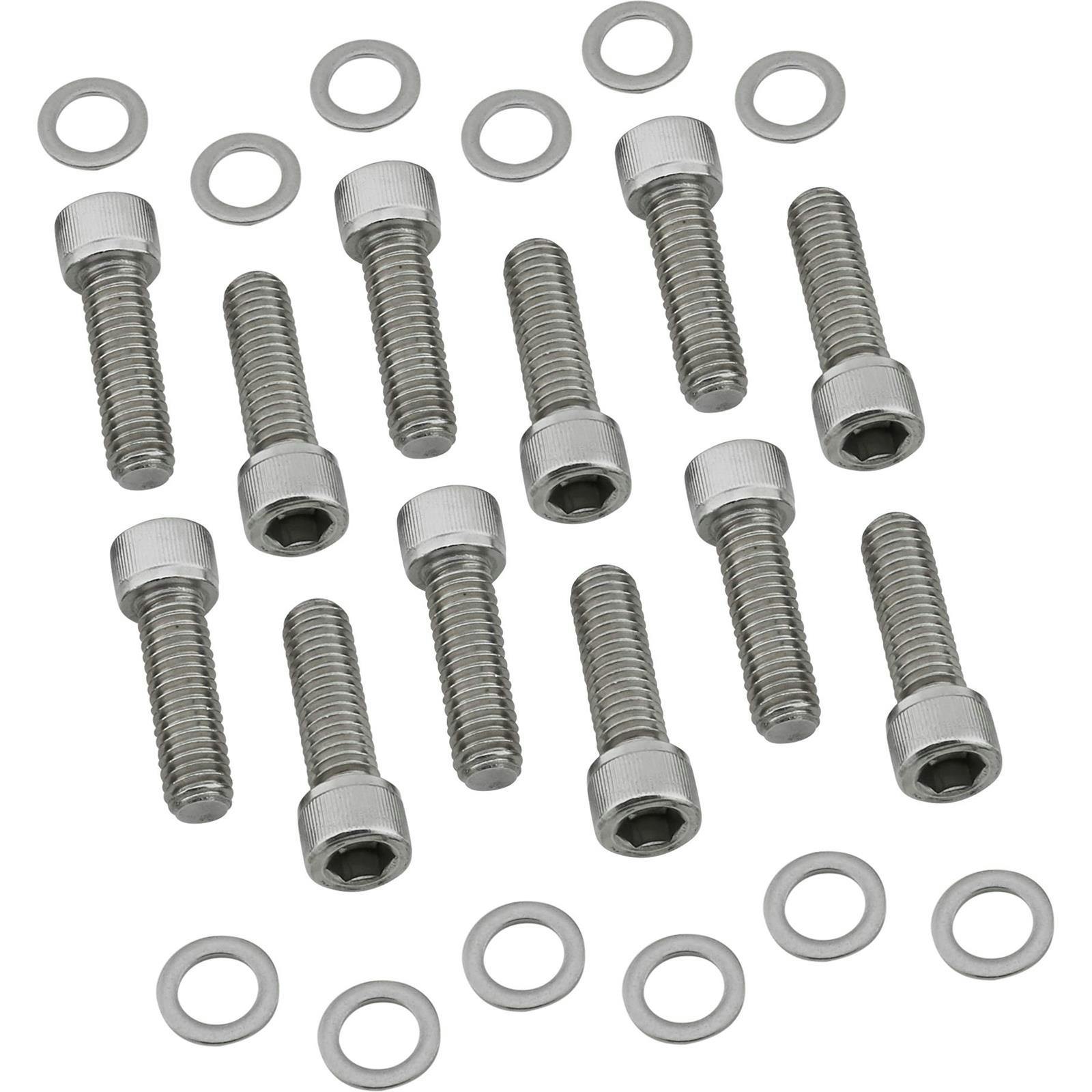

Intake Bolts

These stainless steel bolt kits will dress up your engine and resist corrosion. Allen head unless specified.

Edelbrock 600 CFM 4 Barrel Carburetor Installation Instructions(PDF)

Crate Engine Installation Guide
