BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI

BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI

350 Chevy Small Block V8, 383 Chevy Small Block V8, Long Block Crate Engine Type

0 Reviews | 1 Answered Question
On Backorder
Flat Rate Shipping
Select your vehicle to verify fitment.
Select Vehicle
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
X
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
BluePrint 383 SBC Crate Engine Package, FiTech Easy Street EFI
Zoomed In Image
Part # 91602092
Save $68
$4,839.99
$4,907.59
kit
Call to Order
Add to Buildlist
Compare
Details
What's In The Kit
Reviews
Q&A
Videos & Articles
  • This BluePrint/FiTech crate engine packages from Speedway Motors is sure to please not only you and your vehicle but your wallet as well
  • Kit includes a BluePrint 383 Small Block Chevy engine, FiTech 30005 Easy Street EFI, HEI distributor, and Moroso spark plug wires
  • BluePrint 383 hydraulic flat tappet cam engine has 405 hp and 440 ft.-lbs. torque
  • FiTech Easy Street EFI system is capable of up to 600 hp and is self learning so no laptop or tuning is required
  • 91 octane fuel is recommended as well as a 2500 RPM stall converter

Build Your Kit

You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.
Next
Add to Cart

Details

Crate Engine Type:
Long Block
Engine Displacement:
383 cu. in.
Horsepower:
405 horsepower
Compression Ratio:
9.5:1
Torque:
440 ft./lbs.
Maximum RPM:
5800
Camshaft Type:
Hydraulic Flat Tappet
Cylinder Head Material:
Cast Iron
Piston Material:
Hypereutectic Aluminum
Crankshaft Material:
Cast Steel
Camshaft Duration (.050 in):
234° intake / 244° exhaust
Camshaft Lift (in):
.487 intake / .503 exhaust
Intake Manifold Included:
Yes
Distributor Included:
No
Warranty:
30 month/50,000 mile
Valve Covers Included:
Yes
Assembled:
Yes
Cylinder Heads Included:
Yes
Rear Main Seal Style:
1-piece
Throttle Body Included:
Yes
Oil Pan Included:
Yes
Timing Cover Included:
Yes
Water Pump Included:
No
Harmonic Balancer Included:
No
Flexplate Included:
No
Flywheel Included:
No
Air Cleaner Included:
No
Spark Plugs Included:
No
Spark Plug Wires Included:
Yes
Exhaust Valves Included:
Yes
Intake Style:
Electronic Fuel Injection
Camshaft Included:
Yes
Rocker Arm Ratio:
N/A
Block:
Cast Iron, 4 bolt main
Sold in Quantity:
Kit

Info

What's better than classic cubic inches and trusted EFI to power your ride?  These BluePrint/FiTech crate engine packages from Speedway Motors are sure to please, not only you and your vehicle but your wallet as well.

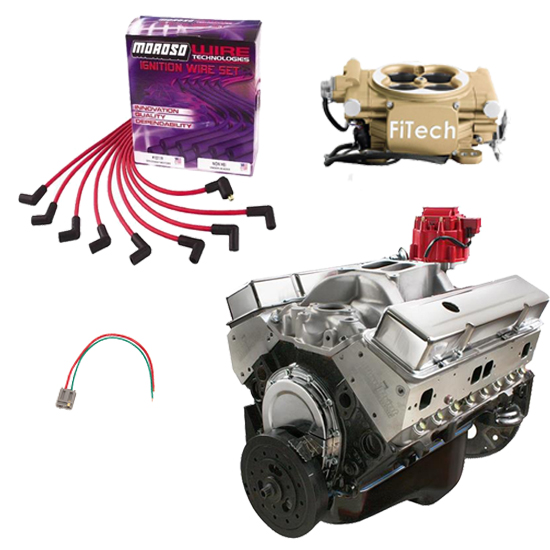

Kit Includes:

  • (1) BluePrint 383 Small Block Chevy Crate Engine, 405 Horsepower
  • (1) FiTech 30005 Easy Street EFI Throttle Body System, 600HP
  • (1) Moroso HEI Under Header Spark Plug Wire Set, Black
  • (1) GM HEI Distributor Wiring Pigtail Connector, 10 Inch



BluePrint 383 Crate Engine

True Blue Power! BluePrints pro engine builders are enthusiasts just like you and it shows in the quality and performance of every engine they build. Each BluePrint crate engine is carefully dyno tested and ships with printed, proven results. If you’re looking serious horsepower at an affordable price, BluePrint Engines is the choice for you!

GM 383 Base Engine - Cast Iron Vortec Heads - Flat Tappet Cam

Overview

  • HP & Torque: 405 HP / 440 FT LBS
  • Compression Ratio: 9.5:1
  • Cast Iron Heads
  • Flat Tappet Cam
  • Cast Steel Crank
  • Part #: BP3830CT1

Block

  • 4 bolt main 1pc rear seal block w/Passenger side dipstick only
  • Square and parallel decked
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness

Rotating Assembly

  • New cast steel crankshaft
  • Hypereutetic pistons
  • Chevy heavy beam rods with 150,000 psi bolts
  • Hastings Moly rings
  • Balanced rotating assembly
  • Melling high volume oil pump
  • Flat tappet hydraulic lifter camshaft
  • Heavy duty double roller timing set

Cylinder Heads

  • Cast iron Vortec heads
  • 1.25 diameter valve springs
  • Hardened retainers and springs
  • 2.02 swirl polished intake valves
  • 1.60 swirl polished exhaust valves
  • 1.5 long slot, stamped steel rockers
  • Hardened push rods

Cam Specs

  • Cam Type: Flat Tappet
  • .487 Intake .503 Exhaust
  • 234 Intake / 244 Exhaust duration
  • @ .050 - 112 degree lobe separation

Ignition Timing

  • 34 Degrees Total at 3500 RPM

Also Includes:

  • Aluminum intake manifold
  • New chrome valve covers
  • Brass freeze plugs
  • Dyno test results shipped with engine

Note: This engine requires a 400ci weighted harmonic balancer, and late 350ci weighted flexplate/flywheel.BluePrint Engines recommends a 2000- 2400 rpm stall converter. Not for use in pollution controlled vehicles.

Crate Engine Installation Guide

Truck Freight Shipping Charges Apply - click here for details.



Moroso Spark Plug Wire Set

If you have ever tried to put plug wires together yourself, you know how frustrating it can be. These pre-assembled Moroso 8mm spiral core wires are fiberglass reinforced with a silicone outer layer. Wires have 90° boots on both ends. Available in black for small block Chevy.
  • Spiral Core Conductor Style
  • HEI/Male Cap Terminal Style
  • 90° spark plug boot ends
  • 8mm diameter wire
  • No coil wire included



GM HEI Distributor Pigtail

This wiring pigtail features a dual HEI connector that helps clean up your engine bay by eliminating the use of single spade connectors to make battery and tachometer connections. 10 inch long wires that are red and green to identify battery and tachometer.

  • 10-inch length
  • Red and green wires to identify battery and tach leads



Notes

FiTech EFI Throttle Body System

FiTech Easy Street EFI 600HP System is the perfect solution to bring new life to your build, with just a touch of classic styling. They arrive pre-programmed for an out of the box performance experience and can be set up in a matter of minutes. FiTech Easy Street EFI System features 4 flow matched 80-lb injectors and utilizes Annular Swirl Wet Flow technology for complete fuel atomization. Easy Street series throttle body is finished in that classic carburetor gold and fits on any 4 barrel intake manifold, providing you the best combination of budget-minded, modern fuel injection technology!

  • Classic Carburetor Gold Finish.
  • Four FiTech 80-lb flow matched injectors.
  • Extreme self-learning for wide range super-fast dial in correction.
  • Suitable for crate engines and performance engines.
  • Pre-programmed with Bolt-N-Go technology for out of the box
    performance with minimal input required
  • Easy tach input, reads tach signal from COIL, HEI, CDI, and many other
    ignition brands (NO TIMING CONTROL)
  • For non-boosted engines-natural aspirated applications ONLY
  • Wideband O2 sensor with mounting kit
  • Onboard fuel pump driver with PWM
  • Annular discharge design
  • HandHeld tunning module for performance tuning
  • 1 fan control
  • E85 compatible (30% reduction in HP capacity of fuel system and EFI)

These fuel injection units are backed by a 1-year manufacturer warranty. Tuning and technical support are available through the phone and online support by the way of tech articles and emails. It's out-of-the-box compatible with everything from a 200 horsepower, small cubic inch factory original motor all the way up to a 600 HP engine build. FiTech Go Street EFI will provide lower idle rpm, cleaner startup and crisp throttle response - features the best carb tuners in the world can’t match and only come with FiTech technology.

5213005 Instructions (PDF)





Warranties

Warranty Information (PDF)



Notes

Zinc Additive Required For Flat Tappet Application, Recommended Oil For Your BluePrint Crate Engine: 10W30, Non-Synthetic. Not For EGR
Some parts are not legal for use in California or other states with similar laws/regulations

What's In The Kit

Each kit from Speedway Motors is carefully packaged and delivered right to your door. Below is a list of all the items you should expect to receive when you order this kit. Some of these items may also be available for sale individually if you're here looking for replacement parts.
  • BluePrint BP3830CT1 GM 383 Base Engine, Vortec Heads, Flat Tappet Cam
    Qty x 1
  • FiTech 30005 Easy Street EFI System, 600 HP
    Qty x 1
  • Moroso Ready to Install Plug Wires HEI/Under Header/Blk
    Qty x 1
  • GM HEI Distributor Wiring Pigtail Connector, 10 Inch
    Qty x 1
