Black Model A Tail Light Bracket, Right

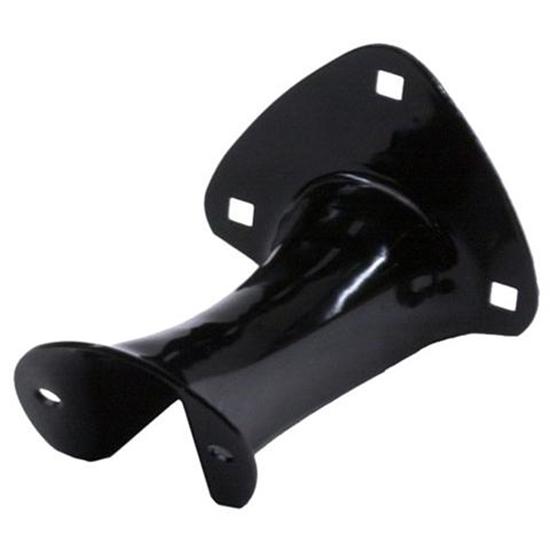

Stamped steel Model A tail light bracket (tail light is not included). Black powder coat finish. Left side bracket will mount license plate bracket.

Three holes are drilled to mount this bracket to your Model A fender:

• The bottom two holes are 3-7/8" center to center
• The top hole is 3-3/8" center to center with each bottom hole

• Mount point to mount point is 5-3/8 "
• The flange to which the taillight attaches is 2.375 " round, with the taillight bolt holes (2 of them, ¼ " diameter), horizontal, 1.75 " apart
• The flanges for the taillight and the fender are not parallel, but are the closest at 4.5 "
• The fender flange is triangle-shaped, 3.625 " wide by 2.75 " tall
• The 3-bolt pattern of the fender flange is 2.25 " by 2.25 " by 2.875 " (1/4 " square holes)
• Three holes are drilled to mount this bracket to your Model A fender:
  • The bottom two holes are 3-7/8 " center to center
  • The top hole is 3-3/8 " center to center with each bottom hole

• Mount point to mount point is 5-3/8 "
• The flange to which the taillight attaches is 2.375 " round, with the taillight bolt holes (2 of them, ¼ " diameter), horizontal, 1.75 " apart
• The flanges for the taillight and the fender are not parallel, but are the closest at 4.5 "
• The fender flange is triangle-shaped, 3.625 " wide by 2.75 " tall
• The 3-bolt pattern of the fender flange is 2.25 " by 2.25 " by 2.875 " (1/4 " square holes)
• Three holes are drilled to mount this bracket to your Model A fender:
  • The bottom two holes are 3-7/8 " center to center
  • The top hole is 3-3/8 " center to center with each bottom hole
