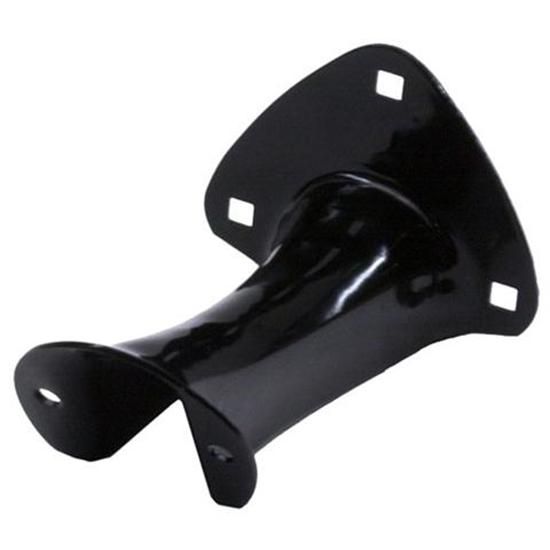

Black Model A Tail Light Bracket, Left

Stamped steel Model A tail light bracket (taillight is not included). Black powder coat finish. Left side bracket will mount license plate bracket.

Three holes are drilled to mount this bracket to your Model A fender:

• The bottom two holes are 3-7/8" center to center
• The top hole is 3-3/8" center to center with each bottom hole

• Mount point to mount point is 5-3/8 "
• The flange to which the taillight attaches is 2.375 " round, with the taillight bolt holes (2 of them, ¼ " diameter), horizontal, 1.75 " apart
• The flanges for the taillight and the fender are not parallel, but are the closest at 4.5 "
• The fender flange is triangle-shaped, 3.625 " wide by 2.75 " tall
• The 3-bolt pattern of the fender flange is 2.25 " by 2.25 " by 2.875 " (1/4 " square holes)
