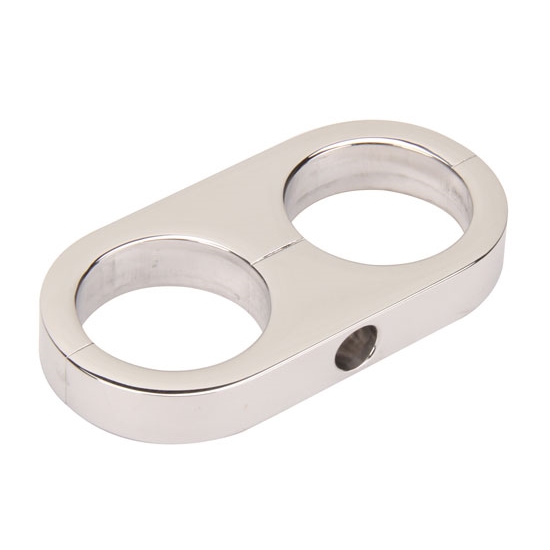

Billet Specialties 68820 Alum Hose Separator Clamp, 1.015 x 1.015 Inch

These Billet Specialties engine dress-up hose separators are designed to separate two hoses and mount them directly to the frame or firewall. They are machined from 6061-T6 billet aluminum and fully polished for a detailed touch.

• Precision machined from 6061-T6 billet aluminum
• Mirror polished finish
• For 1.015" x 1.015" O.D. hoses
• Stainless bolts
• Sold individually

Tech Tip: A hose’s listed size is always in reference to the inside diameter of that hose. Example, a 5/8” heater hose has an inside diameter (I.D.) of 5/8” while the outside diameter (O.D.) is 29/32” or .906. The O.D. is the dimension needed when purchasing hose separators.

Hose Separator Size Guide:

Braided AC Hose Diameter:

             Hose #       Decimal      Fraction

• #6            .440"         7/16"
• #8            .540"        35/64"
• #10           .630"          5/8"

AC Hose Diameter:

             Hose #       Decimal      Fraction

• #6            .734"         47/64"
• #8            .890"         57/64"
• #10           .969"         31/32"

Braided AN Line Diameter:

             Size       Decimal      Fraction

• -6         .562"         9/16"
• -8         .625"          5/8"
• -10       .781"        25/32"
• -12       .906"        29/32"
• -16      1.125"       1-1/8"

Heater Hose Diameter:

             Size       Decimal      Fraction

• 5/8"      .906"       29/32"
• 3/4"     1.015"     1-1/64"
