Billet Specialties 68225 Alum Hose Separator Clamp, .562 x .625 Inch
Universal Fit, 2 Hole Count, .63" Hole Diameter, 1.81" Overall Length, .95" Overall Width
Important Messages:
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Details
Info

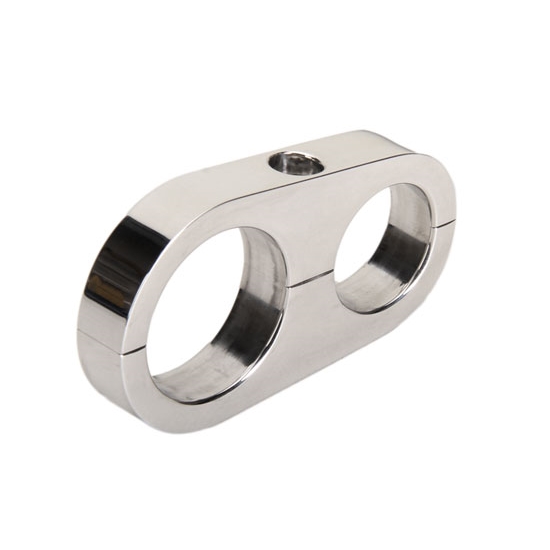

These Billet Specialties engine dress-up hose separators are designed to separate two hoses and mount them directly to the frame or firewall. They are machined from 6061-T6 billet aluminum and fully polished for a detailed touch.
- Precision machined from 6061-T6 billet aluminum
- Mirror polished finish
- For .562" x .625" O.D. hoses
- Stainless bolts
- Sold individually
Tech Tip: A hose’s listed size is always in reference to the inside diameter of that hose. Example, a 5/8” heater hose has an inside diameter (I.D.) of 5/8” while the outside diameter (O.D.) is 29/32” or .906. The O.D. is the dimension needed when purchasing hose separators.
Hose Separator Size Guide:
Braided AC Hose Diameter:
Hose # Decimal Fraction
- #6 .440" 7/16"
- #8 .540" 35/64"
- #10 .630" 5/8"
AC Hose Diameter:
Hose # Decimal Fraction
- #6 .734" 47/64"
- #8 .890" 57/64"
- #10 .969" 31/32"
Braided AN Line Diameter:
Size Decimal Fraction
- -6 .562" 9/16"
- -8 .625" 5/8"
- -10 .781" 25/32"
- -12 .906" 29/32"
- -16 1.125" 1-1/8"
Heater Hose Diameter:
Size Decimal Fraction
- 5/8" .906" 29/32"
- 3/4" 1.015" 1-1/64"
