#83512010188

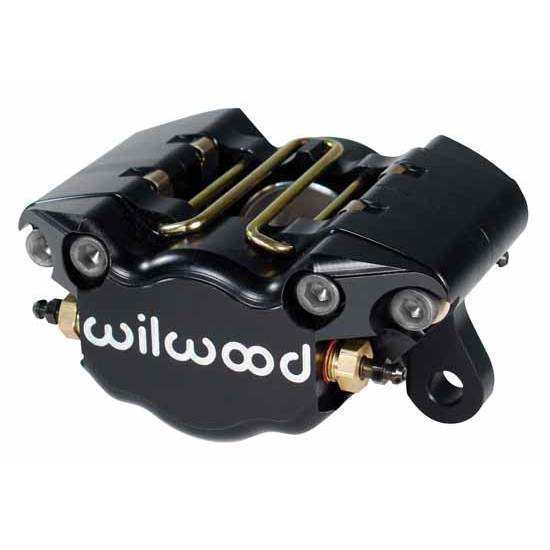

Billet Dynapro Caliper-3.25

Name: Billet Dynapro Caliper-3.25
Brand: Wilwood
SKU: 83512010188
Price: 153.33 USD
Availability: InStock
Rating: 5 (1 reviews)

1 Review

1 Question

Has integrated internal fluid passages
Features heavy wall stainless steel pistons
The Quick-E-Clip pad retainers supports brake pad from top

$153.33

/each

In Stock

$160.01

Save $6.68

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Dirt Late Model, Midget, Sprint Car, 1.75" Bore Size

Has integrated internal fluid passages
Features heavy wall stainless steel pistons
The Quick-E-Clip pad retainers supports brake pad from top
Stainless steel SRS bridge plates eliminate pad rattle and dampen vibration
Four corner bleed screws allow mounting in any front, rear, left, or right side position

See more details

Key Specs

Caliper Pistons	Two
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Wilwood 120-10188 Details

The Dyna Pro Single (DPS) billet caliper is the newest generation of calipers available as an upgrade or replacement for applications previously using the Dynalite Single (DLS) series. DPS calipers combine superior strength with performance enhancements to make these the best "Dyna" series calipers ever.

The DPS is loaded with exclusive Wilwood performance enhancements. The calipers feature Quick-E-Clip pad retainers that support a 6812 type brake pad from the top. In addition to past pad service without caliper removal, the feature provides substantially stronger retention over the single Quick-Clip pin and 7012 type pads used in the previous DLS models.

Quick-E-Clip pad retainers supports brake pad from top
Heavy wall stainless steel pistons
Stainless steel SRS bridge plates eliminate pad rattle and dampen vibration
Internal fluid passages
Four corner bleed screws allow mounting in any front, rear, left, or right side position

Item Details

3.25" mounting center, .380" rotor

Charts

835-12010188 Specs (JPG)

Specs

Piston Count: 2
Piston Bore: 1.75"
Area (in²): 2.40
Rotor Dimensions:
- Rotor Width: 0.38"
- Minimum Rotor Width: 0.25"
- Rotor Diameter: 6"
Pad Dimensions:
- Pad Area (in²): 3
- Pad Volume (in³): 1.1
Mount Type: Lug
Mount Side: Universal
Mount Hole Size: 0.39"
Mount Height: 1.92"

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Wilwood 120-10188 Specifications

KEY SPECS
MFG. Part #	120-10188
Brand	Wilwood
Caliper Pistons	Two
Fitting Attachment 1	Female Threads
Parking Brake Provision	No
Fittings Included	No
Brake Pads Included	No
Material Type	Aluminum

GENERAL
Piston Diameter	1.75"
Caliper Material Type	Aluminum
Caliper Color	Gray
Thread Size	1/8" NPT
Bracket Included	No
Caliper Mounting Type	Lug
Sold in Quantity	Each
Rotor Diameter	13 Inch
Mounting Side	Universal
Bore Size	1.75"
Color	Gray
Centerline of Holes	3.25"
Overall Length	4.78"
Thread Pitch	1/8-27 NPT
Rotor Thickness	0.38"
Finish	Type III Anodized
Total Piston Area	2.40 sq. in.
Mount Hole Size	0.39"
Mounted Height	1.92"
Pad Area	3.00 sq. in.
Pad Volume	1.10 cu. in.
GTIN Code	889545000740
Logo	Wilwood
