BendPak 5175291 Mobile Column Lift 36,000 Lbs, Low Voltage
36000 lbs. Lifting Capacity, 71.50" Lift Height Max- Pad Only, 85.00 seconds Time to Full Raise

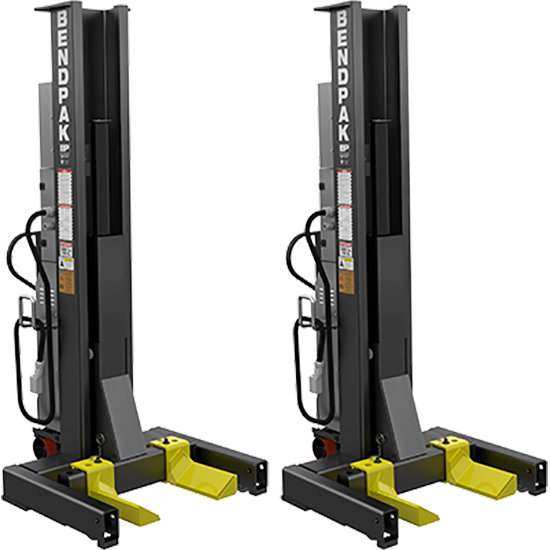

This PCL-18B mobile column lift system comes in a set of 2. When combined, the system lifts up to 36,000 lbs. A set of 2 is the perfect way to expand your lifting capabilities on vehicles with three or four axles. Sets of 4, 6 and 8 are available.
With a pair (2) of mobile column lifts, you can add to your existing fleet and expand your lifting capabilities to include larger semi-trucks and heavy-duty vehicles. A minimum of 4 mobile column lifts must be used to lift a vehicle, and heavier vehicles require 6 or 8. This 2-set is a great way to gradually upgrade into the 6 or 8-lift range, offering up to 144,000 lbs. with a full set.
- 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
- Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
- Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
- 208-240V, 50/60HZ, 3-phase main power system
- SINGLE, PAIR or TEAM operation
- Intuitive controls allow the lift to be fully programmed and controlled from any column
- The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
- Smart electronics feature self-diagnostics and self-calibration functions
- Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
- Two-speed lowering option – turtle or rabbit speed settings
- Each column is equipped with a warning light and audible alarm for critical warning alerts
- Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
*Note-Do not attempt to lift half of a vehicle (the front or back only) with only 2 mobile lifts. Vehicles must be raised on an even plane at all times.
BendPak Limited Warranty (PDF)
- Lifting Capacity: 18,000 lbs.
- A - Overall Height (RAISED) 101”
- B - Overall Height (LOWERED) 146.5”
- C - Max. Lifting Height 71.5”
- D - Overall Depth 48.75”
- E - Overall Width 45”
- F - Chassis Length 32.25”
- G - Min. Lifting Fork Width 9.5”
- H - Max. Lifting Fork Width 35”
- I - Lifting Fork Length 11.5”
- Turning Circle 40”
- Column Weight 1,450 lbs.
- Lifting Speed 85 sec
- Shipping Weight 1,450 lbs
- This item ships directly from the manufacturer. It may take an additional 2 business days for BendPak to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
