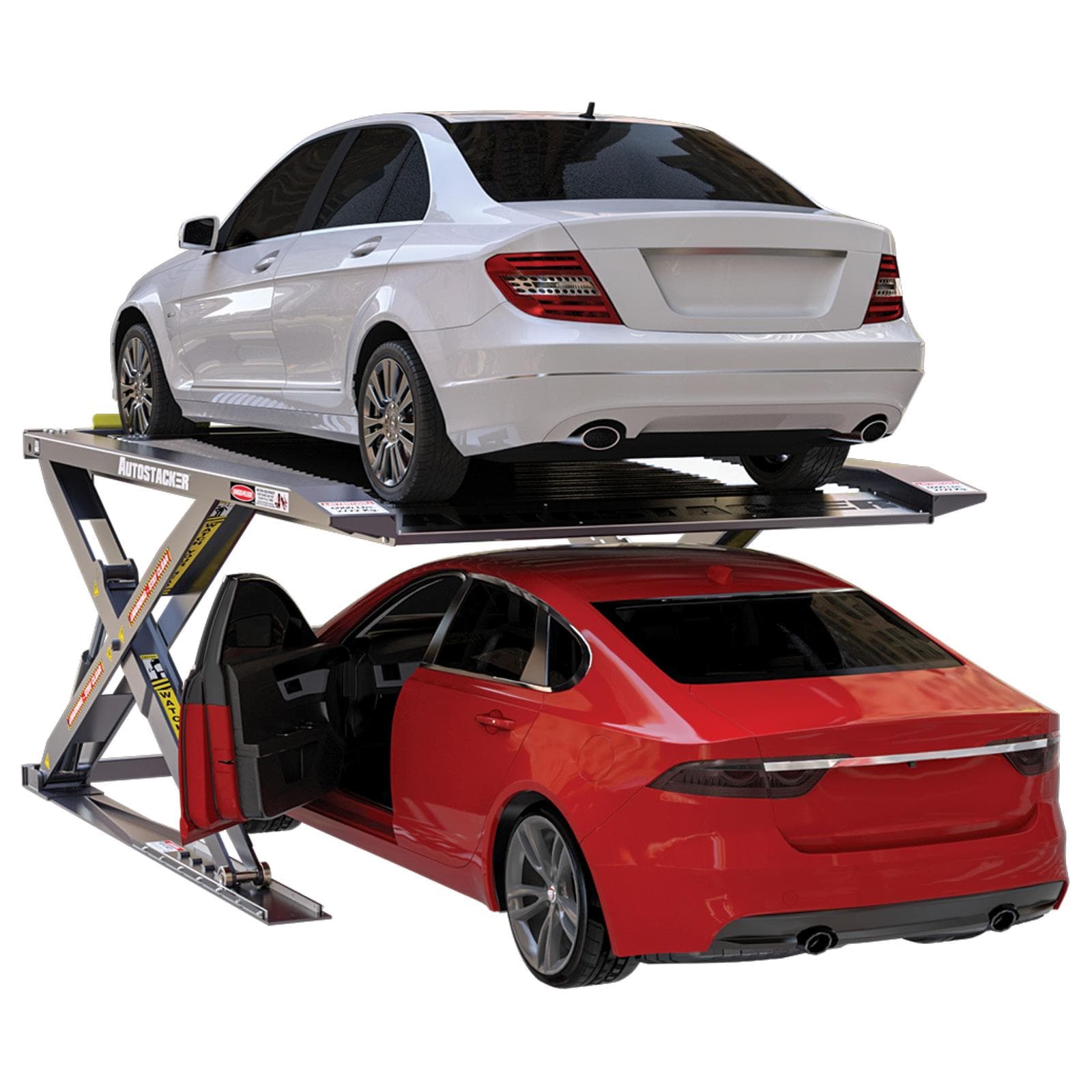

Autostacker 5175288 A6W-OPT3-G Wide Parking Lift – 6K, Aft, Galv.

Autostacker A6W-OPT3-G 6K Capacity Parking Lift / WIDE / Aft Control Kit / Galvanized / REQUIRES MPU

This is the multi-lift configuration version of the Autostacker (OPT2 and OPT3), where you can control up to 12 Lifts using a single Master Power Unit (Sold Separately). To see the individual-powered version, please go to A6S-OPT1 or A6W-OPT1 (extra wide).

Meet the extra-wide version of the world's best fully collapsible parking lift. Like our standard-width model, the extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. This model offers 8 more inches of interior space, making it easier to open vehicle doors and make a clean exit.

Autostacker is available in two versions:

• A6S. Parking Lift that allows you to make a normal parking spot into one that holds two Vehicles.

• A6W. Wide version of the A6S, with an extra 8 inches of width for your Vehicles.

 Model Description

 A6S-OPT3 6K Capacity Parking Lift / STANDARD / Aft Control Kit / REQUIRES MPU

 A6S-OPT3-G 6K Capacity Parking Lift / STANDARD / Aft Control Kit / Galvanized / REQUIRES MPU

 A6W-OPT3 6K Capacity Parking Lift / WIDE / Aft Control Kit / REQUIRES MPU

 A6W-OPT3-G 6K Capacity Parking Lift / WIDE / Aft Control Kit / Galvanized / REQUIRES MPU

Meet the Autostacker A6W, an extra-wide version of the world's best fully collapsible parking lift. Like our standard-width model, the extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. This model offers 8 more inches of interior space, making it easier to open vehicle doors and make a clean exit.

Autostacker is compact, which lets it fit in tighter spaces with ease. The potential downside of this: There are precious few inches to open a vehicle door when a car is pulled front-first into the lower space. With 8 extra inches for door clearance, the A6W offers more space for ingress and egress.

A6W Features

• 6,000-lb. lifting capacity
• Extra-wide construction for increased door clearance
• Key-switch disconnect fully disables operation for enhanced security
• Audible alarm and warning buzzer alerts operator and bystanders when the lift is in operation
• Accommodates cars, light trucks and SUVs
• Rugged, welded-steel construction is strong and durable
• 100% hot-dipped, galvanized steel platform
• Attractive slate gray, baked-on powder coat finish provides added toughness
• Front wheel dish acts as a wheel chock to prevent vehicles from rolling forward or backward
• Extra-wide, gradual sloping platform reduces entry ramp height
• Automatic safety locks engage at five different parking heights
• Simple push-button controls
• Dual, direct-drive hydraulic lifting cylinders
• Dependable hydraulic circuit that provides precise, equalized lifting
• Variable height parking accommodates a wide range of vehicle and ceiling heights
• Contoured scissor legs provide rigidity, decreased deflection and a low collapsed height
• Full-width, straight-through axles increase overall stability and tracking through the vertical travel range
• Full-width pivot pins promote straighter tracking of the scissor legs throughout travel—vital for eccentric loads
• Extra-wide, heavy-duty steel scissor arms with cross member bracing enhance stability
• Unique clevis-design scissor ends lower stress and increase rigidity by distributing loads symmetrically over the pins
• Patented asymmetric scissor arms provide greater underside door clearance
• Patented Door-sentry car door protectors are made from energy-absorbing rubber to protect against accidental scratches or door dings
• Space-saving design is perfect for commercial or residential applications
• Hydraulic safety valves (velocity fuses) prevent sudden, unexpected platform collapse in the unlikely event of hydraulic system failure
• UL Listed electrical components meet National Electrical Code (NEC) requirements

Specifications

•  Lifting Capacity: 6,000 lbs. (2,722 kg)
•  Overall width: 111” (2,815 mm)
•  Overall length: 144” (3,658 mm)
•  Platform length: 124” (3,150 mm)
•  Platform width: 91.75” (2,331 mm)
•  Platform height (forward): 13” (330 mm)
•  Ramp height (entry): 2” (51 mm)
•  Maximum under clearance: 80” (2,032 mm)
•  Under clearance on 1st lock (lowest): 52.5" (1,331 mm)
•  Under clearance on 2nd lock: 60.75" (1,543 mm)
•  Under clearance on 3rd lock: 68.5" (1,736 mm)
•  Under clearance on 4th lock: 75" (1,909 mm)
•  Under clearance on 5th lock (highest): 81.25" (2,064 mm)
•  Motor: SOLD SEPARATELY
•  Noise: 52 dB
•  Shipping weight: 3,350 lbs. (1,530 kg)
•  Shipping Dimensions: 144'' x 28'' x 30'' (3,657 mm x 711 mm x 762 mm)

*Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply
